N-Triphenylboryl- and N,N′-bis(triphenylboryl)benzo-2,1,3-telluradiazole†

Anthony F. Cozzolino , Alex D. Bain , Stephanie Hanhan and Ignacio Vargas-Baca *
Department of Chemistry, McMaster University, 1280 Main St. W., Hamilton, ON, Canada. E-mail: vargas@chemistry.mcmaster.ca; Fax: (905) 522-2509; Tel: (905) 525-9140 x23497

First published on 9th June 2009

---

---

Mono- and di-cations derived by formal N-alkylation of 1,2,5-chalcogenadiazolyl heterocycles are receiving increasing attention due to their intriguing structural and chemical properties. The dialkylated systems are regarded as a family of structural analogues of the N-heterocyclic carbene (NHC) imidazol-2-ylidene;^1,2 of which the Se member has been described as a “chalcogen dication sequestered by a chelating diimine”.² In spite of coulombic repulsion, the monoalkylated selenium³ and tellurium⁴ rings can form the dimers that are characteristic of the crystal structures of the parent heterocyles⁵ with even shorter secondary-bonding distances. The existence of such aggregates in solution has been proposed as an explanation for the singular redox behaviour of the N-methyl benzotelluradiazolylium cation, as compared to its lighter congeners, which prevented the observation of the corresponding neutral free radical by EPR.⁴

Compared to the parent neutral heterocycles, the study of the cations is probably complicated by electrostatic interactions, counterion binding and an enhanced sensitivity to water and nucleophiles in general. Therefore we chose to prepare neutral isoelectronic analogues by reacting benzo-2,1,3-telluradiazole (1) with Lewis acids. Both the 2 : 1 (2) and 1 : 1 (3) triphenylborane adducts were isolated when using the appropriate stoichiometry of reactants in toluene. The products were isolated in micro-crystalline form and fully characterized.†X-Ray diffraction quality crystals of 2 were grown from a 1 : 1 mixture of bromobenzene and acetonitrile while crystals of 3 were grown from toluene.‡

The crystal structure of 2 (Fig. 1) demonstrated attachment of the triphenylborane moiety to each nitrogen atom of the benzo-2,1,3-telluradiazole molecule. The structure approximates a C₂ symmetry, although it sits in a general position. Two of the phenyl rings hinder access to the chalcogen, preventing association to any Lewis bases. This would be the first example of a C₂N₂Te^II ring that does not appear to be associated to another heterocycle molecule, solvent, anion or donor atom in the solid state. However, the role of the aromatic ring might not be innocent. The N–B–C bond angle is significantly smaller for the rings next to the tellurium atom. These rings exhibit short distances from their centroids to Te (3.1188(2) and 3.1311(2) Å). Similar Te–aryl interactions have been examined by Zukerman-Schpector and Haiduc,⁶ but in 2 the distances from Te to the centroids of the rings are significantly below the value reported for the shortest contact of this type (3.482 Å).⁷ On closer inspection, the chalcogen is in contact (2.801(2) Å) with an atom of one ring while for the other ring the shortest distance (2.7925(2) Å) is to the centroid of a C–C bond. All these distances are shorter than the sum of Te and C van der Waals’ radii (3.76 Å).

The Te–N bond lengths of 2 are comparable to those observed in the ribbon polymer of 1 (2.003(7) Å)⁸ and dimers of 4,7-dibromobenzo-2,1,3-telluradiazole (1.988(8) unsolvated, 2.001(5) Å DMSO-solvated).⁸ The DFT optimized geometry of 2 reproduces all the major structural features.

The crystal structure of 3 (Fig. 2), modelled with 1.4% twinning resulting from 180° rotation about c, confirmed the binding of one borane molecule to each heterocycle. Because in this 1 : 1 adduct one of the nitrogen atoms and the chalcogen atom are capable of secondary bonding, the [Te–N]₂ supramolecular synthon renders a dimeric structure. Although 3₂ is centrosymmetric, its placement in a general position duplicates the metrical parameters. In this case the Te–N supramolecular contacts (2.591(9) and 2.580(8) Å) are ca. 0.1 Å shorter than those in the 4,7-dibromobenzo-2,1,3-telluradiazole dimer⁸ (2.697(8) Å) but almost 0.2 Å longer than in the analogous structure of the N-methylbenzotelluradiazolylium cation (2.471(3) Å).⁴ As in those cases, within each heterocycle, the Te–N bond opposite to the secondary interaction is significantly longer than the other. The structure of 3₂ also displays short distances from the heavy atoms to the aromatic rings (d_{Te–centroid(C–C)} = 2.9157(7), 2.9487(7) Å; d_{Te–centroid(Ph)} = 3.4108(7), 3.4179(8) Å) and the N–B–C angles are smaller for the phenyl ring that associates with the Te atom. The DFT optimized geometry of 3₂ reproduces all the major structural features.

Because the shorter secondary bonding distances suggest that the supramolecular interactions might be stronger in the borane adducts than in the parent heterocycles, the association energies were estimated from the DFT total bonding energies by considering the reaction enthalpies for eqn (1)–(5); the numbers include contributions from structural relaxation but not BSSE or ZPE, which are very small in closely related systems.⁸ The average B–N bond energy from eqn (1) to (2) (126.2 kJ mol⁻¹) is within the range of ab initio calculated binding energies for a number of simple Lewis base-borane adducts (59.8–230.8 kJ mol⁻¹).^9,10 The enthalpies of reactions (4) and (5) indicate that the secondary bonding interactions are indeed stronger in the borane adduct. This enhancement of binding energy was analyzed considering three contributions: the Pauli (steric) repulsive contribution that arises from the interaction of completely occupied orbitals, the electrostatic contribution that results from the local dipole moments, and the interaction of empty and occupied orbitals. The Pauli repulsion and the electrostatic interaction became more stabilizing by 57.6 and 25.4 kJ mol⁻¹, respectively, while the orbital interaction became less stabilizing by 74.5 kJ mol⁻¹. The net stabilization of the Te–N intermolecular interactions in 3₂ is therefore primarily the result of the charge redistribution.

1 + BPh3→3;  ΔH = −125.1 kJ mol−1	(1)

3 + BPh3→2;  ΔH = −123.5 kJ mol−1	(2)

12 + 2 BPh3→32;  ΔH = −259.8 kJ mol−1	(3)

1 + 1→12;  ΔH = −67.5 kJ mol−1	(4)

3 + 3→32;  ΔH = −75.9 kJ mol−1	(5)

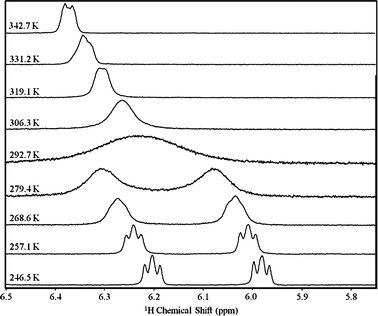

At room temperature, the ¹H NMR spectrum of 2 in solution displayed two resonances for the protons of the benzotelluradiazole moiety, as expected. The corresponding bands in the spectrum of 3₂ appeared as very broad peaks in CD₃C₆D₅, C₆D₆ and CD₂Cl₂; the presence of a dynamic exchange process was confirmed by VT experiments in d₈-toluene (Fig. 3).† While two resonances were clearly defined above 340 K, three bands were resolved below 250 K, the fourth was obscured by other aromatic resonances. Line shape analysis for the exchange of the protons in positions 4 and 7 of benzo-2,1,3-telluradiazole gave a concentration independent activation energy of 83 ± 9 kJ mol⁻¹. Although the magnitude of this activation barrier is comparable to the supramolecular association energy calculated for 3, the high-temperature ¹H NMR spectrum implies that the dynamic process includes fast shift of the BPh₃ moiety between the two nitrogen atoms. Such behaviour is observed in the 1 : 1 adduct of pyrazine and BPh₃, for which VT experiments gave an activation barrier of 78 ± 8 kJ mol⁻¹ and DFT calculations estimated an association energy of 102.1 kJ mol⁻¹. These observations suggest that the VT ¹H NMR spectrum of 3₂ does not reflect the simple dissociation of the dimer and that dissociation of the B–N bond is the most important, if not the only, contribution to the activation barrier.

The ¹²⁵Te resonance shifted to lower frequencies upon attachment of each BPh₃ molecule; from 2401 ppm in 1§ to 2203 ppm in 3₂, and 2188 ppm in 2. A similar trend was observed for the resonances of the benzo protons, extrapolated to 306.3 K. Atomic charges were calculated in order to examine the influence of the Lewis acid on the electron density as a possible explanation for this trend. Mulliken and Natural Population (NPA) analyses, Hirschfeld and Atoms-In-Molecules (AIM) charges, and the Voronoi Deformation Densities (VDD) were evaluated under the PW91 GGA and the B3LYP hybrid exchange–correlation functionals with the DZ, DZP, TZP and TZ2P basis sets and the ZORA relativistic correction. As it is often the case,^11,12 the Mulliken, AIM and NPA charges were inconsistent across basis sets and functionals, precluding a meaningful interpretation. Density-based charges (Hirschfeld and VDD) were less dependent on the basis set and functional; Table 1 summarizes these results. While the dimerization of 1 and 3 causes minimal changes to the charges, formation of the B–N bond has a more significant influence. The most significant increases of positive charge are located at the tellurium atom and the benzo moiety. The positive charge on boron decreases and the phenyl rings acquire a more negative charge; this change is less pronounced on the aromatic ring which is in contact with the chalcogen. Consequently, the observed changes of ¹H and ¹²⁵Te chemical shifts upon borane coordination are probably due to depletion of π electron density on the benzo ring and the anisotropic shielding of tellurium by the phenyl rings.

---

While these investigations showed that attachment of a Lewis acid to one of the nitrogen atoms of the telluradiazole ring results in stronger secondary bonding interactions (assessed from experimental distances and calculated dimerization energies), there was no direct evidence of the existence of dimers in solution. On the other hand, the structures of 2 and 3₂ invite further research into the use of Lewis acid coordination as a means to control the association of chalcogenadiazoles and related heterocycles and to introduce functionality to their supramolecular structures.

We gratefully acknowledge the financial support of the Natural Sciences and Engineering Research Council of Canada for the Discovery Grant (IVB) and the PGSD Scholarship which supported these investigations. This work was made possible by the facilities of the Shared Hierarchical Academic Research Computing Network (SHARCNET: http://www.sharcnet.ca).
