Exchange coupling and magnetic blocking in dilanthanide complexes bridged by the multi-electron redox-active ligand 2,3,5,6-tetra(2-pyridyl)pyrazine†

Selvan Demir , Michael Nippe , Miguel I. Gonzalez and Jeffrey R. Long *
Department of Chemistry, University of California, Berkeley, California 94720, USA. E-mail: jrlong@berkeley.edu

First published on 26th August 2014

---

---

Introduction

Molecules classified as single-molecule magnets exhibit slow magnetic relaxation due to a barrier to spin inversion. If no fast tunneling is apparent, this barrier can lead to magnetic hysteresis at low temperatures that is of a molecular origin, as first discovered in Mn₁₂O₁₂(O₂CCH₃)₁₆(H₂O)₄.¹ Complexes possessing these properties may represent potential media for high-density information storage,² quantum computing,³ and molecular spintronics.⁴ However, realization of these proposed applications requires the design of molecules featuring substantially larger barriers to spin inversion. As a consequence, considerable efforts have been made to synthesize and analyze new molecular species, in search of a better understanding of the intriguing phenomena associated with single-molecule magnet behavior.

Recent developments suggest that key factors in designing single-molecule magnets are maintaining rigorous axial symmetry within the molecule⁵ or creating an exchange-bias through magnetic coupling.⁶ The symmetry criterion becomes especially crucial when non-Kramers ions are employed, which better enables a bistable ground state. More importantly, exchange-biased systems resulting from magnetic coupling could provide the possibility to control the magnitude of the spin-reversal barrier as a function of the strength of the coupling.⁷ For instance, over the past decades, the magnetic coupling, J, has been determined in numerous radical-containing mono- and multi-nuclear transition metal and lanthanide complexes, where the sign and strength of the coupling are governed by the nature of the radical ligand and metal center. A variety of radical species such as nitronyl nitroxide, verdazyl, thiazyl, benzosemiquinonoid, and nindigo have been employed for this purpose and in some instances single-molecule magnet behaviour of the corresponding complexes have been reported.^8,9

Quite recently, a dinuclear lanthanide complex featuring a N₂³⁻ radical-bridge was found to be the hardest molecular magnet to date, {[((Me₃Si)₂N)₂Tb(THF)]₂(μ-η²:η²-N₂)}⁻ owing to the strong coupling between the radical ligand and the metal ions.^6a In fact, the coupling constant of J = −27 cm⁻¹ determined for the Gd^III congener represents the strongest coupling yet reported for that ion.¹⁰ This remarkable finding serves as an inspiration to explore other radical-bridged systems in order to achieve a similar effect.

In particular, organic radical ligands pose an intriguing possibility for attaining further insight into the coupling that is occurring in dilanthanide complexes, since these can potentially be tuned and/or may allow for the design of multinuclear cluster complexes. Accordingly, bipyrimidyl radical-bridged dilanthanide complexes of the type [(Cp*₂Ln)₂(μ-bpym˙)]⁺ (Ln = Tb, Dy) were similarly found to exhibit slow magnetic relaxation dynamics arising from the presence of strong exchange coupling, as evident in the value of J = −10 cm⁻¹ obtained for the respective Gd^III species.¹¹ Studies on both types of radical-bridged complexes raised the question of how the particular charge on the radical ligand affects the strength of the coupling and hence the magnitude of the relaxation barrier. As a result, efforts have been made to search for multi-electron redox-active ligands bearing well-established bridging capabilities and comparatively evaluate the magnetic properties of dinuclear lanthanide complexes with bridging-radical species of various charges. Recognizing its ability to accept multiple electrons,¹² we pursued the use of the bridging non-planar bis-tridentate ligand 2,3,5,6-tetra(2-pyridyl)-pyrazine (tppz), in the synthesis of dilanthanide complexes.

In this report, we describe the syntheses, structural characterization and magnetic properties of the salts of six new radical-bridged dilanthanide complexes, [(Cp*₂Ln)₂(μ-tppz˙)](BPh₄) (Cp* = pentamethylcyclopentadienyl; Ln = Gd, 1; Tb, 2; Dy, 3) and [K(crypt-222)][(Cp*₂Ln)₂(μ-tppz˙)] (Ln = Gd, 4; Tb, 5; Dy, 6), where 1–3 contain tppz˙⁻ and 4–6 contain tppz˙³⁻. The synthetic routes to obtain the above compounds utilize well-known precursor molecules of the type Cp*₂Ln(BPh₄).¹³ These mononuclear synthons have previously been employed in the isolation of a phenazine radical-bridged yttrium complex.¹⁴ Recently, Cp*₂Ln(BPh₄) where Ln = Tb, Dy have been found to be single-molecule magnets featuring large spin relaxation barriers.¹⁵ Herein, we report the series of complexes employing the tppz ligand as a rare example of isolable radical ligands in two different oxidation states^8c,16 This work constitutes a complete magnetic study of dilanthanide complexes bearing radical bridges in two different oxidation states.

Experimental section

The manipulations described below were performed under nitrogen with rigorous exclusion of air and water using Schlenk, vacuum line, and glovebox techniques. Solvents were dried using a commercial solvent purification system from jcmeyer-solvent systems.¹⁷ 1,2,3,4-Pentamethylcyclopentadiene (Cp*H) was purchased from Strem and dried over 4 Å sieves before use. Anhydrous LnCl₃ (Ln = Gd, Tb, Dy) was purchased from Strem and used as received. Potassium bis(trimethylsilyl)amide, KN[Si(CH₃)₃]₂, was purchased from Aldrich, dissolved in toluene, filtered through Celite and recrystallized from toluene at −35 °C before use. Tppz was purchased from Aldrich and dried under vacuum for 2 days before use. 4,7,13,16,21,24-Hexaoxa-1,10-diazabicyclo[8.8.8]-hexacosane (2.2.2-cryptand; here abbreviated as crypt-222) was purchased from TCI America and used as received. The compounds KCp*,¹⁸ [HNEt₃][BPh₄],¹⁹ KC₈,²⁰ and Cp*₂Ln(BPh₄) where Ln = Gd,^13b Tb,¹¹ Dy¹¹ were prepared according to literature procedures. For the synthesis of the [(Cp*₂Ln)₂(μ-tppz˙)](BPh₄) compounds, crystals of the lanthanide tetraphenylborate salts of the formula Cp*₂Ln(BPh₄)·C₇H₈ were used. Elemental analyses were performed by the Microanalytical Laboratory at the University of California, Berkeley, using a Perkin-Elmer Series 2400 Series II combustion analyzer. All polycrystalline samples of 1–6 were crushed and dried prior to analyses. IR spectra were recorded on a Perkin-Elmer Avatar Spectrum 400 FTIR Spectrometer equipped with ATR. Cyclic voltammograms were recorded using a BASi CV-50W potentiostat and a three electrode setup, with glassy carbon disk (working), Ag wire (pseudo-reference), and Pt wire (auxiliary) electrodes. The ferrocene/ferrocenium redox couple was used as an internal standard. Magnetic susceptibility measurements were collected using a Quantum Design MPMSXL SQUID magnetometer.

Magnetic measurements

Samples of 1–3 and 4–6 were briefly dried, crushed, and loaded into 7 mm diameter quartz tubes under eicosane restraint. Sufficient solid eicosane was added to cover the samples to prevent crystallite torqueing and provide good thermal contact between the sample and the cyrogenic bath. The quartz tubes were fitted with sealable adapters, evacuated on a Schlenk line or using a glovebox vacuum pump, and flame sealed under vacuum using a H₂/O₂ flame. Subsequently, the eicosane was melted at 50 °C using a water bath and then cooled to room temperature.

Direct current (dc) magnetic susceptibility data measurements were performed at temperatures ranging from 2 to 300 K for 1–6, using applied fields of 1000 Oe. Dc susceptibility data measurements for 1 and 4 were additionally performed at 500, 5000, and 10000 Oe. Alternating current (ac) magnetic susceptibility measurements were performed using a 4 Oe switching field. All data were corrected for diamagnetic contributions from the eicosane and core diamagnetism estimated using Pascal's constants.²¹ Cole–Cole plots were fitted using formulae describing χ′ and χ′′ in terms of frequency, constant temperature susceptibility (χ_T), adiabatic susceptibility (χ_S), relaxation time (τ), and a variable representing the distribution of relaxation times (α).^1c All data were fitted to α values of ≤0.09.

[(Cp*₂Gd)₂(μ-tppz˙)](BPh₄) (1)

In a nitrogen-filled glovebox, Cp*₂Gd(BPh₄)·C₇H₈ (0.188 g, 0.224 mmol) was dissolved in THF (14 mL) to afford a pale yellow solution, to which a THF (1 mL) solution of tetra-2-pyridinylpyrazine (0.0435 g, 0.112 mmol) was slowly added. An immediate color change to bright red was observed. The mixture was stirred for 5 min at room temperature. Potassium graphite (0.0151 g, 0.122 mmol) was then added all at once to the reaction mixture, whereupon the solution color turned to dark red-brown. After 45 min of stirring at room temperature, black and colorless insoluble materials were removed by filtration. The solution was reduced to dryness under vacuum to afford a dark red-brown solid. Slow evaporation of THF solutions (4 mL) at room temperature afforded dark red crystals (0.105 g, 60%) suitable for X-ray analysis within 3 days. To obtain an analytically pure form of compound 1, the crystals were recrystallized twice in the same manner as described above. 1 crystallized with 4 THF molecules. IR (neat, cm⁻¹): 3051w, 3030w, 2965w, 2892m, 2852m, 1587s, 1559w, 1546w, 1460s, 1443s, 1424s, 1398m, 1374m, 1363m, 1316s, 1290m, 1282m, 1271m, 1247m, 1183w, 1155s, 1058m, 1032w, 1015w, 989s, 907w, 842w, 787m, 778m, 730s, 701vs, 669m, 636m, 624w, 610s. Anal. calcd for C₈₈H₉₆BN₆Gd₂: C, 67.62%; H, 6.19%; N, 5.38%. Found: C, 67.65%; H, 5.92%; N, 5.33%.

[(Cp*₂Tb)₂(μ-tppz˙)](BPh₄) (2)

Following the procedure for 1, Cp*₂Tb(BPh₄)·C₇H₈ (0.241 g, 0.287 mmol) was dissolved in 15 mL of THF to afford a pale yellow solution, to which a THF (1 mL) solution of tetra-2-pyridinylpyrazine (0.0557 g, 0.143 mmol) was slowly added. An immediate color change to bright red was observed. The mixture was stirred for 5 min at room temperature. Subsequently, potassium graphite (0.0194 g, 0.143 mmol) was added all at once to the reaction mixture, whereupon the solution color turned to dark red. After 45 min of stirring at room temperature, black and colorless insoluble materials were removed by filtration. The solution was evacuated to dryness to afford a dark red-brown solid. Slow evaporation of THF solutions (4 mL) at room temperature afforded dark red crystals (0.056 g, 54%) suitable for X-ray analysis after 3 days. To obtain an analytically pure form of compound 2, the crystals were recrystallized twice in the same manner as described above. 2 crystallized with 3 THF molecules. IR (neat, cm⁻¹): 3056w, 3008w, 2978w, 2918m, 2892m, 2853m, 1587s, 1559w, 1544w, 1473s, 1460s, 1441s, 1423s, 1372s, 1363s, 1314m, 1279m, 1245w, 1221w, 1183w, 1155s, 1129w, 1155s, 1129w, 1105w, 1088w, 1058w, 1034w, 1019w, 989s, 916w, 875w, 841w, 781m, 740s, 729s, 701vs, 667m, 639m, 624s. Anal. calcd for C₈₈H₉₆BN₆Tb₂: C, 67.48%; H, 6.18%; N, 5.37%. Found: C, 67.81%; H, 6.17%; N, 4.90%.

[(Cp*₂Dy)₂(μ-tppz˙)](BPh₄) (3)

Following the procedure for 1, Cp*₂Dy(BPh₄)·C₇H₈ (0.115 g, 0.136 mmol) was dissolved in THF (10 mL) to afford a pale yellow solution, to which a THF (1 mL) solution of tetra-2-pyridinylpyrazine (0.026 g, 0.068 mmol) was slowly added. An immediate color change to bright red was observed. The mixture was stirred for 5 min at room temperature. Subsequently, potassium graphite (0.0092 g, 0.068 mmol) was added all at once to the reaction mixture, whereupon the solution color turned to dark red. After 45 min of stirring at room temperature, black and colorless insoluble materials were removed by filtration. The solution was evacuated to dryness to afford a dark red-brown solid. Slow evaporation of THF solutions (4 mL) at room temperature afforded dark red crystals (0.051 g, 48%) suitable for X-ray analysis after 3 days. To obtain analytically pure compound 3, the grown crystals were recrystallized twice in the same manner as described above. 3 crystallized with 3 THF molecules. IR (neat, cm⁻¹): 3054w, 3036w, 2968w, 2898m, 2853m, 1587s, 1559w, 1547w, 1459s, 1443s, 1426s, 1375s, 1365s, 1318m, 1283m, 1249m, 1183w, 1156s, 1059m, 1030w, 1019w, 991s, 907w, 843w, 780m, 742s, 729s, 702vs, 672w, 663w, 638w, 612s, 600s. Anal. Calcd for C₈₈H₉₆BN₆Dy₂: C, 67.17%; H, 6.15%; N, 5.34%. Found: C, 67.06%; H, 6.30%; N, 5.01%.

[K(crypt-222)][(Cp*₂Gd)₂(μ-tppz˙)] (4)

In a nitrogen-filled glovebox, crystals of [(Cp*₂Gd)₂(μ-tppz˙)](BPh₄) (0.11 g, 0.070 mmol) were dissolved in THF (15 mL) to yield a dark red solution. Solid KC₈ (0.019 g, 0.14 mmol) was added all at once, whereupon the color of the solution turned to dark purple. The mixture was stirred at room temperature for 1 h. Then the solution was filtered to remove insoluble solids. The dark-purple solution was evacuated to dryness and then washed with hexanes (5 mL). The solid was dissolved in minimum amount of THF. Subsequently, crypt-222 (0.026 g, 0.070 mmol), dissolved in THF (1 mL) was added to the mixture. After filtration, the filtrate was stored at −35 °C to yield dark purple crystals suitable for X-ray analysis (crystalline yield: 0.086 g, 77%). To obtain an analytically pure form of compound 4, the crystals were washed twice with a minimum amount of cold THF (∼0.5 mL). IR (neat, cm⁻¹): 3144w, 3051w, 2956w, 2875m, 2843w, 2715w, 2526w, 1570m, 1454m, 1419s, 1399s, 1353s, 1329s, 1276s, 1252s, 1171m, 1130s, 1101s, 1069s, 1035m, 939vs, 860s, 819m, 748m, 718m, 643s, 626s. Anal. calcd for C₈₂H₁₁₂Gd₂KN₈O₆: C, 59.35%; H, 6.80%; N, 6.75%. Found: C, 59.63%; H, 6.62%; N, 6.53%.

[K(crypt-222)][(Cp*₂Tb)₂(μ-tppz˙)] (5)

Following the procedure for 4, crystals of [(Cp*₂Tb)₂(μ-tppz˙)](BPh₄) (0.053 g, 0.034 mmol) were dissolved in THF (10 mL) to afford a dark red solution. KC₈ (0.009 g, 0.068 mmol) was added at once whereby the color of the solution turned to dark purple. The mixture was stirred at room temperature for 1 h. Then the solution was filtered to remove insoluble solids. The dark-purple solution was pumped down and then washed with hexanes (5 mL). The solid was dissolved in minimum amount of THF. Subsequently, crypt-222 (0.013 g, 0.034 mmol), dissolved in THF (1 mL) was added to the mixture. After filtration, the filtrate was stored at −35 °C to yield dark purple crystals suitable for X-ray analysis (crystalline yield: 0.041 g, 73%). To obtain analytically pure compound 5, the crystals were washed twice with minimum amount of cold THF (∼0.5 mL). IR (neat, cm⁻¹): 3120w, 3053w, 2956w, 2878s, 2811m, 2724w, 2529w, 1579m, 1457s, 1441s, 1423s, 1402s, 1353s, 1296s, 1257s, 1174w, 1132s, 1097vs, 1079s, 1032s, 946vs, 862w, 829m, 747s, 730s, 703s, 677w, 646m, 624m. Anal. calcd for C₈₂H₁₁₂Tb₂KN₈O₆: C, 59.23%; H, 6.79%; N, 6.74%. Found: C, 59.20%; H, 6.61%; N, 6.82%.

[K(crypt-222)][(Cp*₂Dy)₂(μ-tppz˙)] (6)

Following the procedure for 4, [(Cp*₂Dy)₂(μ-tppz˙)](BPh₄) (0.064 g, 0.041 mmol) was dissolved in THF (10 mL) to yield a dark red solution. KC₈ (0.011 g, 0.081 mmol) was added at once whereby the color of the solution turned to dark purple. The mixture was stirred at room temperature for 1 h. Then the solution was filtered to remove insoluble solids. The dark-purple solution was pumped down and then washed with hexanes (5 mL). The solid was dissolved in minimum amount of THF. Subsequently, crypt-222 (0.015 g, 0.041 mmol), dissolved in THF (1 mL) was added to the mixture. After filtration, the filtrate was stored at −35 °C to yield dark purple crystals suitable for X-ray analysis (crystalline yield: 0.051 g, 75%). To obtain analytically pure compound 6, the crystals were washed twice with minimum amount of cold THF (∼0.5 mL). 6 crystallized with 7 THF molecules. IR (neat, cm⁻¹): 3137w, 3058w, 2956w, 2879m, 2846m, 2719w, 2533w, 1573m, 1455m, 1423s, 1402s, 1353s, 1335s, 1292s, 1281s, 1257m, 1171w, 1132s, 1103s, 1076m, 1037m, 946vs, 867m, 817w, 748w, 729w, 678w, 647m, 629m. Anal. calcd for C₈₂H₁₁₂Dy₂KN₈O₆: C, 58.98%; H, 6.76%; N, 6.71%. Found: C, 59.03%; H, 6.63%; N, 6.69%.

X-ray data collection and structure determinations

Data collections were performed on single crystals coated with Paratone-N oil and mounted on Kaptan loops. The crystals were frozen under a stream of N₂ (100 K) during measurements. Data for compounds 1–3 were collected using a Bruker APEX-II QUAZAR diffractometer (NIH Shared Instrumentation Grant S10-RR027172) equipped with a Microfocus Sealed Source (Incoatec ImS; Mo-Kα λ = 0.71073 Å) and APEX-II detector. For 6, data were collected at Beamline 11.3.1 at the Advanced Light Source, Lawrence Berkeley National Laboratory using synchrotron radiation (λ = 0.77490 Å) through a combination of 4° phi and 1° omega scans. A Bruker PHOTON100 CMOS diffractometer was used for data collection, and the corresponding Bruker AXS APEX II software was used for data collection and reduction.²² Absorption corrections were applied using SADABS (for 1, 2, 6) or TWINABS (for 3).²³ Spacegroup assignments were determined by examination of systematic absences, E-statistics, and successive refinement of the structures. Structures were solved using direct methods and refined by least-squares refinement on F² followed by difference Fourier synthesis.²⁴ All hydrogen atoms were included in the final structure factor calculation at idealized positions and were allowed to ride on the neighboring atoms with relative isotropic displacement coefficients. Thermal parameters were refined anisotropically for most non-hydrogen atoms. Crystallographic data for 1, 2, 3, and 6 are given in Table S2.† The structure data for 6 was refined as an inversion twin (BASF = 0.451(14)). Significant disorder of two of the Cp* ligands, the [(crypt-222)K]⁺ counter ion, and the THF molecules required distance and displacement parameter restraints. Despite the restraints used to model the disorder, a few A and B alerts were still reported by checkcif. Significant changes to our disorder model did not alter the geometry of the [(Cp*₂Dy)₂(μ-tppz˙)]⁻ unit. Unfortunately, crystals obtained for 4 and 5 were consistently of low quality (weak overall diffraction) and suffered from disorder of the Cp* ligands and the crypt-222 ligand of the counter ion. While the molecular connectivity and overall charge balance could be established, no data set of publishable quality could be obtained.²⁵

Computations

Unrestricted DFT calculations were performed using the Gaussian 09 program suite.²⁶ Geometry optimizations of theoretical model compounds [(Cp₂Y)₂(μ-tppz˙)]⁺ (MC1) and [(Cp₂Y)₂(μ-tppz˙)]⁻ (MC2) were performed using both pure DFT functional bvp86 (ref. 27) (3-21G²⁸ basis sets for C, H, N and effective core potential ECP28MDF_AVDZ²⁹ for Y) and hybrid functional b3pw91 (ref. 30) (6-31G**³¹ basis sets for C, H, N and ECP28MDF_AVDZ for Y). The input coordinates for the dinuclear model complexes MC1 and MC2 were taken from the crystal structure of compound 3. All stationary points were fully characterized via analytical frequency calculations to confirm the minima (all positive eigenvalues). All energies are corrected for zero-point energy, while free energies are quoted at 298.15 K and 1 atm.

Results and discussion

Syntheses, structures, and electrochemistry

The radical-bridged dilanthanide compounds 1–3 were synthesized in THF by treating Cp*₂Ln(BPh₄) (Ln = Gd, Tb, Dy) with tppz followed by reduction with KC₈ of the resulting product (see Fig. 1). Slow evaporation of THF solutions at room temperature afforded single crystals suitable for X-ray analysis. Compounds 1–3 are isostructural, each exhibiting a dilanthanide complex that comprises two crystallographically independent metal centers (Fig. 1 (3), S1, and S2†). Each Ln^III center is nine-coordinate with two Cp* ligands and ligation by two pyridyl N_py atoms and one central pyrazine N_pz atom from the twisted central pyrazine ring of the bridging tppz˙⁻ ligand. Selected interatomic distances (Å) and angles (deg) for 1–3 are provided in the caption for Fig. 1.

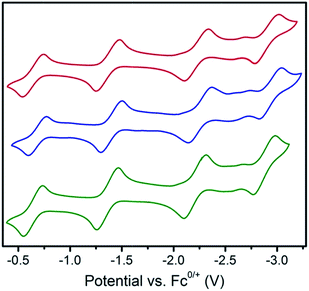

Cyclic voltammograms of compounds 1–3 (Fig. 2) indicate that dinuclear complexes with tppz in five oxidation states (tppz^{0/1−/2−/3−/4−}) can be obtained on the time scale of the electrochemical experiment. The individual tppz reduction potentials (Table S1†) show very little sensitivity to the nature of the Ln ion employed. In light of the electrochemical results, compounds 1–3 were treated with two equivalents of KC₈ in THF followed by addition of 2.2.2-cryptand (crypt-222), which enabled the isolation of compounds [K(crypt-222)][(Cp*₂Ln)₂(μ-ttpz˙)] (4–6), Fig. 1. Crystalline material was obtained from concentrated THF solutions at −35 °C. Each metal ion is nine-coordinate with two Cp* rings and three nitrogen atoms of a bridging tppz˙³⁻ ligand attached (Fig. 1 and S3†). Unfortunately, only lower quality X-ray diffraction data sets could be obtained for 4 and 5 which prevents an in-depth discussion of the geometric parameters at this point.²⁵ High-quality XRD data for 6 could be obtained therefore enabling comparisons of bond lengths and angles to those in compound 3.

Two-electron reduction of 3 to form 6 is reflected in the significantly shortened Dy–N_pz bond distance of 2.385(9) Å from 2.469(3) Å in 3. The decrease of the Dy–N_pz bond distances by approximately 0.1 Å can be explained by a stronger interaction of the metal centers with the triply-charged bridging radical ligand. Consequently, the Dy⋯Dy distance decreases to 7.60 from 7.71 Å found in 3. The C–C and C–N bond distances within the central pyrazine ring do not change significantly upon two-electron reduction of the ligand. However, a slight shortening of the four C–C bonds, 1.423(13) Å average, that link the four pyridyl substituents compared to 1.464(6) Å average in 3 is likely responsible for the decrease of twisting within the tppz unit where dihedral angles of 14.638° in 6 compared to 16.443° in 3 are observed. The dihedral angle is measured between the two planes formed by the two C–N–C units of the central pyrazine ring.

Static magnetic susceptibility behavior

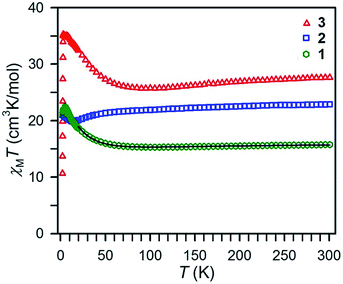

Variable-temperature dc magnetic susceptibility data were collected on samples of compounds 1–3 in the temperature range 2–300 K (Fig. 3 and S4†). At 300 K, the χ_MT values for compounds 1, 2, and 3 are 15.76, 22.89 and 27.62 cm³ K mol⁻¹, slightly lower than the expected values for two non-interacting lanthanide ions and a radical spin unit (16.13, 24.00 and 28.71 cm³ K mol⁻¹, respectively). With decreasing temperature, a slight decline in χ_MT occurs, leading to a shallow minimum at 105, 13, and 95 K, respectively, for 1, 2, and 3 (see Fig. S5†). Below the minimum, a substantial rise in χ_MT is apparent for 1 and 3, indicative of a high angular momentum ground state generated by antiferromagnetic coupling between the radical bridging unit and the metal ions. In contrast, only a very slight rise in χ_MT is observed for the Tb congener 2. At the very lowest temperatures measured, χ_MT gradually declines for 1 to a value of 21.12 cm³ K mol⁻¹, slightly increases for 2 to 21.03 cm³ K mol⁻¹, but precipitously drops for 3 to reach 10.67 cm³ K mol⁻¹. The sudden decrease in χ_MT for 3 at low temperatures is indicative of magnetic blocking, as observed for other anisotropic molecular magnets.^{6a,10,11,32,33} Indeed, field- and zero-field-cooled magnetic susceptibility measurements performed on 3 reveal a sharp divergence at 2.8 K (Fig. 4), confirming this assignment.

For the majority of multinuclear lanthanide-containing complexes, the accurate assignment of the strength and sign of the exchange coupling constant (J) is difficult due to the intricate electronic structures of the individual lanthanide ions. By contrast, the metal centers in Gd^III complexes featuring a 4f⁷ electron configuration with S = 7/2 are suitable for studying magnetic exchange coupling owing to their spin-only behavior, which is free from the effects of spin–orbit coupling. Correspondingly, the χ_MT data for 1 were fit employing a spin-only Hamiltonian Ĥ = −2JŜ_rad(Ŝ_Gd(1) + Ŝ_Gd(2)), which accounts for the intramolecular Gd^III-radical exchange coupling, as expressed by the constant J, representing the coupling, with Ŝ_i representing the spin operators for each paramagnetic center. At very low temperatures, the slight downturn in χ_MT can be ascribed to the Zeeman effect rather than to long-range antiferromagnetic interactions, as was determined from variable-field variable temperature magnetic susceptibility data (Fig. S6†). In view of this effect making a substantial contribution below 20 K, only data collected above that temperature were fitted. The best fit to the data revealed parameters of J = −6.91(4) cm⁻¹, indicating antiferromagnetic coupling between the Gd^III centers and the radical bridge to yield a S = 13/2 ground state. This determined J value is quite large in magnitude when compared to typical values of exchange constants of less than 3 cm⁻¹ found for Gd^III complexes.³⁴ For comparison, the compounds [(Tp)₂Gd(dtbsq)] (Tp⁻ = hydrotris(pyrazolylborate); dtbsq⁻ = 3,5-di-tert-butylsemiquinonato) and [L¹CuCl₂Gd(H₂O)₄]Cl (L¹H₂ = 1,3-bis((3-methoxy-salicylidene)amino)-2,2′-dimethylpropane) feature slightly lower J values of 5 and 6 cm⁻¹, respectively.^35,36 However, the J value of −6.91(4) cm⁻¹ is smaller when directly compared to the constants of −27 cm⁻¹ and −10 cm⁻¹ found in radical-exchange coupled dilanthanide systems with N₂³˙⁻ and bpym¹˙⁻ radical bridges, respectively. The considerably weaker exchange coupling observed for 1 might be a consequence of the more delocalized nature of the radical spin over the extended π* system of the tppz˙⁻ ligand, as discussed below. However, the strength of the coupling in 1 still suggests that likewise for this type of radical, the diffuse spin orbital of tppz˙⁻ can engender a substantial effective exchange pathway, despite the highly contracted nature of the Gd^III 4f orbitals. A similar progression in the variable-temperature dc magnetic susceptibility data for 3 also suggests the presence of significant exchange coupling between the lanthanide ions and the bridging radical ligand.

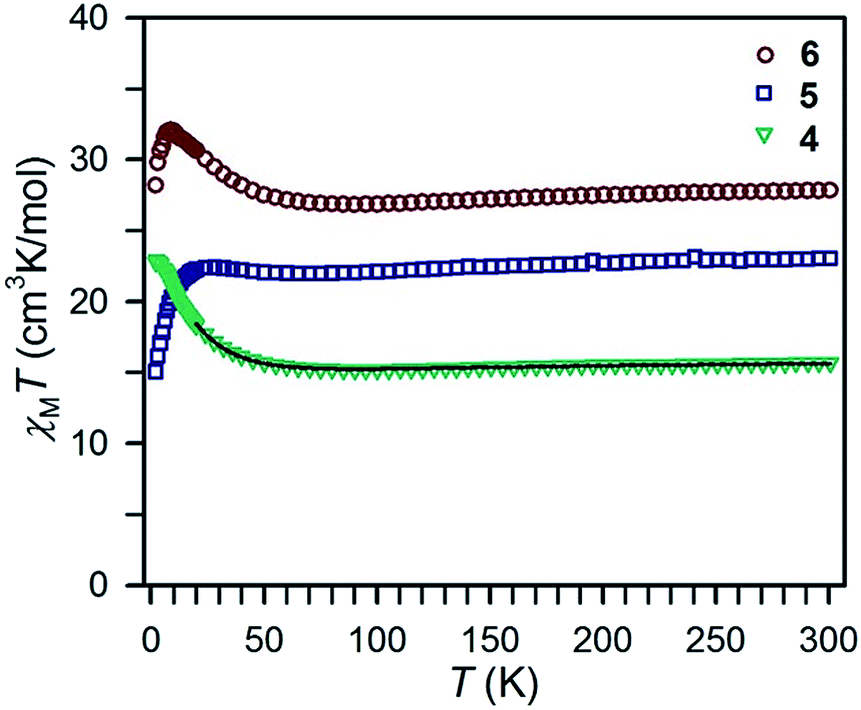

Variable-temperature direct current magnetic susceptibility data were also collected for samples of compounds 4–6 in the temperature range 2–300 K (Fig. 5). Here again, the χ_MT values at 300 K (15.70, 23.04, and 27.82 cm³ K mol⁻¹, respectively) are lower than the expected values for two non-interacting lanthanide ions and the radical ligand. As the temperature decreases, χ_MT drops slightly and reaches a shallow minimum at 95, 70, and 90 K for 4–6, respectively (Fig. S7†). Subsequently, an increase in χ_MT occurs, implicating a high angular momentum ground state stemming from antiferromagnetic coupling between the bridging tppz˙³⁻ radical ligand and the lanthanide ions. In the very lowest temperature regime, χ_MT gradually decreases for compounds 4–6, albeit only very slightly for compound 4. Hence, the low-temperature behavior of the χ_MT data for the Tb and Dy complexes is in contrast to the dc magnetic susceptibility data obtained for compounds 2 and 3, while the data for Gd complex 4 is comparable to that obtained for 1. According to the collected variable-field variable-temperature magnetic susceptibility data for 4 (Fig. S8†), the less pronounced downturn compared to 1 at low temperatures can be likewise assigned to the Zeeman effect which has merely a considerable influence below 20 K. Hence, only data points above that temperature were considered for the fit. Employing the same Hamiltonian as before afforded a coupling constant of J = −6.29(3) cm⁻¹. We note that this result is contrary to our initial expectation that the increased negative charge associated with the tppz˙³⁻ radical bridge relative to tppz˙⁻ would lead to significantly stronger exchange coupling.

Interestingly, despite the very similar strengths of the coupling constants observed for 1 and 4, the χ_MT data collected for the Tb and Dy compounds 2 and 3versus5 and 6 differ significantly. Here, the larger variations with temperature observed for the former species suggest that these may be substantially more strongly coupled systems.

Electronic structure calculations

In a first effort to explain these results we employed unrestricted DFT calculations to assess the gas-phase electronic ground states of the hypothetical model complexes [(Cp₂Y)₂(μ-(tppz)]⁺ (MC1) and [(Cp₂Y)₂(μ-tppz)]⁻ (MC2). For MC2, we found that a doublet ground state is generally lower in energy than the nearest quartet state by 9.4 (ΔG = 9.5 kcal mol⁻¹) or 4.7 (ΔG = 4.8 kcal mol⁻¹) kcal mol⁻¹ using the pure DFT functional bvp86 or hybrid functional b3pw91, respectively. Depictions of the singly-occupied molecular orbitals (SOMOs) for MC1 and MC2 are provided in Fig. 6.

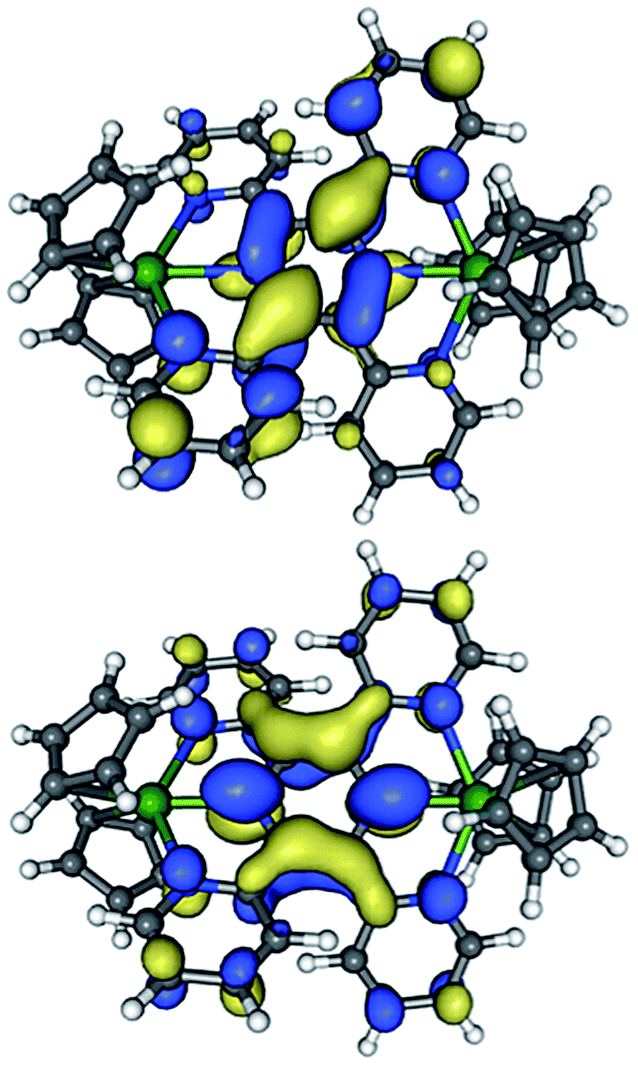

The unpaired spin of the tppz˙⁻ bridging ligand in MC1 is distributed over the central pyrazine and two diagonally opposing pyridine moieties, and resembles the anticipated contributions of a distorted 2,5-dipyridylpyrazine radical anion. The more diffuse nature of this orbital is likely the reason for the weaker exchange coupling in 1 as compared to its bpym˙⁻-bridged analogue. The Ln^III centers have close contact with the N_pz atoms, for which this orbital shows π bonding character with respect to one N_pz–C bond each. Finally, we note that all of the π bonding interactions of the SOMO are tilted diagonally relative to the Ln⋯Ln axis.

In contrast, the SOMO for tppz˙³⁻ in MC2, which is mostly localized on the central pyrazine unit, features nodal planes that bisect opposing pairs of N_pz–C bonds, leading to a more even distribution of orbital character amongst the four outer pyridine rings. Most of the intraligand π bonding interactions are centered between C atoms of the pyrazine unit and are oriented parallel to the Ln⋯Ln axis. We note that the overall N atom contributions to the SOMOs are comparable in MC1 and MC2, which, neglecting the aforementioned differences in symmetry, is consistent with the similar magnitudes for the exchange coupling observed in 1 and 4. Although no definite conclusions can be drawn from these results, the relative symmetry of the electron/spin containing ligand based orbitals could be of importance for the magnetic coupling of anisotropic Ln^III centers and may further contribute to the absence of slow magnetic relaxation for tppz³⁻ bridged complexes 5 and 6, as discussed below.

Dynamic magnetic properties

Owing to the large magnetic anisotropy inherent to Tb^III and Dy^III centers, it was expected that the respective Tb and Dy complexes would display slow magnetic relaxation. To probe the relaxation dynamics, variable-frequency variable-temperature in-phase (χ_M′) and out-of-phase (χ_M′′) ac magnetic susceptibility data were collected for polycrystalline samples of 2, 3, 5 and 6 under a 4 Oe ac field at zero applied dc field. At 1.8 K and ac frequencies in the range of 1 to 1488 Hz, the Tb compound 2 exhibits a peak maximum in χ_M′′ at ∼345 Hz that shifts to higher frequencies as the temperature is raised, until it moves beyond the high-frequency limit of the magnetometer at 2.45 K (Fig. 7 and S9†).

In contrast, Dy compound 3 features a temperature sensitive χ_M′′ peak maximum (under zero dc field) that can be observed up to 8 K in the 0.1 to 1488 Hz frequency range (Fig. 8).

Surprisingly, when Tb complex 5 and Dy complex 6 were subjected to ac fields at similar frequencies, no out-of-phase signals at zero or applied dc fields (of up to 4000 Oe) could be identified. This unanticipated result countered our initial expectation that the trianionic tppz˙³⁻ radical-bridged dilanthanide complexes would give rise to stronger magnetic exchange and hence also exhibit slower magnetic relaxation. Similarities in the coordination geometries of 1–6 to Cp*₂Ln(BPh₄),¹⁵ and [Cp′₂Dy(μ-SSiPh₃)]₂,³⁷ suggest comparable orientations of the magnetic anisotropy axes relative to the Cp* ligands in all species. If true, the interactions of the tppz˙³⁻ and tppz˙¹⁻ ligands with the Ln ions occur nearly coincident with the hard plane. Here, non-zero interactions are expected to contribute to spin reversal mechanisms that undercut the maximal barrier height. Thus, the lack of slow magnetic relaxation in 4–6versus1–3 may be attributed to the expected larger ligand field strength afforded by the stronger electron donating power of tppz˙³⁻ relative to tppz˙¹⁻ in the hard plane.

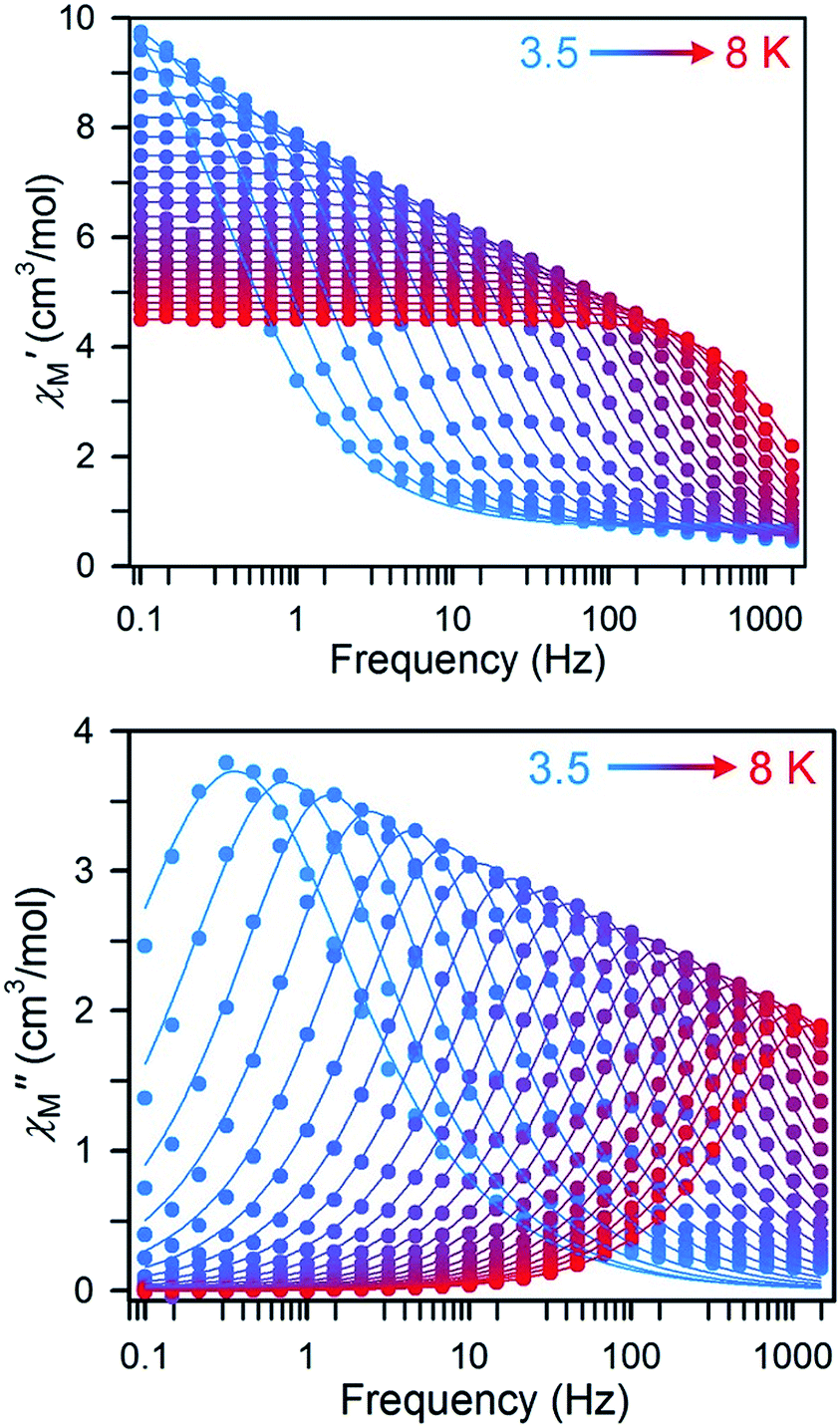

The ac magnetic susceptibility data collected for compounds 2 and 3 were employed to generate Cole–Cole plots at each temperature (Fig. S10 and S11†) and were subsequently fit by a generalized Debye model to extract the relaxation times τ. For a given system, the temperature-dependent relaxation times can provide information on the magnetic relaxation processes operating at respective temperatures. Here, an activation barrier with regard to spin reversal signifies a requisite energy exchange of the system with the lattice via phonons to climb to the top of the barrier before relaxation can occur. This relaxation mechanism, commonly referred as the Orbach process,³⁸ gives rise to relaxation times with an exponential dependence on temperature: τ = τ₀exp(U_eff/k_BT), where τ₀ is the attempt time, U_eff is the effective spin reversal barrier and k_B is the Boltzmann constant. Accordingly, Arrhenius plots for 2 and 3 were constructed to determine U_eff and τ₀, as depicted in Fig. 9.

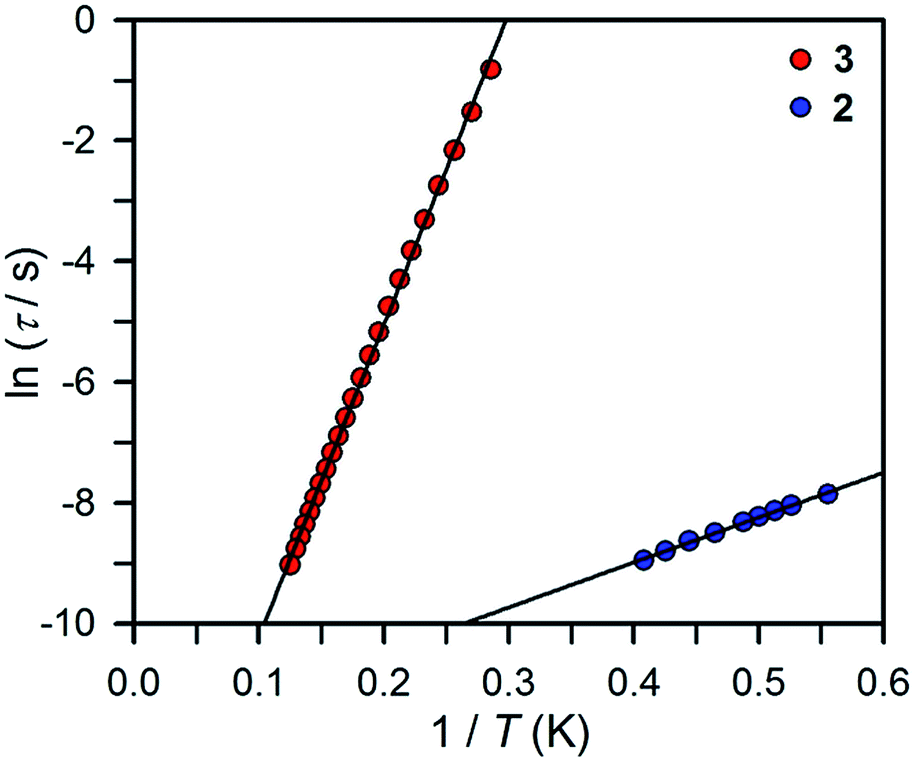

For compound 2 at temperatures between 1.8 and 2.45 K, τ appears to be temperature dependent, which is commonly associated with relaxation processes where the relaxation requires the input or release of energy to the lattice. However, a linear fit to the Arrhenius expression of the relaxation times observed for all temperatures yielded a very small spin reversal barrier of U_eff = 5.1(1) cm⁻¹ with an attempt time of τ₀ = 6(1) × 10⁻⁶ s. The small value of U_eff and the large value of the preexponential factor τ₀ suggest the relaxation is likely not solely based on a thermally activated relaxation mechanism. In contrast, the relaxation times observed for 3 are fully temperature-dependent, indicating that an Orbach relaxation process is effective over the entire temperature range that was probed. A fit of the data to the Arrhenius expression afforded a considerably larger barrier of U_eff = 35.9(2) cm⁻¹ with τ₀ = 2.1(1) × 10⁻⁷ s.

The relaxation barriers for 2 and 3 are much smaller than those observed for bpym¹˙⁻-bridged dinuclear complexes of Tb^III (44(2) cm⁻¹) and Dy^III (87.8(3) cm⁻¹), conceivably a consequence of weaker apparent magnetic exchange coupling. For the planar Ln^III–(N₂³˙⁻)–Ln^III systems discussed above, relaxation barriers of 227 and 123 cm⁻¹ were obtained for Ln = Tb and Dy, respectively, which are the highest values yet reported for strongly exchange-coupled lanthanide species. Here, slow magnetic relaxation was found to be very sensitive to the geometry of the Ln₂N₂ core unit, with the highest barriers arising for rigorously planar arrangements. Deviation from planarity lowers the barrier due to competing antiferromagnetic Ln^III–Ln^III coupling, in addition to strong Ln^III–radical coupling.³⁹ For comparison, the highest barriers hitherto found in mono- and multinuclear f-element complexes are 652 cm⁻¹ for the Tb^III phthalocyanine sandwich complex Tb(Pc)(Pc′) and 585 cm⁻¹ for an oxo-bridged pentanuclear cluster containing Dy^III centers.⁴⁰ The origin of the single-molecule magnet behavior in such multinuclear species is thought to be primarily the large magnetic anisotropy of the individual Dy^III centers, although intramolecular exchange coupling may also provide weak contributions. Hence, the resulting magnetization dynamics are dedicated to several slowly relaxing Dy^III ions as opposed to a fully exchange-coupled moment. More importantly, slow magnetic relaxation mainly attributable to the moments of individual ions facilitates the presence of fast tunneling relaxation processes, which ultimately shortcut the barrier. A complete understanding of such phenomena occurring in lanthanide-bearing systems is still lacking; however, certain studies conclude that intermolecular dipolar interactions play a central role.⁴¹

Magnetic hysteresis

To probe the utility of a single-molecule magnet, variable-field magnetization measurements were performed on polycrystalline samples of 2 and 3. At 1.8 K, at an average sweep rate of 0.004 T s⁻¹, the collected magnetic hysteresis loop for 2 is closed both at zero and higher fields (Fig. S12†). This finding is in good agreement with the determined relaxation times derived from the ac susceptibility measurements. In contrast, the blocked magnetic moments at low temperatures for 3, as manifested by field- and zero-field-cooled measurements, indicate that magnetic hysteresis should be apparent. Accordingly, at an average sweep rate of 0.003 T s⁻¹, the hysteresis loops collected for 3 are open at zero field at temperatures below 3.25 K (Fig. 10). The coercive field of H_c = 0.1 T retains its maximum up to ∼1.9 K followed by a successive decline as the temperature is increased. This result is also in line with the relaxation times obtained from ac measurements. However, we note that the hysteresis loops feature significant steps at H_c = 0, implying that tunneling pathways exist in the sample which were not apparent on the much faster time scale examined by the ac measurements.

Remarkably, despite its relatively small U_eff barrier, compound 3 displays magnetic blocking at 2.8 K and hysteresis below 3.25 K. By contrast, compound 2 does not show a fully resolved χ′′ peak leading to small relaxation barriers and a closed hysteresis loop at 1.8 K.

Conclusions and outlook

Taken together, the foregoing results demonstrate how multi-electron redox-active ligands can be used to synthesize a series of dinuclear lanthanide complexes with radical bridges in various charge states. This work represents a rare report on isolable bridging radical ligands in two different oxidation states. In particular, magnetic exchange coupling and single-molecule magnet behavior, including magnetic blocking, were achieved in the tetrapyridylpyrazine-bridged complexes. Unexpectedly, the coupling constant of J = −6.91(4) cm⁻¹ determined for the monoanionic radical bridged Gd^III compound is very similar to the value of −6.29(3) cm⁻¹ obtained for the trianionic radical-bridged complex. Despite the rather similar coupling strength apparent in these two species, out-of-phase signals were only observed for the monoanionic radical-bridged Tb^III and Dy^III complexes. The latter displays open magnetic hysteresis loops at temperatures below 3.25 K at zero field as a result of appreciable exchange coupling, which suppresses competing fast relaxation pathways. Importantly, these results enable us to conclude that the reduction potential of the bridging organic radical species alone does not dictate the development of single-molecule magnet behavior, but rather symmetry must also be at play.

Further research will be directed towards the tunability of such ligands, with the goal of increasing substantially the strength of the exchange coupling. This can be envisioned through the addition of electron-donating or electron-withdrawing groups to the pyridyl functionalities of the tppz ligand. In addition, efforts are underway to utilize other organic radical ligands suitable for bridging lanthanide ions with the intention of increasing electron density at the donor atoms binding to the metal centers.
