Phosphorescence within benzotellurophenes and color tunable tellurophenes under ambient conditions†

Gang He‡ ^a, Benjamin D. Wiltshire ^b, Paul Choi ^a, Aliaksandr Savin ^a, Shuai Sun ^a, Arash Mohammadpour ^b, Michael J. Ferguson ^a, Robert McDonald ^a, Samira Farsinezhad ^b, Alex Brown *^a, Karthik Shankar *^b and Eric Rivard *^a
aDepartment of Chemistry, University of Alberta, Edmonton, Alberta T6G 2G2, Canada. E-mail: erivard@ualberta.ca; alex.brown@ualberta.ca; Tel: +1 780 492 4255 Tel: +1 780 492 1854
^bDepartment of Electrical and Computer Engineering, University of Alberta, Edmonton, Alberta T6G 2V4, Canada. E-mail: kshankar@ualberta.ca; Tel: +1 780 492 1354

First published on 15th October 2014

---

---

Despite the advancements made in organic light-emitting diode (OLED) technologies during last several decades, there is still a need for efficient phosphorescent materials that operate in the solid state.¹ One complication is that many compounds that display strong luminescence in solution are often non-emissive in the condensed phase due to aggregation-caused quenching.² By disrupting close intermolecular contacts and limiting intramolecular motions, enhanced luminescence can transpire; this effect has been termed aggregation-induced emission (AIE),³ and AIE has been employed to yield solid state emitters for OLEDs and sensing applications.⁴

Tellurophenes and their polymeric analogues have attracted attention recently due to their novel electronic properties (i.e. low-electronic band gaps),⁵ yet these species are generally non-emissive.⁶ This behavior can be traced to the “heavy-metal effect” whereby heavy elements encourage singlet-to-triplet crossing, leading to the formation of long-lived triplet excited states that are prone to self or external (oxygen and/or solvent-mediated) quenching.⁵ Recently, we prepared a new class of pinacolboronate (BPin)-capped tellurophenes which show efficient green phosphorescence in the solid state at room temperature and in the presence of water and oxygen.⁷ A key advance in this field would be to access new Te-based phosphors featuring a wider color palette of emitted light in a controlled fashion. Accordingly, in this communication we report new phosphorescent BPin-substituted benzo[b]tellurophenes and related tellurophenes, and show in the latter systems that variation of the emission color is possible.

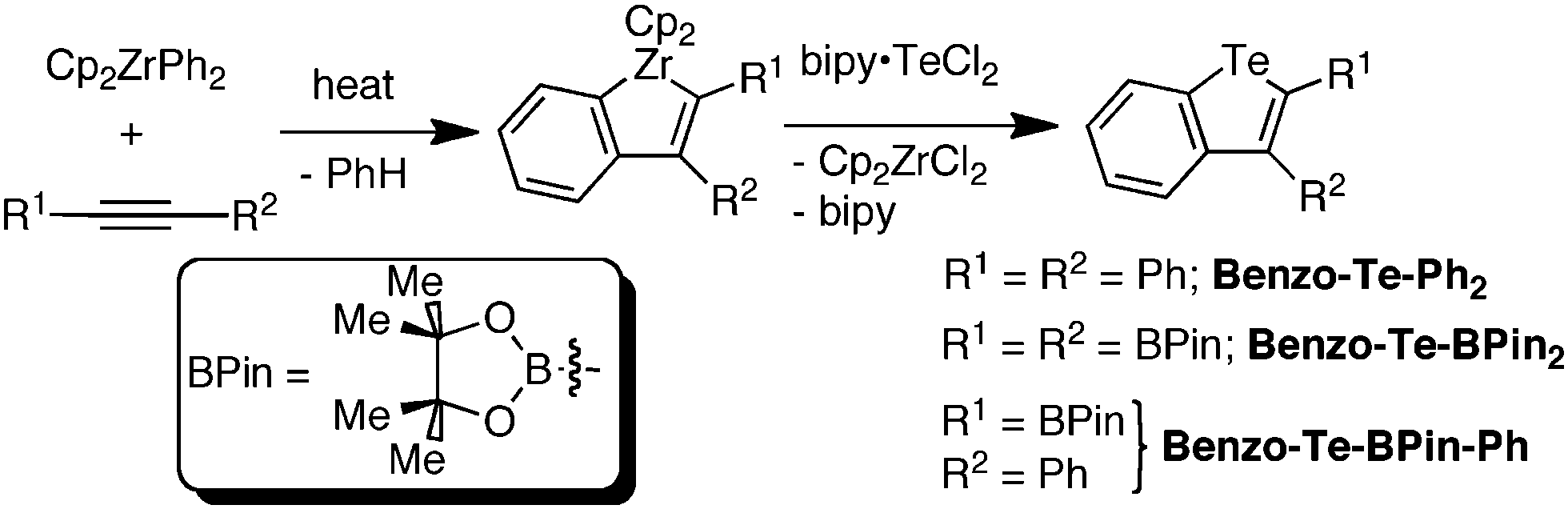

The synthesis of functionalized benzo[b]tellurophenes is outlined in Scheme 1 and begins with the elimination of benzene from Cp₂ZrPh₂ in the presence of alkynes to yield isolable benzo[b]zirconocenes.⁸ These orange-red metallacycles can be readily converted into yellow crystalline benzo[b]tellurophenes, Benzo-Te-Ph₂, Benzo-Te-BPin-Ph and Benzo-Te-BPin₂, via Zr/Te exchange with bipy·TeCl₂ (bipy = 2,2′-bipyridine).^9,10 Of note, Benzo-Te-BPin-Ph was obtained as a single regioisomer with a BPin group positioned adjacent to the Te center, as confirmed by single-crystal X-ray crystallography.¹¹ The pinacolboronate group in Benzo-Te-BPin-Ph is nearly coplanar (Fig. 1) with respect to the planar benzotellurophene unit [O1-B-C1-C2 torsion angle = −176.4(3)°], while the Ph group is canted by ca. 62°. The presence of coplanar BPin and Te heterocycles in the solid state is a common feature in the previously reported phosphorescent tellurophenes and appears to be required for luminescence.⁷ The X-ray structure of the analogous diarylated benzo[b]tellurophene Benzo-Te-Ph₂ can be found in the ESI† (Fig. S2).¹¹

As expected, the newly prepared benzo[b]tellurophenes were non-emissive in solution, presumably due to non-radiative decay that is modulated by rotation of Ph and/or BPin residues. The BPin-substituted analogue Benzo-Te-BPin₂ exhibits green luminescence in the crystalline/solid state when irradiated at 337 nm (λ_emis = 532 nm; Φ = 1.3%; Fig. S16, ESI†). Time-dependent luminescence measurements reveal that the nature of light emission is phosphorescence, with a lifetime (τ) of 6.1 μs observed.¹²Benzo-Te-BPin₂ also exhibits telltale signs of crystallization-induced emission,¹³ as this species converts from a faintly orange emissive oil to phosphorescent crystals upon standing. The related benzotellurophene Benzo-Te-BPin-Ph is weakly phosphorescent in the solid state (τ = 59.3 μs;¹²Φ was too low to be accurately determined), however aggregates of this species in a 5:95 THF–water mixture displayed bright green light emission (λ_emis = 520 nm) upon irradiation (Fig. S12, ESI†);¹¹ the weak phosphorescence from Benzo-Te-BPin-Ph in the neat film state is due to appreciable aggregation-induced quenching in the solid-state. Overall the optical behavior of the BPin-substituted benzotellurophenes mirrors that noted in the reported phosphorescent tellurophene B-Te-6-B (Scheme 2)⁷ which has an emission maximum at 535 nm (τ = 170 μs) and Φ = 11.5%. Benzo-Te-Ph₂ shows a very weak emission in the solid/aggregated states when irradiated at 365 nm (τ = 9.6 μs),¹² and is in line with the requisite presence of a BPin group to obtain phosphorescent tellurium heterocycles.

The selective functionalization of tellurophenes remains a challenge as electrophilic reagents often instigate oxidization at Te.^5b Inspired by the regioselective synthesis of Benzo-Te-BPin-Ph, wherein a BPin group was preferentially positioned adjacent to a Te-center, we decided to assemble PhCCBPin units using Negishi's reagent “Cp₂Zr” (prepared from Cp₂ZrCl₂ and 2 equiv. of n-BuLi).¹⁴ In place of obtaining one zirconocene isomer with BPin groups at the 2- and 5-positions, an inseparable mixture of the 2,5- and 2,4-isomers was obtained (vide infra; Scheme 2). Treatment of this product mixture with bipy·TeCl₂ gave tellurophenes 2,5-BPin₂-3,4-Ph₂-Te and 2,4-BPin₂-3,5-Ph₂-Te (Scheme 2) as two crystalline solid products with differing luminescence properties, which enabled their manual separation under UV light. 2,5-BPin₂-3,4-Ph₂-Te (Fig. S4, ESI†)¹¹ was isolated in a 21% yield (based on the moles of the Zr starting material) and emitted green light under irradiation at 365 nm. Of added interest, the other isomer 2,4-BPin₂-3,5-Ph₂-Te (41% yield) exhibited yellow-orange photoluminescence upon irradiation (Scheme 2), showing a direct link between the placement of the BPin and Ph groups about the tellurophene and the energy of light emission. The pinacolboronate and phenyl groups at the 2- and 5-positions in 2,4-BPin₂-3,5-Ph₂-Te (Fig. 2) are nearly coplanar with the tellurophene ring, while the remaining ring-positioned Ph and BPin groups are twisted into a propeller arrangement; a similar overall geometry exists with the tellurophene TeC₄(BPin)₄.⁷

The phosphorescence profiles of 2,5-BPin₂-3,4-Ph₂-Te and 2,4-BPin₂-3,5-Ph₂-Te are shown in Fig. 3, and as mentioned above, the regioisomer with 2,5-positioned BPin groups emits in the green spectral region (λ_emis = 517 nm; Φ = 4.5%; τ = 51.7 μs), while the 2,4-isomer displays yellow-orange emission (λ_emis = 577 nm; Φ = 5.3%; τ = 17.9 μs).¹² These species are also phosphorescent when aggregated in THF–water mixtures (5:95) with emission maxima centered at 530 nm and 580 nm for 2,5-BPin₂-3,4-Ph₂-Te and 2,4-BPin₂-3,5-Ph₂-Te, respectively (Fig. S13 and S14, ESI†).¹¹

Time-dependent density functional theory (TD-DFT) computations show that each isomer has similar absorption energies (Fig. 4 and Table S8, ESI†).¹¹ However, from DFT computations, the most salient difference between these two species is that the T₁ to S₀ energy gap at the T₁ geometry (which is related to the light emission) for the yellow-orange emitting 2,4-BPin₂-3,5-Ph₂-Te isomer is ca. 0.4 eV lower in energy in relation to 2,5-BPin₂-3,4-Ph₂-Te (Table S9, ESI†). The primary contributor to this difference appears to be the change in π-orbital conjugation between the two species¹⁵ when going from the S₀ (absorption) to T₁ (emission) geometries (compare Fig. S18 and S19 for 2,5-BPin₂-3,4-Ph₂-Te to Fig. S22 and S23 for 2,4-BPin₂-3,5-Ph₂-Te, ESI†). As a result, we postulate that the synthesis of related asymmetrically-substituted heterocycles with a BPin group at one site and an electronically distinct aryl group at an opposite position, should yield a family of tellurophenes with tunable phosphorescence.

Furthermore, the emission of tellurophenes was not affected by molecular oxygen. For instance, there was no significant difference between the solid state (film) emission of 2,5-BPin₂-3,4-Ph₂Te in N₂, air and at high pressure of O₂ (4 atm) (Fig. S30 and S31, ESI†). The emission also remained stable when the film was irradiated under ambient conditions by a strong light source (Fig. S27–S29, ESI†).¹¹

New color modifiable phosphorescent tellurophenes, along with emissive benzo[b]tellurophenes were synthesized. In general, green light emission was observed; however, in the case of the asymmetrically substituted tellurophene, 2,4-BPin₂-3,5-Ph₂-Te, bright yellow-orange phosphorescence in the solid state was observed. Our computations show that enhanced conjugation between ring-positioned orbitals and the Ph group adjacent to Te leads to pronounced red-shifting of the emission; thus future design of asymmetrically substituted tellurophenes with aromatic and BPin residues should enable an even wider spectral palette for emission to be attained.

This work was supported by the Natural Sciences and Engineering Research Council (NSERC) of Canada, the Canada Foundation for Innovation, Alberta Innovates Technology Futures (New Faculty Award to E.R. and scholarships to B.D.W., S.F. and A.M.), and the Canada School for Energy and the Environment. We thank Prof. Y. Y. Tsui for access to his group's high-power pulsed laser for certain experiments.

Notes and references

1. (a) M. A. Baldo, S. Lamansky, P. E. Burrows, M. E. Thompson and S. R. Forrest, Appl. Phys. Lett., 1999, 75, 4–6 CrossRef CAS PubMed ; (b) R. C. Evans, P. Douglas and C. J. Winscom, Coord. Chem. Rev., 2006, 250, 2093–2126 CrossRef CAS PubMed ; (c) Y. You and S. Y. Park, Dalton Trans., 2009, 1267–1282 RSC ; (d) J. Ohshita, S. Matsui, R. Yamamoto, T. Mizumo, Y. Ooyama, Y. Harima, T. Murafuji, K. Tao, Y. Kuramochi, T. Kaikoh and H. Higashimura, Organometallics, 2010, 29, 3239–3241 CrossRef CAS ; (e) T. Peng, Y. Yang, Y. Liu, D. Ma, Z. Hou and Y. Wang, Chem. Commun., 2011, 47, 3150–3152 RSC ; (f) O. Bolton, K. Lee, H.-J. Kim, K. Y. Lin and J. Kim, Nat. Chem., 2011, 3, 205–210 CrossRef CAS PubMed ; (g) J. Xu, A. Takai, Y. Kobayashi and M. Takeuchi, Chem. Commun., 2013, 49, 8447–8449 RSC ; (h) X. Xu, X. Yang, J. Dang, G. Zhou, Y. Wu, H. Li and W.-Y. Wong, Chem. Commun., 2014, 50, 2473–2476 RSC .
2. J. B. Birks, Photophysics of Aromatic Molecules, Wiley, London, 1970 Search PubMed .
3. J. Luo, Z. Xie, J. W. Y. Lam, L. Cheng, H. Chen, C. Qiu, H. S. Kwok, X. Zhan, Y. Liu, D. Zhu and B. Z. Tang, Chem. Commun., 2001, 1740–1741 RSC .
4. (a) R. Hu, N. L. C. Leung and B. Z. Tang, Chem. Soc. Rev., 2014, 43, 4494–4562 RSC ; (b) Y. Hong, J. W. Y. Lam and B. Z. Tang, Chem. Soc. Rev., 2011, 40, 5361–5388 RSC ; (c) H.-J. Yen, C.-J. Chen and G.-S. Liou, Chem. Commun., 2013, 49, 630–632 RSC .
5. (a) A. A. Jahnke, G. W. Howe and D. S. Seferos, Angew. Chem., Int. Ed., 2010, 49, 10140–10144 CrossRef CAS PubMed ; (b) A. A. Jahnke, B. Djukic, T. M. McCormick, E. Buchaca Domingo, C. Hellmann, Y. Lee and D. S. Seferos, J. Am. Chem. Soc., 2013, 135, 951–954 CrossRef CAS PubMed ; (c) G. He, L. Kang, W. Torres Delgado, O. Shynkaruk, M. J. Ferguson, R. McDonald and E. Rivard, J. Am. Chem. Soc., 2013, 135, 5360–5363 CrossRef CAS PubMed .
6. Fluorescent xanthylium telluroxides have been reported: (a) M. W. Kryman, G. A. Schamerhorn, K. Yung, B. Sathyamoorthy, D. K. Sukumaran, T. Y. Ohulchanskyy, J. B. Benedict and M. R. Detty, Organometallics, 2014, 32, 4321–4333 CrossRef  and references therein; (b) Y. Koide, M. Kawaguchi, Y. Urano, K. Hanaoka, T. Komatsu, M. Abo, T. Terai and T. Nagano, Chem. Commun., 2012, 48, 3091–3093 RSC .
7. G. He, W. Torres Delgado, D. J. Schatz, C. Merten, A. Mohammadpour, L. Mayr, M. J. Ferguson, R. McDonald, A. Brown, K. Shankar and E. Rivard, Angew. Chem., Int. Ed., 2014, 53, 4587–4591 CrossRef CAS PubMed .
8. For related studies involving the use of benzo[b]zirconocenes as precursors to main group element heterocycles, see: (a) S. L. Buchwald and R. B. Nielsen, Chem. Rev., 1988, 88, 1047–1058 CrossRef CAS ; (b) A. Kanj, P. Meunier, B. Gautheron, J. Dubac and J.-C. Daran, J. Organomet. Chem., 1993, 454, 51–58 CrossRef CAS ; (c) Y. Miquel, A. Igau, B. Donnadieu, J.-P. Majoral, L. Dupuis, N. Pirio and P. Meunier, Chem. Commun., 1997, 279–280 RSC ; (d) S.-B. Choi, P. Boudjouk and K. Qin, Organometallics, 2000, 19, 1806–1809 CrossRef CAS ; (e) M. Ogasawara, S. Arae, S. Watanabe, V. Subbarayan, H. Sato and T. Takahashi, Organometallics, 2013, 32, 4997–5000 CrossRef CAS .
9. J. L. Dutton, G. J. Farrar, M. J. Sgro, T. L. Battista and P. J. Ragogna, Chem. – Eur. J., 2009, 15, 10263–10271 CrossRef CAS PubMed .
10. (a) P. J. Fagan and W. A. Nugent, J. Am. Chem. Soc., 1988, 110, 2310–2312 CrossRef CAS ; (b) B. L. Lucht, S. S. H. Mao and T. D. Tilley, J. Am. Chem. Soc., 1998, 120, 4354–4365 CrossRef CAS .
11. See the ESI† for additional details.
12. Emission was dependent on film crystallinity. Excited state decays of all compounds were either monoexponential or biexponential. For biexponential decays, a weighted mean lifetime is provided. The intermolecular Te⋯Te interactions in Benzo-Te-BPin-Ph were smaller than in the other compounds and its emission in neat films was too weak to measure; the lifetime reported for Benzo-Te-BPin-Ph was obtained by diluting it in a poly(methyl methacrylate) matrix. See the ESI† for details.
13. (a) W. Z. Yuan, X. Y. Shen, H. Zhao, J. W. Y. Lam, L. Tang, P. Lu, C. Wang, Y. Liu, Z. Wang, Q. Zheng, J. Z. Sun, Y. Ma and B. Z. Tang, J. Phys. Chem. C, 2010, 114, 6090–6099 CrossRef CAS ; (b) R. Yoshii, A. Hirose, K. Tanaka and Y. Chujo, Chem. – Eur. J., 2014, 20, 8320–8324 CrossRef CAS PubMed .
14. E. Negishi, F. E. Cederbaum and T. Takahashi, Tetrahedron Lett., 1986, 27, 2829–2832 CrossRef CAS .
15. (a) R. D. Pensack, Y. Song, T. M. McCormick, A. A. Jahnke, J. Hollinger, D. S. Seferos and G. D. Scholes, J. Phys. Chem. B, 2014, 118, 2589–2597 CrossRef CAS PubMed ; (b) T. M. McCormick, A. A. Jahnke, A. J. Lough and D. S. Seferos, J. Am. Chem. Soc., 2012, 134, 3542–3548 CrossRef CAS PubMed .

---

Footnotes

† Electronic supplementary information (ESI) available: Full experimental, computational and crystallographic details. CCDC 1019615–1019619. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4cc06529h

‡ Prof. Eric Rivard: principal investigator, designed the concept and co-wrote the manuscript. Prof. Alex Brown: principal investigator responsible for the computational studies. Prof. Karthik Shankar: principal investigator responsible for luminescence measurements. Dr Gang He and Mr Paul Choi: conducted all chemical syntheses and Dr Gang He co-wrote the manuscript. Mr Benjamin Wiltshire and Mr Arash Mohammadpour: conducted solid-state photoluminescence measurements. Mr Aliaksandr Savin and Mr Shuai Sun: conducted the TD-DFT and DFT computational studies. Ms Samira Farsinezhad: conducted bulk X-ray diffraction (XRD) studies. Drs Michael Ferguson and Robert McDonald: conducted single-crystal X-ray diffraction measurements and structure refinements.
