Emerging investigator series: capacitive deionization for selective removal of nitrate and perchlorate: impacts of ion selectivity and operating constraints on treatment costs†

Steven Hand and Roland D. Cusick *
Department of Civil and Environmental Engineering, University of Illinois at Urbana-Champaign, 3217 Newmark Civil Engineering Laboratory, 205 North Mathews Avenue, Urbana, IL 61801-2352, USA. E-mail: rcusick@illinois.edu; Tel: +1 (217) 244 6727

First published on 17th January 2020

---

---

Water impact Cost-effective treatment of ionic pollutants such as NO3− or ClO4− remains a major challenge. In this study, we investigate for the first time, the cost of capacitive deionization (CDI) systems for treatment of NO3− or ClO4− using a full-scale sizing and costing framework. Across three case studies for selective NO3− removal, CDI could achieve treatment at below $0.4 per m3.

1. Introduction

Nitrate is a common water contaminant which has been shown to cause acute toxic response and has been investigated as a potential carcinogen.¹ To avoid adverse health impacts of ingesting NO₃⁻ both the WHO and US EPA proscribe 10 mg-N L⁻¹ maximum contaminant levels (MCLs) in drinking water.^1–3 Likewise, ClO₄⁻ toxicity in humans has been observed at very low doses, prompting an Interim Drinking Water Health Advisory of 15 μg L⁻¹ by the US EPA.^4,5 However, the relatively low salinity of contaminated drinking water and the presence of other anions makes removal of ClO₄⁻ and NO₃⁻ difficult, particularly by technologies which lack ion-specificity.^6–10 When selective ion exchange (IEX) systems are used for NO₃⁻ the brines used to regenerate resins incur a significant economic and environmental burden, accounting for as much as 77% of total system operating/maintenance costs.^11–13

Capacitive deionization (CDI) is a class of electrochemical separation technologies which has been primarily studied for brackish water desalination.^14–18 While numerous performance metrics have been proposed to best evaluate the efficacy of CDI as compared to other desalination technologies such as reverse osmosis (RO) and electrodialysis (ED),^14–16 only recently has a sizing framework been introduced to enable quantification of the capital and operating life cycle water costs ($ per m³) of CDI systems.¹⁹ Our recent technoeconomic analysis (TEA) of brackish groundwater desalination with CDI showed that capital and operating costs are proportional to the influent concentration and target concentration reduction (Δc), indicating applications in low salinity water, which require lower concentration reduction, would be far less expensive. Since CDI is an electrochemical separation process, ion-selective removal presents a myriad of possible alternative applications to water desalination.^20–23 While CDI systems have been studied for selective removal of numerous ions,^23–40 ClO₄⁻ and NO₃⁻ removal have been of particular interest to the CDI field.^{2,7,8,24,25,41–46}

Bare carbon CDI systems have been shown to have high selectivity for NO₃⁻ and ClO₄⁻, up to a 6:1 and 4:1 selectivity over the more abundant Cl⁻, resepectively.^2,25,42–46 Additionally, anion exchange membranes and electrode modifications have been shown to increase NO₃⁻ sorption.^7,8,44,47 Because the capital cost of CDI systems are proportional to the target concentration reduction and account for the majority of total system cost, increasing ion selectivity offers promising means of reducing CDI cost for pollutant removal.¹⁹ In this study, ion selectivity is incorporated into a process model TEA framework for CDI. This ion selective TEA framework is used to elucidate the impacts of influent concentration, MCL, ion mixture, and selectivity on the costs of CDI and membrane CDI (MCDI) systems for the removal of two toxic oxyanions (ClO₄⁻ and NO₃⁻). Lastly, we sized and costed CDI systems based on the water quality and flow/separations conditions drawn from three NO₃⁻ removal case-studies.

2. Materials and methods

2.1. Incorporating ion-selectivity within the parameterized process model and technoeconomic analysis framework

Constant current CDI systems were sized for selective removal of either NO₃⁻ or ClO₄⁻ across ranges of water quality and operating/material parameters using a coupled electrochemical/hydraulic process model framework as described in ref. 6 (Fig. 1). Briefly, the necessary number of hydraulically parallel cell pairs are calculated at given treatment characteristics and operating/material parameters including cell voltage limit (V, volts), cycle time (t, s), electrode area (A, cm⁻²), area-normalized equivalent series resistance (R, Ω cm²), specific capacitance (C, F g⁻¹), current density (i, A m⁻²), water recovery (WR), double-layer adsorption efficiency (η_C), treatment flow (Q, L s⁻¹), and influent/effluent concentrations (c_in/c_out, equivalents per L) (Table 1). From the total number of cells pairs, total mass of active material and energy consumed per cycle are calculated to size a CDI system. In all cases, ideal energy recovery was assumed (i.e., 100% of recoverable energy during discharge was recovered). The CDI system is then costed according to size of the system determined from the parametric model.

---

Per ref. 6, electrodes were modelled and costed as composite electrode sheets composed of activated carbon, polymeric binder, and conductivity additive at 85:10:5 wt%, respectively. The projected area of electrodes was varied between 70 to 150 cm² and the thickness of the electrodes (δ_e, μm) was determined from the electrode density and the calculated electrode mass (δ_e ≤ 500 μm across all runs). Each cell stack was modelled and costed with 400 parallel cell pairs. The price of each stack was composed of graphitic current collectors, electrode cost, frames/gaskets, electrode separators, and ion exchange membrane (IEM) costs for MCDI systems (Table 2). IEM costs were assumed as low-cost, cast layers as reported for commercial MCDI applications.^48,49 Capital costs included the cell stack component and balance-of-plant costs which includes heat management equipment and power electronics. Pumping costs were estimated as 0.1–0.3 kW h m⁻³ based on cell geometry and previously reported values for comparably operated systems.^19,50,51 Operating costs were limited to the electricity directly utilized by the CDI stack and electricity consumed by pumping. From the capital and operating costs, a discounted cash flow analysis was used to calculate the equivalent annual cost (EAC) of the system over various system lifetimes. The discount rate for capital costs was set at 3% per the U.S. EPA's Water Infrastructure Finance and Innovation Act (WIFIA) program, and the discount rate for annual operating cost was fixed at 7%. The results EAC was normalized to annual water production in order to determine water price. We refer our readers to our previous study for detailed equations governing system sizing and costing (see ESI† section 2).¹⁹

---

In order to incorporate ion-selective removal, the parametric process model was modified to include ion-selectivity coefficients as previously reported for both CDI and MCDI systems.^2,43,46 For any target ion, we assume electrosorption site competition between target ion and the dominant co-ion in solution (e.g., Cl⁻, HCO₃⁻, etc.). The selectivity of target ion removal over co-ions can be calculated per a modification of the IUPAC selectivity coefficient for adsorbed ions defined by Hawks et al.:²

	(1)

where S_A/B is the selectivity coefficient for target species T over species X, c_ads,T/c_ads,X is the adsorbed concentration of target species T over species X in mM, and c_m,T/c_m,X is the mobile concentration of target species T over species X in mM. From eqn (1), the effluent concentration goal for the target species and the influent water composition can be used to calculate the final concentration of other species as follows:

	(2)

	(3)

where c_X is the final concentration of species X in mM, X₀ is the initial concentration of species X in mM, c_T is the final concentration of the target species T in mM, and T₀ is the initial concentration of the target species T in mM. Finally, the initial and target concentrations of total ionic species input to the parameterized model can be calculated as:

	(4)

where c is the total water concentration in meq L⁻¹, c_i is the concentration of species i in mM, and z_i is the charge number of species i in mM. Unless otherwise noted, the simulated electrolyte was a binary mixture composed of the target ion (NO₃⁻ or ClO₄⁻, at commonly reported concentration ranges) and monovalent co-ion, Cl⁻. The concentration total electrolyte concentration was fixed at 10⁻² charge equivalents per liter (10 meq L⁻¹).

2.2. Case studies of existing NO₃⁻ removal systems

Using the above modifications to the previously developed parameterized sizing framework, CDI systems were sized for three reported NO₃⁻ removal cases: (1) surface water treatment at the South Water Treatment Plant in Decatur, Illinois (Decatur); (2) ground water treatment at the Weizmann Institute of Science in Rechovot, Israel (Israel); and (3) groundwater treatment at the Falconera Water Treatment Plant in Gandia, Spain.⁶⁰ Each of these locations was selected due to existing NO₃⁻ removal practices and a detailed water quality report including competing anions. Each CDI system was sized according to the treatment flows reported at each location with two target effluent quality conditions, 0.7 mM NO₃⁻ (the US EPA MCL) and 0.35 mM NO₃⁻ (½ MCL), given the influent conditions reported for each case (Table 1). The input parameters used in all case studies were based on median values from previously reported of ranges of CDI operating and material parameters with 85% water recovery and a 0.6 V operating window per experimental literature for selective ion removal (Tables 1 and 2).^{2,14,19,22,25,42,46}

3. Results and discussion

3.1. Impacts of water recovery and influent concentration on life cycle treatment cost

To evaluate the impacts of incorporating ion-selective removal on performance and costs, we evaluated both CDI and MCDI with a generalized binary electrolyte mixture (i.e., a 1:1 ratio of generic target ion and to generic co-ion) with no selectivity (S = 1). Life cycle water treatment cost was calculated for CDI systems operating at water quality and separation conditions typically observed in selective ion removal for drinking water. The systems were initially sized and costed across ranges of design parameters (cycle length, electrode projected area, current, ion removal fraction, and water recovery) and material parameters (setup resistance, specific capacitance, charge efficiency) (Table 1) for a change in total electrolyte concentration of 5 mM.

At the conditions simulated in this study, volumetric energy consumption with complete energy recovery for both MCDI and CDI varied between 0.15–0.65 kW h m⁻³, which corresponds to the previously reported ranges at similar concentration reductions (Δc ≤ 9 meq L⁻¹) (Fig. S1†).^16,18,61 Similarly, productivity in the simulated systems was generally comparable to previously reported values (10–50 L m⁻³ h⁻¹) (Fig. S1†).^16,19 Since ionic conductivity is lower in selective removal from drinking water than brackish water desalination, lower operating current densities are required to avoid operating capacity loss due to ohmic resistance. Accordingly, the maximum productivity observed in this study was lower than that of our previous brackish water desalination TEA (50 vs. 65 L m⁻³ h⁻¹, respectively) due to the reduced maximum current density (7 vs. 25 A m⁻², respectively).¹⁹

Because selective ion removal systems often operate at lower influent concentration and concentration reduction than those for brackish water desalination (c_in = 10 vs. 50 meq L⁻¹ and Δc = 5 vs. 42.5 meq L⁻¹), the (M)CDI systems investigated in this study were able to achieve comparable system prices to previously reported capacitive brackish water deionization systems at substantially lower lifetimes.¹⁹ For example, at identical water recovery selective ion removal with CDI and MCDI systems with 12000 cycle lifetimes cost $0.30 per m³ and $0.72 per m³, respectively (Fig. 2A and D). To achieve comparable water treatment costs for brackish water desalination, CDI and MCDI system must reach 72000 and 144000 cycles lifetimes, respectively.¹⁹ Increasing (M)CDI lifetime from 6000 to 24000 cycles reduces median system price across all water recovery conditions (Fig. 2A and D).

Under conditions evaluated in this study, both CDI and MCDI systems could be sized to achieve at least 0.95 water recovery, despite increased water prices beyond water recovery of 0.85 for CDI. In contrast, brackish desalination designs, which require greater concentration reduction (Δc > 10 mM), are unable to consistently achieve water recovery above 0.8 when simulated under otherwise comparable constant current operational modes.¹⁹ An inflection in water production cost is observed at a water recovery of 0.85 for all lifetimes for CDI (Fig. 2A). To achieve increased water recovery, higher discharge currents must be used when operated at a given total cycle length. Therefore, as the water recovery is increased, the total energy consumption per cycle and thus operating costs increase as well. When water recovery exceeds 0.85, increased water production ceases to offset the additional operating expenses to achieve higher water recovery and the water prices begins to increase (Fig. S2†). Since operating costs compose a smaller percentage of total system costs in MCDI, no local minimum in water price is observed in the water recovery ranges sampled (Fig. 2D). These results suggest that while an optimal water recovery for CDI system may exist at below the maximal achievable value (>0.95), cost-effective operation of MCDI systems will likely entail maximizing water recovery.

When evaluated at comparable lifetime and water recovery, the treatment price MCDI systems was greater than that of CDI despite improved performance due to the high cost contribution of IEMs (>70% of total costs at lifetimes less than 24000 cycles) (Fig. S3†). However, due to the carbon corrosion from parasitic processes, it will be challenging to achieve extended cycling in CDI.^64,73,74 Conversely, MCDI has shown greater cycling stability due to reduced oxygen diffusion through IEMs, with commercial MCDI systems targeting 300000 cycle lifetimes.^{15,63–66,75,76} As MCDI systems operate beyond 48000 cycles (approximately 2 years of operation as simulated in this study), water price drops below that of CDI systems with optimistic 24000 cycle lifetimes (Fig. S3†).

The impacts of cell voltage limit (Fig. 2B and E) are evaluated at optimal water recovery (0.85) and 24000 cycle lifetimes (∼1 year of operation). While constant current CDI systems are generally operated with 1.2 V voltage limits in maximize capacity for brackish water desalination, increasing the voltage limit also increases the prevalence of parasitic reactions which reduce system lifetimes.^62–66 Although recent studies have utilized a lower cell voltage limit of 0.6 V for selective ion removal, both CDI and MCDI were simulated from 0.4–1.2 V (Fig. 2B and E).^{2,22,25,42,46} For both MCDI and CDI, increasing the voltage limit from 0.4 V to 0.6 V decreased water price by nearly 25% across all system lifetimes (Fig. 2B and E). Because reducing the cell voltage limit reduces the available ion removal capacity of each cell, more cells are needed to achieve target effluent quality, increasing system cost. However, increasing the cell voltage has diminishing returns for reducing total system mass at the relatively low concentration reductions simulated in this study (Δc = 5 vs. 10–40 meq L⁻¹ for brackish water desalination). Since energy consumption and operating costs are increased with greater voltage limits, there was little net change in system price as the voltage limit was increases beyond 0.6 V. While water prices do not significantly change at voltage limits above 0.6 V, the parameterized model utilized in this study does not account for parasitic charge transfer reactions which would adversely impact system performance and reduce system lifetimes at higher cell voltage limits, leading to higher water prices than those reported in this study.^62,63

Lastly, the impact of ion removal fraction and total influent ion concentration are evaluated at optimal water recovery (0.85) and 24000 cycle lifetimes (∼1 year of operation) (Fig. 2C and F). For both MCDI and CDI, water prices generally increase linearly with increasing influent concentration. The system size and corresponding capital cost has been shown to control total system price¹⁹ for both MCDI and CDI. Because system size is governed by the total moles of ions removed per cycle (the product of influent concentration and ion removal fraction), increasing the ion removal fraction also increases the slopes of positive rate of change between water price and influent concentration for both CDI and MCDI (Fig. 2C and F). At total influent ion concentrations below 10 meq L⁻¹, both MCDI and CDI water prices for unselective removal of a generalize binary salt are comparable to or below reported NO₃⁻ treatment water price for RO ($0.67–0.82 per m³), but only simulated CDI values are fall below those reported for ion exchange ($0.17–0.38 per m³).^13,60,67

3.2. Impacts of selectivity on life cycle treatment cost

To evaluate the impact of ion selectivity on treatment costs for two regulated anions commonly found in drinking water, CDI systems were sized specifically for NO₃⁻ and ClO₄⁻ removal. In all cases, the total ion concentration was fixed at 10 meq L⁻¹ and target-ion mole fraction was varied across concentrations typically observed for NO₃⁻ (T = 0.1–1.0, c₀ = 1–10 mM) and ClO₄⁻ (T = 0.001–0.01, c₀ = 1–10 μM) (Fig. 3). Because increasing the selectivity of a target ion reduces the total amount of ions which need to be removed per cycle, the effective concentration reduction inversely scales with selectivity (eqn (2)–(4)).

For both NO₃⁻ and ClO₄⁻, increasing selectivity decreases costs, however the relative importance of selectivity varies with both concentration reduction and target-ion mole fraction. Consequently, the significance of selectivity decreased with required Δc for both target anions. For example, in non-selective operation (S = 1), a 0.1 target ion removal fraction requires every other co-ion to undergo an identical 0.1 ion removal fraction. At a 0.5 mole fraction and selectivity coefficient of 10, a 0.1 target ion removal fraction requires co-ion removal fractions of only 0.53. Therefore, at very low Δc, any change in selectivity has a proportionally low change in Δc and equivalent system costs.

Our results suggest that CDI may be cost-competitive for selective ion removal at low to moderate mole fractions, particularly with increased selectivity. Water prices below $0.20 per m³ are achievable for NO₃⁻ at selectivity coefficients below those experimentally observed (S = 6–10) (Fig. 3A).^2,68 Conversely, increasing selectivity is crucial to achieving low treatment cost toxic anions in the micromolar range such as ClO₄⁻ (Fig. 3B). Reducing the water price below $0.20 per m³ will generally require ClO₄⁻ selectivity above 10, which eclipse the range of selectivity values reported in the literature for this ion at comparable concentrations to those of this study (S = 4–6.5).⁴⁶ The significant cost difference of selective removal between the two target ions is due to relative removal necessary to achieve regulatory concentration levels for either NO₃⁻ or ClO₄⁻ (30–90% vs. 85–99%). As the necessary removal percentage increases to higher levels (>95%), treatment requires near complete deionization of influent water (i.e., c_out = 0.4 μeq L⁻¹ to 0.5 meq L⁻¹, depending on influent ClO₄⁻ concentration). These findings align with recent observations that CDI cycling behavior begins to substantially deviate from ideal behavior at high influent concentrations for ion removal levels approaching 100%.⁶⁹ Such high concentration reductions can present a substantial barrier to cost-effective CDI implementation, particularly for influent waters with total ionic content above that typically seen for drinking water. Under such conditions alternative separations technologies such as shock electrodialysis, which achieves near complete deionization, might be more cost-effective.^70,71

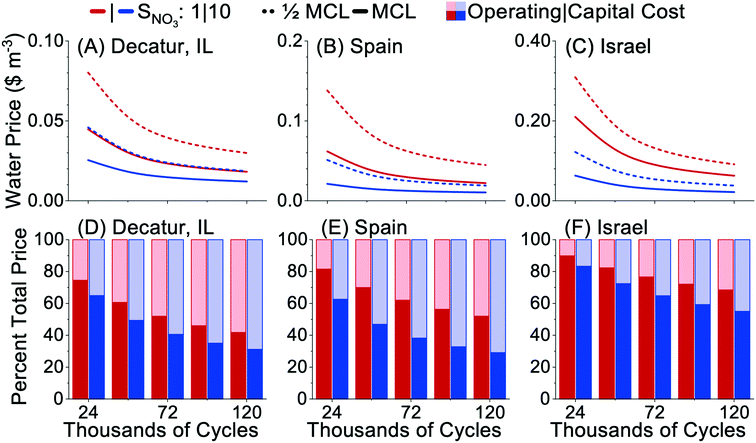

3.3. Case studies for the cost of selective capacitive deionization of nitrate

Based on the promising simulated results reported in the previous section for selective removal of NO₃⁻, CDI systems were sized and costed for the three potential treatment sites that differed in target ion concentration and water composition (Table 3). In order to simplify the analysis, the selectivity constants were identically fixed across all co-ions included in the water quality table for each instance (S_NO3⁻/Cl⁻ = S_{NO3⁻/HCO3⁻} = 1, 10) and all other system input parameters were fixed (Table S1†). Water price of sized systems was strongly dependent on concentration reduction regardless of flow rate, with Israel and Decatur case study water prices being the greatest and least, respectively (Fig. 4 and Table 3). For all case studies and target effluent qualities, the price of treating water with CDI was below the $0.33 per m³ cost of existing technologies estimated by King et al.⁷² for the State of California (Fig. 4).

---

Since capital costs make up the majority of total cost (65–95%), the lifecycle water price for all case studies dropped approximately two- to three-fold when selectivity coefficients were increase from one to ten (Fig. 4). Conversely, decreasing the target effluent NO₃⁻ concentration from 1 MCL (0.7 mM NO₃⁻) to ½ MCL (0.35 mM NO₃⁻) approximately double to water price for all case studies. However, incorporating more selective materials served to offset the water price increase incurred by a more stringent product water quality limit. The relative cost improvements of increased selectivity were more pronounced at higher influent NO₃⁻ concentrations (Fig. 4A and C and Table 3). The cost of water treated to half MCL with S_NO3⁻/X = 10 was 1.18 times more than water treated to the MCL with no selectivity (S_NO3⁻/X = 1) for Decatur, IL (Fig. 4A), whereas for the Israel case, cost of water treated to one half the MCL with S_NO3⁻/X = 10 was 0.74 times less than water treated to the MCL with S_NO3⁻/X = 1. The Illinois and Spain case studies highlight how ion selective removal at low influent concentrations could lead to conditions in which pump and capacitor energy consumption are more influential than initial capital investment on life cycle water price (Fig. 4D–F). Therefore, while improving system lifetimes and charge efficiency are necessary to decrease the capital costs of CDI systems, increasing target ion selectivity in CDI is a promising means of either reducing treatment costs or achieving more stringent effluent quality levels without significantly increasing treatment costs.

4. Conclusions

The results of this study indicate that selective NO₃⁻ removal with CDI can likely be achieved economically within previously reported selectivity ranges if target cycle lifetimes can be attained.^2,8,43 However, the removal of contaminants with lower influent concentrations or requiring high percent removal (such as ClO₄⁻ Li⁺,^{20,22,77–81} F⁻,^24–31 Cr(VI),^23,27,28,32 and As(III)/As(IV))^23,33,34 with CDI will likely be cost-competitive only if high selectivity can be achieved. The development of selective polymer electrodes is a promising avenue for engineering electrodes with high selectivity for target contaminants while also preventing degradation of the electrode.^23,82,83 In addition to reducing water price by increasing selectivity, selective polymer materials may also reduce price by increasing charge and system lifetimes as previously reported.¹⁹ As is shock electrodialysis since near complete deionization is required in the micromolar concentration regime. Regardless of the target ion, CDI systems can potentially reduce treatment cost for dilute water by utilizing the intrinsic strengths of an electrochemical separations process over standard size exclusion or physio-adsorption separation.^6,41,72
