A ratiometric photoacoustic imaging approach for semi-quantitative determination of aggregation efficiency in vivo†

Bo Peng‡ ^a, Xiu-Mei Liu‡ ^a, Hsian-Rong Tseng ^b, Li-Li Li *^a and Hao Wang ^a
aLaboratory for Biomedical Effects of Nanomaterials and Nanosafety, CAS Center for Excellence in Nanoscience, National Center for Nanoscience and Technology (NCNST), No. 11 Beiyitiao, Zhongguancun, Beijing, 100190, China. E-mail: lill@nanoctr.cn
^bCrump Institute for Molecular Imaging, California NanoSystems Institute, Department for Molecular and Medical Pharmacology UCLA, Los Angeles, CA 90095, USA

First published on 16th June 2020

---

---

Introduction

Self-assembled materials have made great progress in the past few years.^1–4 Since the concept of self-assembly was put forward, most of the research on self-assembly has been carried out in a simple external solution environment.^5,6 Although its morphology and properties can be precisely regulated in vitro,^7,8 there is still a long way to go in a complex environment, especially controlling the process of self-assembly.^9,10 Monitoring this process not only helps to deepen our understanding of biological systems, but also promotes the development of nanotechnology, and lays a foundation for the deep integration of nanotechnology and biology.

In our previous work, we used the “in vivo self-assembly” strategy¹¹ to realize the diagnosis and treatment of tumor or inflammation. Based on this strategy, the assembly/aggregation induced retention (AIR) effect came up, which can effectively optimize the bio-distribution of bioactive molecules in vivo, increase the tumor permeability of drugs and improve the drug and pharmacokinetic behavior.^12,13 However, the dynamic self-assembly process depends on time, concentration, intramolecular interactions and so on.^9,14,15 Aggregation efficiency in vivo is an important problem, which still has no answer for further understanding and optimizing our system. Although there are many methods to obtain the aggregation efficiency in vitro, such as UV-vis,^16,17 fluorescence,¹⁸etc., it is a difficult problem to detect such an important parameter in vivo, which is rarely reported. Herein, we developed a ratiometric photoacoustic (PA) bioimaging method for real-time semi-quantitative calculation of in vivo aggregation efficiency. According to the ratio of aggregated and monomeric PA signals, we found that the ratiometric PA had a typical exponential relationship with the aggregation efficiency calculated by the fluorescence method. Then, we developed a PA probe (P-RT, P₁₈-MLGFFQQPKPRVSNKYFSNIHW), which had three motifs: purpurin 18 (P₁₈), a cathepsin E responsive peptide¹⁹ (MLGFFQQPKPR) and a urokinase plasminogen activator receptor (uPAR) targeting peptide^20,21 (VSNKYFSNIHW). This PA probe displays active-targeting and sequent intracellular tailored self-assembly properties. The PA probe shows a kind of active targeting, tailoring and self-assembly characteristics in cells sequently. As the control group, we synthesized three control molecules, which were P-RS (P₁₈-MLFGQFQPKPRISKSVYNFWNH) with a scrambled targeting sequence, P-ST (P₁₈-MLFGQFQPKPRVSNKYFSNIHW) with a scrambled enzyme-tailored sequence, and P-Res (P₁₈-MLGF) as the synthesized tailored residue of P-RT (Scheme 1). We compared different endocytosis pathways and assembly properties by a significant ratiometric PA signal. Accordingly, we first used a photoacoustic method to monitor the aggregation efficiency in vivo. The ratiometric photoacoustic method overcomes the limitation of fluorescence signals in an internal environment. In addition, the ratio management of PA signals eliminates the interference of the concentration in aggregation efficiency. According to our method, we evaluated the aggregation efficiency in vivo and obtained the time-dependent aggregation profiles of a pancreatic tumor model (Scheme 2). This study of aggregation efficiency is of great significance for the design of self-assembly molecules and the optimization of their assembly/disassembly behavior in vivo, and has a wide application prospect in nanomedicine, disease diagnosis and treatment.

Results and discussion

Ratiometric photoacoustic signal manipulation

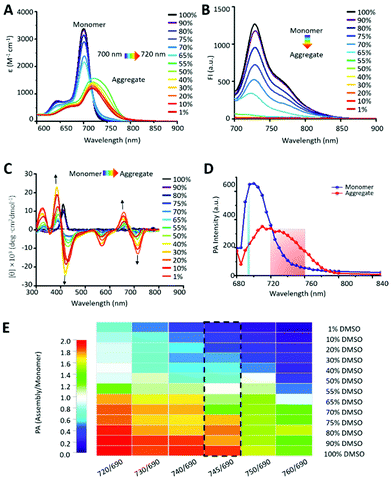

In order to study the assembly behavior of chlorophyll derivatives in vivo, we systemically studied the dynamic assembly properties based on UV-vis, fluorescence, circular dichroism (CD) and photoacoustic spectra for the solutions with increased H₂O ratios in DMSO. Firstly, we synthesized a series of chlorophyll derivatives as PA probes (Fig. S1–S4†). Among them, P-Res (P₁₈-MLGF) was designed as a tailored residue that can aggregate in aquerous solution. It is known that chlorophyll derivatives were dissolved as monomers in DMSO and as aggregates in water.²² Thus, we observed the gradual aggregation behavior of P-Res in a mixed solution of DMSO and H₂O. With the increase of the ratio of H₂O to DMSO, the UV-Vis absorption spectrum of P-Res (10⁻⁴ M) showed a typical red shifted and broadened Qy band from 700 nm to 720 nm, which indicated the aggregation process (Fig. 1A). At the same time, increasing the aggregation and the π–π stacking²³ gradually resulted in the quenching of fluorescence intensity (Fig. 1B).²⁴ In the aggregation process, the intermolecular interaction and twisted J-type assembly²⁵ enhanced the structural chirality of the aggregated superstructure, and the Cotton effect peak^26,27 centered around 400 nm (Qx band) and 700 nm (Qy band)²⁸ (Fig. 1C). Finally, we processed the photoacoustic signal of P-Res from 680 nm to 850 nm, and got the detection window of the ratiometric PA signal. P-Res was dissolved in 100% DMSO as monomers and 1% DMSO as aggregates, respectively (Fig. 1D). The intersections of the PA signals allowed the ratiometric method to eliminate the interference of the concentration and background signal.²⁹ Around 690 nm, the ratio difference of PA signals was the largest, while at the intersection of 720 nm and 760 nm, the difference of the aggregate state and monomer state was better. Therefore, in the following experiments, we choose 690 nm as the monomer detection window and 720–760 nm as the aggregate detection window. To further obtian the suitable detection window, we mapped the ratiometric PA between 720 nm/690 nm and 760 nm/690 nm in diffrerent solution mixtures of DMSO and H₂O (Fig. 1E). Compared with UV-vis and flouresence spectra, the ratiometic PA at 745 nm/690 nm had an obvieously gradually changed tendency, which was choosen as the best detection window.

The exponential relationship between aggregation degree and ratiometric photoacoustic signal

The aggregation degree (α_agg) was defined as the percentage of molecules in the aggregation state to the total molecules.³⁰ Fluorescence is closely related to the aggregation state of molecules. The fluorescence method for the detection of degree of aggregation has been reported as the gold standard.³¹ The aggregation degree of P-Res can be calculated by the following equation:¹⁸

where I is the emission intensity at 730 nm, I_H2O is the emission intensity detected in pure water (all molecules as aggregates), and I_DMSO is the emission intensity measured in pure DMSO (all molecules as monomers).

In the same way, we use the ratiometric PA in combination with the above formula to define R as the ratiometric parameter PA signal. A new equation is obtained:²²

where R is the ratiometric PA intensity (PA_{745 nm/690 nm}), R_H2O is the ratiometric PA intensity detected in pure water (all molecules as aggregates), and R_DMSO is the PA intensity measured in pure DMSO (all molecules as monomers).

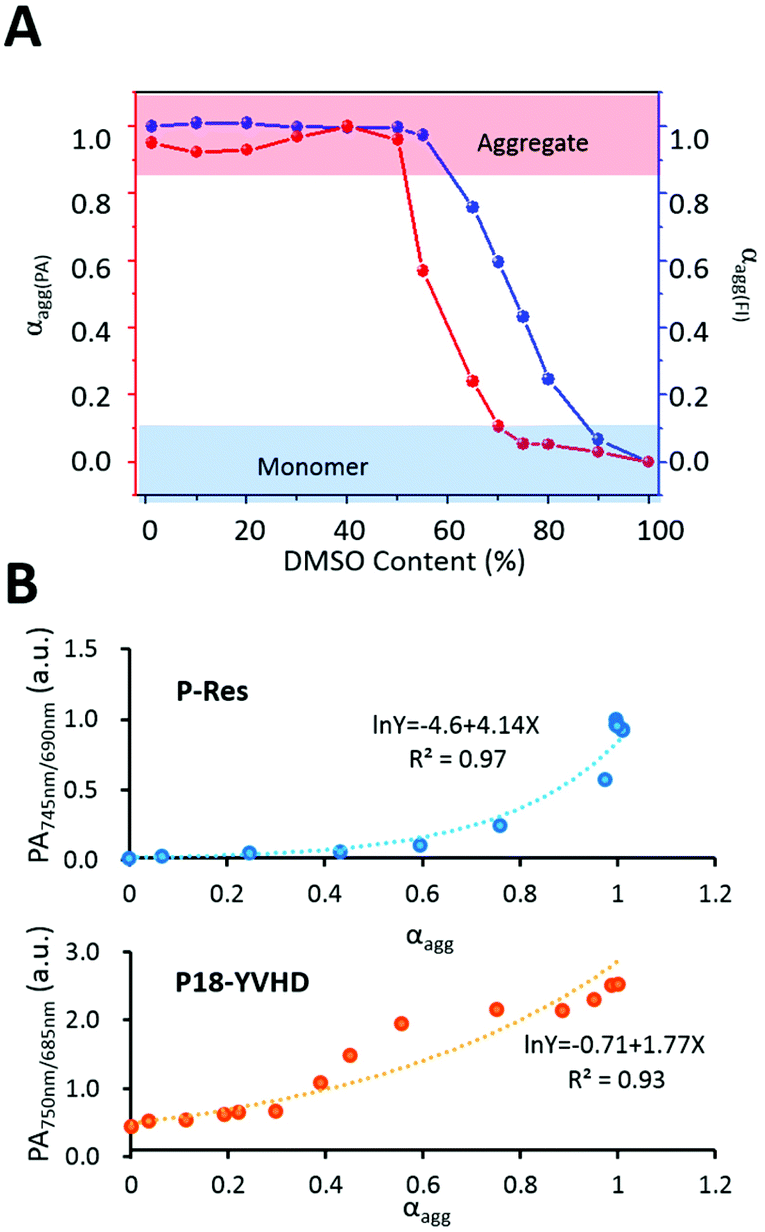

As shown in Fig. 2A, the aggregation curve calculated by fluorescence intensity and ratiometric PA_{745 nm/690 nm} showed a similar aggregation process. Above 60%, the aggregation curve tended to be the highest, indicating that the molecules were almost in the aggregation state. When the DMSO ratio reached 55%, the aggregates gradually disassembled into monomers, and the aggregation degree decreased obviously. When the DMSO reached more than 90%, all aggregates were dissolved into monomers.

We know that the signal intensity of the PA probe can be explained by the following equation:

P ∝ ΓηthμaF

where Γ is the Grüneisen parameter; η_th is the heat conversion efficiency;³²η_a is the optical absorption coefficient (cm⁻¹); and F is the local optical fluence (J cm⁻²). Among them, the optical absorption coefficient η_a at a certain wavelength can be expressed as below:

ηa = 382cε

where c is the molar concentration; ε is the molar extinction coefficient at a certain wavelength.

We know that the fluorescence intensity in solution can be expressed as

I = 2.3φI010−εlc

where φ is the fluorescence quantum efficiency; l is the path length; c is the concentration.

Combining these equations, the PA signal under certain optical conditions can be expressed as

P ∝ ηth(logI − log(2.3φI0))

When the PA probe and its solution condition are set, the PA intensity has an exponential relationship with fluorescence intensity.

As mentioned above, there is a linear relationship between α_agg and fluorescence intensity. Therefore, we used an exponential function to fit α_agg and PA_{745 nm/690 nm}. As expected, once the α_agg and PA_{745 nm/690 nm} were exponentially related, the R² value was 0.97 (Fig. 2B). For further confirmation, we also calculated the previous published data,²² and the molecule named P18-YVHD also had an exponential relationship with an R² value of 0.93. This means that the exponential relationship between α_agg and ratiometric PA can be further used to detect the aggregation efficiency in vivo.

The cathepsin E responsive PA probe

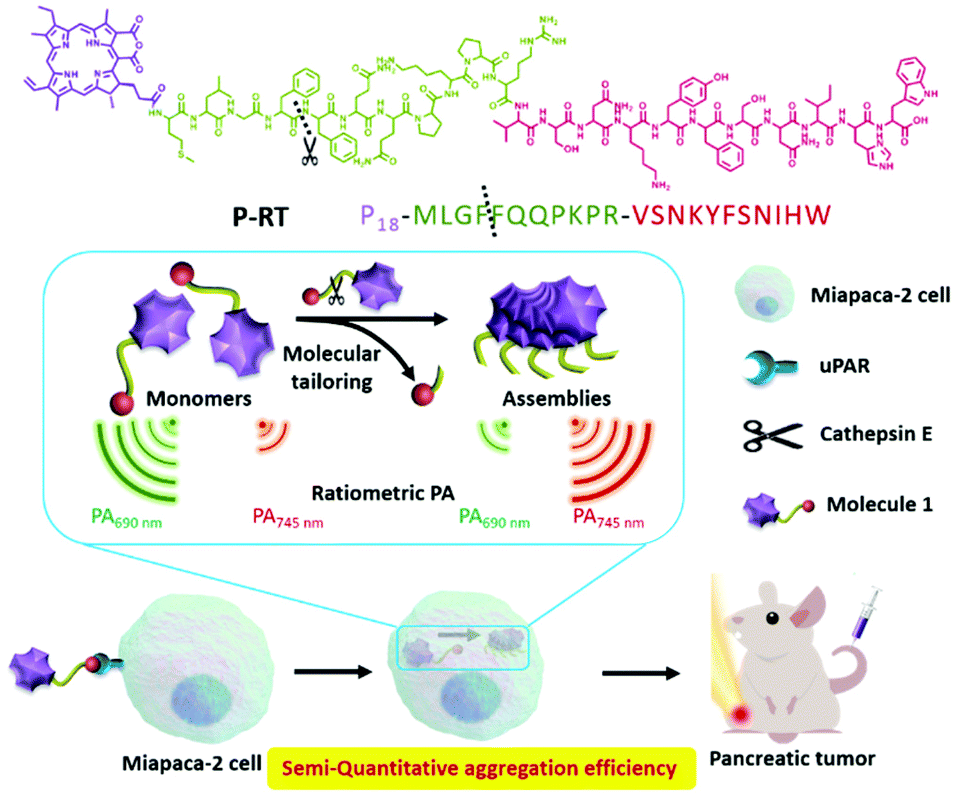

To further verity the in vivo self-assembly of the PA probe, the P-RT with a cathepsin E tailored peptide sequence (MLGFFQQPKPRVSNKYFSNIHW, 100 μM) was incubated with cathepsin E in Tris buffer at 37 °C for 12 h. High performance liquid chromatography (HPLC) and matrix assisted laser desorption/ionization-time of flight mass spectrometry (MALDI-TOF-MS) were used to analyze the cathepsin E tailored residue sequence (Fig. 3A and Fig. S5†). As shown in the figures, the retention time of the peptide (MLGFFQQPKPRVSNKYFSNIHW) was 27.6 min, while the initial peak of the peptide disappeared, and two new peaks appeared at 16.8 min and 18.9 min, respectively. In addition, MALDI-TOF-MS also confirmed the retention peak of peptides and their residues. All peptides were consistent with the designed peptide sequence, indicating that the peptide (MLGFFQQPKPRVSNKYFSNIHW, [M + H⁺] 2724.2, calcd 2723.4) was cleaved by cathepsin E at the cleavage site between F and F to obtain two peptide resides (MLGF, [M + H⁺] 451.1, calcd 450.2; FQQPKPRVSNKYFSNIHW, 2275.9 [M + H⁺], calcd 2275.2).

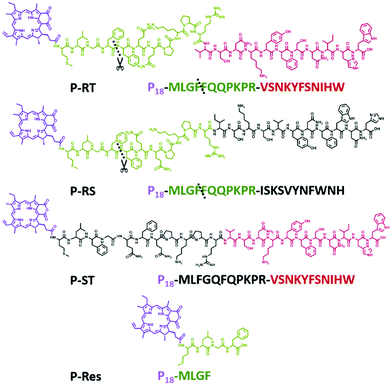

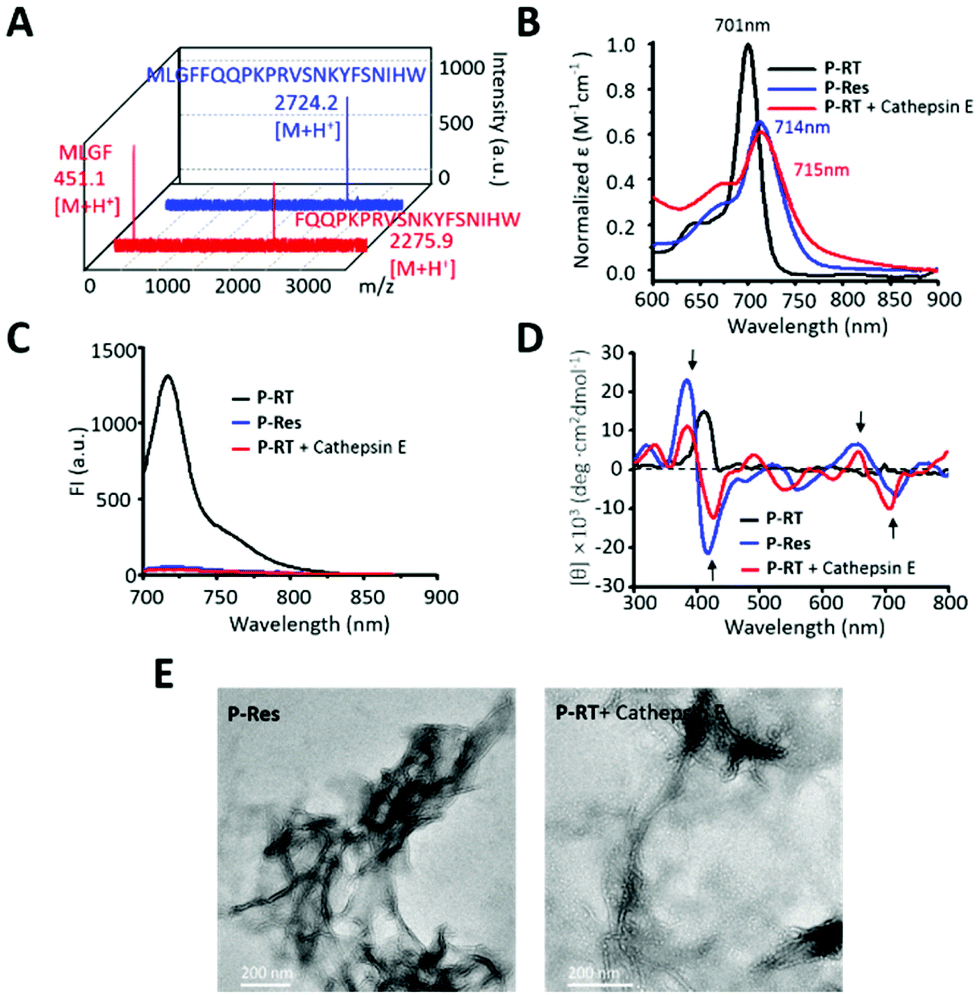

Therefore, the UV-vis, fluorescence and CD spectra of the designed P-RT (P₁₈-MLGFFQQPKPRVSNKYFSNIHW) and synthesized residues of P-RT (P-Res (P₁₈-MLGF)) were determined before and after incubation with cathepsin E in buffer. Similar to P-Res, the tailored residues of P-RT showed similar J-type assembly, with a red-shifted Qy band (Fig. 3B), quenched fluorescence signal (Fig. 3C) and assembled induced structural chirality (Fig. 3D). Moreover, TEM images were used to observe the morphology of aggregates (Fig. 3E). P-Res can be assembled into nanofibers in 1% DMSO solution. Meanwhile, when P-RT was incubated with cathepsin E for 3 h, a similar nanofiber structure could be seen in the TEM image. All the results validated that the designed cathepsin E specific ratiometric PA probe with nanofiber assembly capability worked well in situ.

In in vitro experiments, the PA_{745 nm/690 nm} and corresponding images were obtained. As shown in Fig. 4A, the PA_{745 nm/690 nm} signal of P-RT was relatively low, but after cathepsin E cutting, the PA_{745 nm/690 nm} signal of P-RT was significantly increased close to 1.0, similar to that of P-Res. When we calculated the aggregation efficiency semi-quantitatively through the exponential fitting curve (Fig. 4B), the aggregation efficiency of P-RT was lower than 3%, while the aggregation efficiency of the residues aggregated in situ in the buffer was as high as 97% through cathepsin E tailoring. All the results confirmed our quantitative calculation curve and provided a tool for us to understand the aggregation efficiency in vivo.

Aggregation efficiency in cells

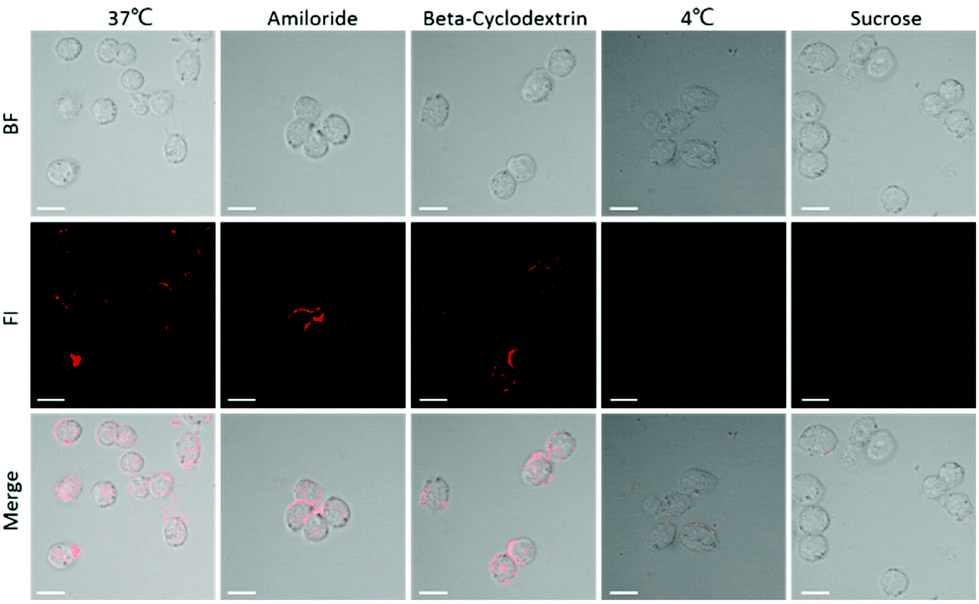

In order to understand the intracellular aggregation efficiency, we first studied the cell uptake pathway of P-ST (P₁₈-MLFGQFQPKPRVSNKYFSNIHW), which was a negative control of P-RT. Both P-RT and P-ST have active target motifs, but P-ST cannot be cut by cathepsin E, so it is always in the form of a monomer. As known, the intracellular bioimaging should consider the interaction of the probe with the cell membrane.^33,34 Firstly, we verified the endocytosis pathway of the designed probe. Based on confocal laser scanning microscopy (CLSM), Miapaca-2 cells and P-ST were subjected to various endocytosis inhibitors (amiloride, 2 mM; beta-cyclodextrin, 5 mM; sucrose, 450 mM) and at different temperatures (Fig. 5). Incubation at 4 °C significantly reduced the fluorescence in cells, indicating that the endocytosis of P-ST into cells occurred in an energy dependent manner. In addition, when treated with sucrose (clathrin-dependent endocytosis), there was almost no fluorescence in cells, which indicated that our PA probe might enter the cell through clathrin-dependent endocytosis.

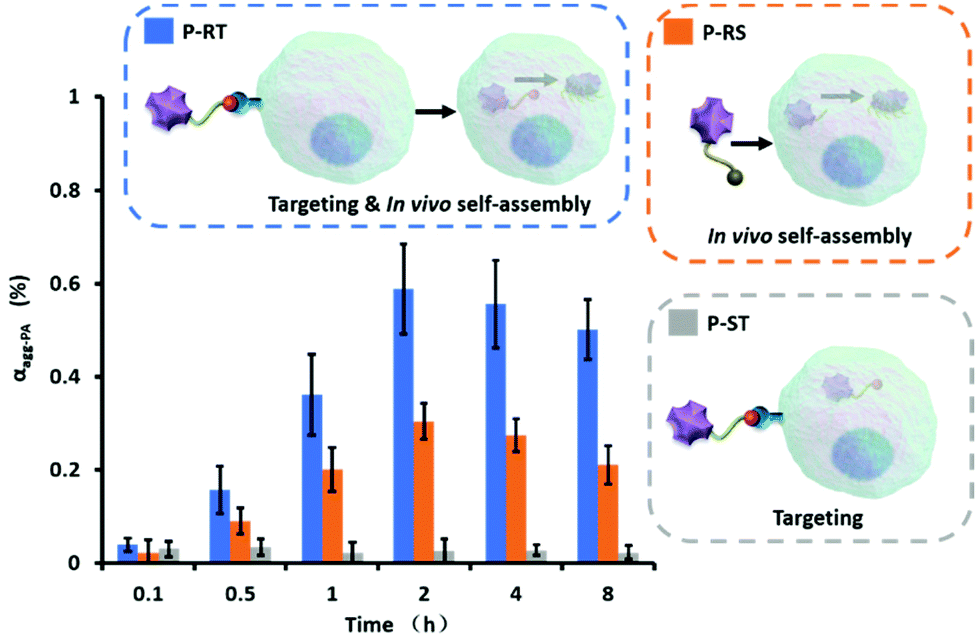

Then, the aggregation efficiency of P-RT, P-RS and P-ST in Miapaca-2 cells was measured in a time-dependent manner. Miapaca-2 cells were incubated with P-RT, P-RS and P-ST (10⁻⁵ M) for 0.1 h, 0.5 h, 1 h, 2 h, 4 h, and 8 h, respectively. Then cells were collected and measured by photoacoustic tomography. According to the design, P-RT first targeted uPAR through the target peptide sequence (VSNKYFSNIHW). Once entered into the cell, these molecules were tailored by cathepsin E and aggregated in situ in cells (Fig. 6). The aggregation efficiency of P-RT (10⁻⁵ M) reached a maximum of 58% at 2 h, and decreased slowly at the next 6 h. In contrast, although P-ST had active targets and entered the cell, there was no molecular tailoring, and P-ST was rarely assembled in cells. From 0 h to 8 h, the average aggregation efficiency of P-ST was less than 3%. For further confirmation, we fitted the concentration-dependent UV/Vis absorption spectra (Fig. S6 and S7†) and calculated the cumulative concentration of different molecules in cells (Fig. S8†). The active targeting mechanism of P-RT and P-ST was similar endocytosis at the initial 1 h, but the retention of the aggregated P-RT in cells from 2 h to 8 h was better than that of P-ST. In addition, the endocytosis of P-RS (P₁₈-MLFGQFQPKPRISKSVYNFWNH) with a randomized target peptide sequence was significantly reduced (Fig. S8†). However, once entered the cell, P-RS can still aggregate with the highest aggregation efficiency of about 30%, which may be due to the lower concentration in the cell. Therefore, active targeting offered high endocytosis, and in situ aggregation was helpful for the retention of molecules in cells. The higher molecular concentration in the cells was also beneficial to aggregation.

Aggregation efficiency in vivo

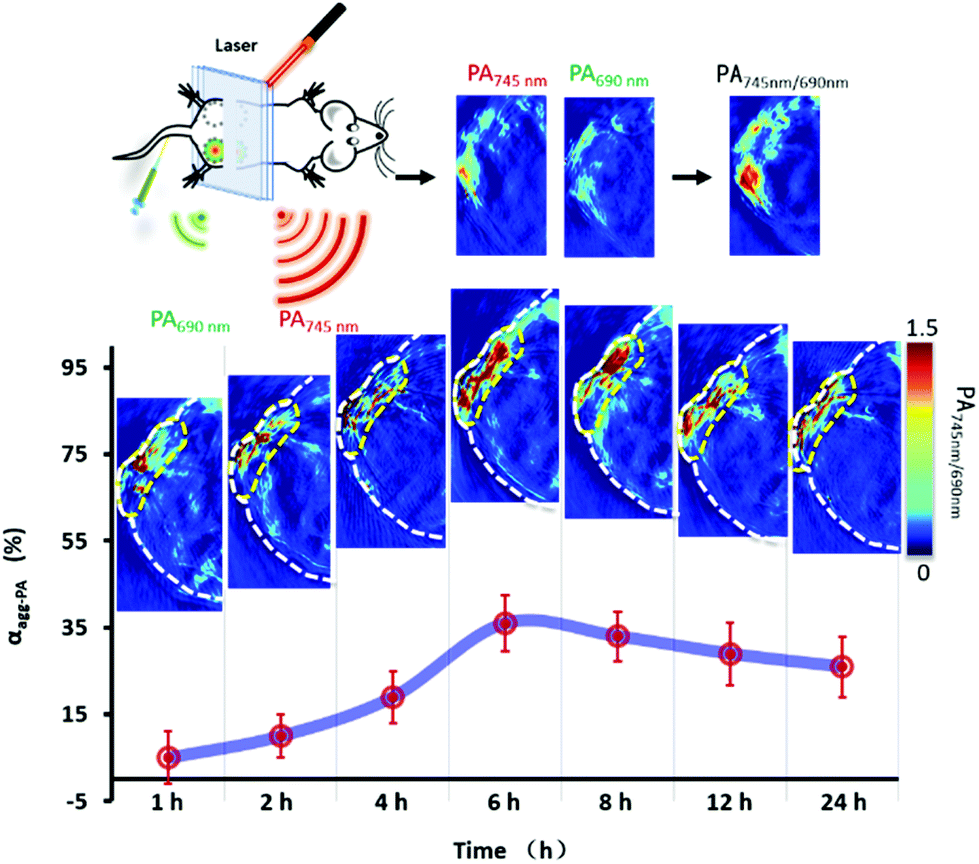

In vivo quantitative bioimaging was very important for tumor diagnosis.^35,36 The aggregation efficiency of the PA probe in vivo was validated in the pancreatic tumor model. Using female BALB/c nude mice as the animal model, Miapaca-2 cells were implanted subcutaneously into the right lateral posterior hip of mice. To simplify the model, P-RT (200 μL, 100 μM) was injected subcutaneously into mice. Post 1 h–24 h of injection, the ratiometric PA images of tumor were obtained (Fig. 7). Then, the tumor location was quantitatively analyzed according to the above exponential fitting curve. The results showed that in the first 6 h, the aggregation efficiency of P-RT increased dynamically, with a maximum of 36% at 6 h. After that, the aggregation efficiency decreased slowly from 6 h to 24 h. Considering the concentration of P-RT trapped in situ (Fig. S9†), we believed that dynamic enzyme tailoring and assembly will significantly affect the aggregation efficiency in vivo, resulting in a different retention effect in vivo. We found that the maximum aggregation efficiency was reduced to 36% and delayed by 6 h compared with the results in cells. This delay may be due to the more complex physiological environment; PA probes need more time to complete aggregation. Additionally, the dynamic metabolism in vivo also interferes with the local concentration and the chance of intermolecular interaction, resulting in the reduction of aggregation efficiency.

Ratiometric PA imaging

According to the literature, the contrast of the ratiometric probe and ratio management images was better.³⁷ The ratiometric PA probes were designed to improve the contrast of PA imaging based on the PA ratio. According to the best detection window of P-RT at 6 h, 3D reconstruction ratiometric PA images provided a clear overview of pancreatic tumor (Fig. 8A). Meanwhile, as a major concern in practical application, we evaluated the cytotoxicity through cell viability assay and acute toxicity through histopathology assays. No significant cytotoxicity was observed in the incubation of Miapaca-2 cells with P-RT, P-RS and P-ST, respectively in a wide concentration range (0–320 μM) for 24 h (Fig. 8B). Furthermore, the major organs (heart, liver, spleen, lungs and kidneys) of sacrificed mice were obtained after injection with P-RT (100 μM, 200 μL) for 48 h (Fig. 8C). No obvious organ damage was found in all H&E staining histopathological sections. Therefore, our PA probe will be a highly biocompatible imaging probe to monitor the aggregation efficiency in vivo.

Conclusions

Monitoring the aggregation efficiency in vivo will help us to better understand the self-assembly process in vivo and improve the strategy. In this work, we developed a ratiometric PA approach to semi-quantitatively calculate the aggregation efficiency in vivo, and the designed ratiometric PA probe can actively target endocytosis and cathepsin E-induced intracellular assembly. The active targeting of P-RT can increase the endocytosis of cells and its sequent assembly can enhance the accumulation and retention of cells. The highest aggregation efficiency of target and assembled P-RT was 58% at 2 h in cells and 36% at 6 h in mice. This novel ratiometric PA method provides us with a semi-quantitative tool for in vivo assembly process monitoring. Our developed ratiometric PA probe will have broad application prospects in the fields of nano-medicine, disease diagnosis and treatment, so that people can better understand the dynamic assembly under physiological conditions.

Experimental section

Preparation and characterization of the photoacoustic probe

All photoacoustic probes and control molecules were synthesized by solid-phase peptide synthesis. The 0.3 mM scale protocol with C-terminal amide protection was used. The Fmoc group of the N-terminal was deprotected with piperidine (20% v/v) in anhydrous N,N-dimethylformamide (DMF) for 15 min. The Kaiser test (ninhydrin, phenol, VC, 1:1:1, v/v/v) was used to determine the deprotection. 4-Methylmorpholine (NMM) and O-benzotriazole-N,N,N′,N‘-tetramethyl-uronium-hexafluorophosphate (HBTU, 0.4 M) in anhydrous DMF were used to activate the carboxyl group of amino acids. In the final step of peptide coupling, purpurin 18 (P18) was treated like an amino acid. The mixture of trifluoroacetic acid (TFA, 95% v/v), H₂O (2.5%), and triisopropylsilane (TIPS, 2.5%) was used as raw materials for resin cracking and amino acid side chain deprotection in an ice bath for 2 h. After the liquid was separated from the resin, it was blow dried with nitrogen. Chlorophyll derivatives were precipitated in anhydrous ether and centrifuged at low temperature. Chlorophyll derivatives were dried in a vacuum. The molecular weight was determined by matrix assisted laser desorption/ionization time of flight mass spectrometry (MALDI-TOF-MS).

Spectral and photoacoustic characterization

P-Res (P18-MLGF) was dissolved in dimethylsulfoxide (DMSO) at a concentration of 10⁻² M. P-Res was then diluted in different DMSO/H₂O mixtures (1%–100%) to a final concentration of 10⁻⁴ M. The UV-Vis spectrum was measured at 300–900 nm by using a Cary100Bio UV-Vis spectrophotometer with 10 mm optical path length. The fluorescence spectrum was detected in the range of 700–900 nm, the excitation wavelength was 680 nm, and the fluorescence spectrophotometer was F-280. The CD spectrum was detected in the range of 300–900 nm using a JASCO J 1500 circular dichroic chromatograph with a path length of 1 mm. The average value of the data was obtained by three tests and was corrected by subtracting the background of the solution. The photoacoustic signal was detected in the range of 680 nm–900 nm by MOST 128 multi-spectral photoacoustic tomography. The PA image was calculated by using software, and the intensity per unit area of PA was obtained.

High-performance liquid chromatography (HPLC)

The peptide (MLGFFQQPKPRVSNKYFSNIHW) was dissolved in Tris buffer (Tris 20 mM, NaCl 150 mM, pH = 7.4) and the concentration of the peptide was 100 μM. The cathepsin E (1 μL) was added to the peptide and reacted for 12 h at 37 °C. Then, a 220 nm membrane was used for filtration and HPLC was used for analysis. The mobile phase was a linear gradient of acetonitrile/H₂O from 5%/95% to 60%/40%, and the flow rate was 1 ml min⁻¹. The samples of each peak were characterized by MALDI-TOF-MS.

Transmission electron microscope (TEM)

P-RT (P₁₈-MLGFFQQPKPRVSNKYFSNIHW) was dissolved in Tris buffer at a concentration of 10⁻³ M. After adding cathepsin E, the sample was allowed to stand for 3 h to get good aggregates. Then 10 μL of the sample was dropped on a copper mesh and the rest was removed by using filter paper after 30 min. The uranylacetic acid solution (20 μL) was then dripped onto the sample for staining. After 5 min, the sample was washed twice with ultrapure water. After drying, the samples were tested by TEM (Tecnai G2 20 S-TWIN).

Cell culture and detection of the cell uptake pathway

Miapaca-2 cells were cultured in DMEM containing 10% fetal bovine serum and 1% penicillin antibiotic. The incubation environment was under a fully humidified atmosphere at 37 °C with 5% CO₂. For cell uptake, Miapaca-2 cells were seeded into CLSM wells at a density of 2 × 10⁴ cells per well. After incubation for 12 h, amiloride (2 mM), beta-cyclodextrin (5 mM), sucrose (450 mM) or PBS was added into wells respectively. They were incubated in DMEM at 37 °C with P-ST (P₁₈-MLFGQFQPKPRVSNKYFSNIHW, 100 μM) for 2 h. Another sample added PBS was incubated at 4 °C for 2 h. After washing thrice with PBS, they were imaged by CLSM (Zess LSM710).

Intracellular aggregation efficiency and endocytosis

When the cell density reached 7 × 10⁶ cells per well, the chlorophyll derivatives (10⁻⁵ M) dissolved in DMEM were added to the well and incubated for 0.1 h, 0.5 h, 1 h, 2 h, 4 h, and 8 h, respectively. After three times of PBS washing, cells were collected with PBS. Then, half of the cells were destroyed by ultrasound and chlorophyll derivatives were extracted by DMSO. The intracellular molecules were quantitatively calculated by the UV-Vis standard curve. The other half of the cells were detected in the agar prosthesis by MOST 128 multi-spectral optoacoustic tomography. The PA signals of 690 nm and 745 nm windows were collected and analyzed.

Aggregation efficiency and accumulation in vivo

Animal experiments were carried out complying with NIH guidelines for the care and euthanasia of laboratory animals of National Center for Nanoscience and Technology Animal Study Committee's requirement and according to the protocol approved by the Institutional Animal Care. Animal experiments were conducted in accordance with the requirements of NIH guidelines for animal care and euthanasia in the laboratory of animal research committee of National Center for Nanoscience and Technology, and the scheme approved by the agency for animal care. Using female BALB/C nude mice as the animal model, Miapaca-2 cells were implanted subcutaneously into the right lateral posterior hip of mice. After the tumor reached 50 mm³, P-RT (200 μL, 100 μM) was injected into the mice in situ. At different injection times (1 h, 2 h, 4 h, 6 h, 8 h, 12 h and 24 h), the PA signals were detected at 690 nm and 745 nm respectively. In the other group, tissue biopsy and DMSO homogenate were used.

Cytotoxicity and pathological section

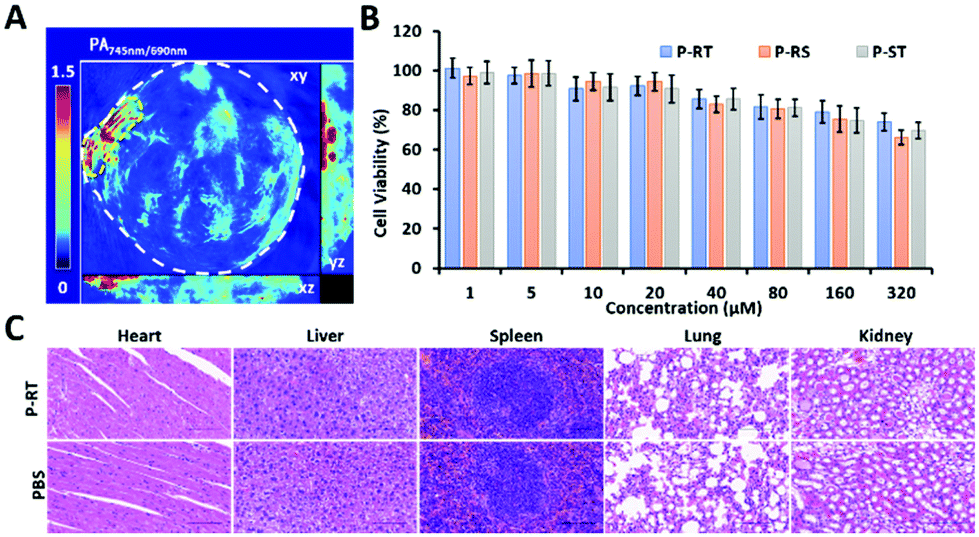

Miapaca-2 cells were inoculated with 7 × 10³ cells per well in a 96-well cell culture plate and incubated with 5% CO₂ at 37 °C for 24 h. P-RT was added to the cell culture plate in DMEM at different concentrations from 0 to 320 μm for further culture for 24 h. After three times PBS washing, cell viability was obtained by CCK-8 assay. The absorbance was detected at a wavelength of 450 nm. P-RT or PBS was injected into the mice through the tail vein. 24 h later, the mice were sacrificed and the pathological sections of the main organs (heart, liver, spleen, lungs and kidneys) were evaluated by H&E staining.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (31671028 and 51873045), Youth Innovation Promotion CAS (2017053) and International Partnership Program of Chinese Academy of Sciences (GJHZ1541).
