Emerging investigator series: thermodynamic and energy analysis of nitrogen and phosphorous recovery from wastewaters†

Stephanie N. McCartney ^a, Nobuyo S. Watanabe ^b and Ngai Yin Yip *^ac
aDepartment of Earth and Environmental Engineering, Columbia University, New York, New York 10027-6623, USA. E-mail: n.y.yip@columbia.edu; Tel: +1 212 8542984
^bDepartment of Chemistry, Barnard College, New York, New York 10027-6598, USA
^cColumbia Water Center, Columbia University, New York, New York 10027-6623, USA

First published on 16th September 2021

---

---

Water impact To attain a more sustainable circular economy model of nutrient management, N and P present in waste streams need to be recovered for reuse. This study quantitatively shows that recovery from nutrient-rich urine can be realized using separation techniques with technologically-achievable energy efficiencies. The sizable global energy savings provide impetus for broad implementation of nutrient recovery from discarded waste streams.

Introduction

Nitrogen and phosphorus are essential macronutrients for global food security and principal components of fertilizers. The prevailing Haber–Bosch process to fix atmospheric N₂ into bioavailable ammonia, NH₃, is very energy-intensive (8.9–19.3 kW h kg-N⁻¹) and accounts for 1–2% of the world's annual energy consumption.^1–3 Likewise, mining of phosphate rock, the dominant method of P production, requires large amounts of energy (0.80–1.66 kW h kg-P⁻¹).^4,5 Furthermore, phosphate deposits are a finite resource, with reserves predicted to last only 50–100 years and production projected to decline after 2033.^6,7 On top of the substantial costs of industrial fertilizer production, energy and chemicals are additionally needed to manage the nutrients downstream, after consumption: nitrogen and phosphorus are pollutants and need to be separated from anthropogenic streams in wastewater treatment plants (WWTPs) before discharge to the environment.^8–12 However, most WWTPs in the U.S. are not equipped with advanced tertiary treatments dedicated to nutrient elimination.¹³ When N and P are not adequately removed, the nutrients are discharged into aquatic ecosystems and can cause eutrophication, harmful algal blooms, and hypoxic dead zones, which devastate the environment and reduce biodiversity.^14–17 These ecotoxic environments can consequently pose public health threats as conventional drinking water treatment is ineffective in removing algal and cyanobacterial toxins.^18,19 The biogeochemical flows of both N and P are, hence, flagged as violating the safe operating space for humanity and pose high risks under the planetary boundaries framework.²⁰

The significant adulteration of natural ecosystems by nutrient emissions patently highlights the critical shortcomings of the current approach for N and P management and starkly underscores the critical need for more sustainable nutrient management.^21–23 The urgency of the problem was endorsed by the National Academy of Engineers, which identified an improved system for nitrogen management as a grand challenge for the 21st century.²⁴ There have been considerable efforts to reduce nutrient emissions from WWTPs,^25–32 but the majority of the methods remove nutrients from wastewater (WW) without capture. This approach still contributes to the inefficiencies of the linear nutrient economy model, where nutrients are produced/extracted at immense costs and excess nutrients in wastewater are treated at an additional expense to avoid environmental and public health concerns. The challenges facing current nutrient management practices offer opportunities for synergistic solutions. A circular economy model advocates for the simultaneous removal and recovery of nutrients from waste-sources.^33–36 N and P captured from wastewater can be recycled back into the food chain to close the nutrient loop, easing the demand for nitrogen fixation and phosphorus mining, and simultaneously alleviating potential harms to the environment and public health. The recovery of nutrients from waste streams for reuse is, therefore, a paradigm shift to a more sustainable approach for nutrient management.

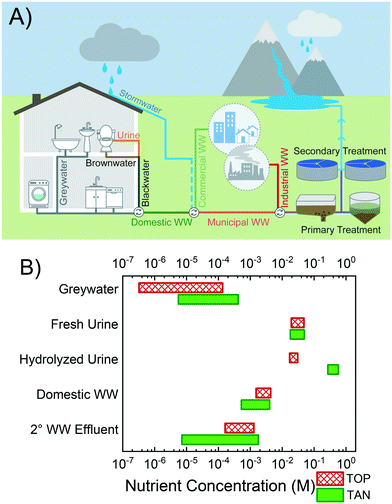

The recovery of nutrients from various waste streams of the cycle, including urine,^9,13,37–48 greywater,⁴⁹ domestic wastewater,^50–54 and WWTP effluent,^55–59 has been investigated in previous studies. A simplified schematic of the wastewater cycle and the principal streams is depicted in Fig. 1A. Note that the main form of nitrogen in fresh urine is urea, CO(NH₂)₂, which undergoes hydrolysis by naturally present urease enzymes to form ammoniacal nitrogen and bicarbonate, yielding hydrolyzed urine after ≈2–7 d.^60,61 As the waste streams undergo biological, chemical, and physical transformations along the cycle and combine with other flows, the compositions and aqueous chemistries are significantly altered.^60,62–68 Similarly, the nutrient content can vary drastically. Fig. 1B shows the concentration range of total ammoniacal nitrogen, TAN, and total orthophosphate, TOP, (shaded green and patterned red bars, respectively) for the different waste streams. The TAN and TOP concentrations span over five orders of magnitude, with the general trend, in increasing order of nutrient content, being greywater < secondary (2°) WW effluent < domestic WW < fresh and hydrolyzed urine. Therefore, the various recovery technologies are targeting sources with widely disparate nutrient contents and with N and P in different chemical forms (e.g., nitrogenous compounds include ammonia, nitrate, nitrite, and urea).

Waste streams that are richer in nutrients should, intuitively, favor recovery efficiency and effectiveness. The advantages of high nutrient content for recovery have been qualitatively discussed in literature,^13,39,69 but there are currently no rigorous quantitative analyses to more precisely valuate the benefits. In contrast, energy analyses had been conducted for other environmentally-relevant separations, such as reverse osmosis desalination, conventional thermal distillation, and membrane distillation,^70–73 to reveal intrinsic limitations and thermodynamic insights of the processes. Applying similar analytical approaches to nutrient recovery can enhance fundamental understanding and shed light on the thermodynamic principles governing the separations, which can in turn inform efforts to capture N and P from the waste streams.

In this study, we conduct a thermodynamic analysis of nutrient recovery from different waste streams. First, governing equations for the theoretical minimum energy required to recover nutrients, determined using the Gibbs free energy of separation, are presented. The minimum energy to recover ammonia and phosphate is quantitatively assessed for different waste streams spanning a range of nutrient content, namely source-separated urine (fresh and hydrolyzed), greywater, domestic WW, and 2° WW effluent. Energy requirements to reclaim products of different nutrient species and concentrations are then examined. The impact of recovery yield on energy demand is evaluated and practical considerations are discussed. The energy to separate and capture other forms of N, specifically, nitrate and urea, is also explored. Next, we analyze the practical efficiency needed from actual processes for nutrient recovery from wastewaters to be competitive with conventional methods of N and P production, i.e., NH₃ fixation by Haber–Bosch and phosphate mining. Finally, the implications of ammonia and phosphate separation from wastewaters are discussed and the benefits of nutrient recovery are highlighted.

Minimum energy of nutrient recovery

Gibbs free energy of separation is the minimum energy required to recover nutrients

In the recovery of nutrients from waste streams, the desired nutrient components of N and P are separated from the dilute feed to yield a nutrient-rich product, leaving a wastewater retentate stream less concentrated in N or P. The theoretical minimum energy required to achieve this nutrient recovery, E_min, is equal to the Gibbs free energy of separation, ΔG_sep, which is the difference between the Gibbs free energy of the product and retentate (resultant streams), and the wastewater (initial feed), as described by eqn (1):

Emin = ΔGsep = NPGP + NRGR − NFGF	(1)

where G is the molar Gibbs free energy, N is the total number of moles in each stream, and subscripts P, R, and F denote the product, retentate, and feed streams, respectively.

The molar Gibbs free energy of a mixed solution is the sum of the partial molar Gibbs free energy of the constituent species:^74,75

G = ∑xiG0i + RT[∑xiln(γixi)]	(2)

where x and γ are the mole fraction and activity coefficient of species i, G⁰ is the Gibbs free energy of formation in the aqueous solution at standard state, R is the gas constant, and T is the absolute temperature.

By applying eqn (1) and (2), the Gibbs free energy of separation per mole of nutrient recovered, ΔḠ_sep, can be expressed as:

	(3)

where subscript 1 denotes the targeted nutrient component, i.e., N or P species. Therefore, with the composition and relative proportion of the feed, product, and retentate streams, the theoretical minimum energy required to reclaim a mole of nutrient, Ē_min, can be determined using eqn (3). Note that for pure products, i.e., solid minerals or unmixed liquids, the product Σxlnγx term vanishes and x_1,P can be replaced with n_1,P, the number of N or P atoms in the chemical structure of the pure liquid/solid mineral product (n_1,P = 1 for all products except for (NH₄)₂SO₄, where n_1,P = 2). Recovery yield, Y, is defined as the fraction of nutrient available in the initial feed captured in the product stream, and can be described by:

	(4)

Note that, again, for solids and pure liquid products, x_1,P is replaced with n_1,P.

Analysis of minimum energy for nutrient recovery

Detailed methodology to determine the molar minimum energy of nutrient recovery, Ē_min, is discussed in the ESI† and briefly presented here. Typical ranges of nutrient species mole fraction concentrations and pH values of the greywater, domestic WW, 2° WW effluent, fresh urine, and hydrolyzed urine feed waste streams are based on literature data (Table S1 in the ESI†),^60,62–67 whereas x_1,P and n_1,P are dependent on the concentration and chemical structure of the product, respectively. Typical concentration ranges of other species in the waste streams of the analysis are presented in Table S2 in the ESI.†^60,62–68 For a certain Y (and corresponding x_1,P or n_1,P), the retentate composition is determined by mole balance and accounting for speciation due to pH and concentration changes. I.e., the approach incorporates the effects of protonation/deprotonation on x of orthophosphates and ammoniacal nitrogen (H₃PO₄/H₂PO₄⁻/HPO₄²⁻/PO₄³⁻ and NH₄⁺/NH₃, respectively). To understand the influence of recovery yield on Ē_min, Y of 0.005, 0.2, 0.5, 0.8, and 1.0 are modeled for select wastewater matrices of 2° WW effluent and hydrolyzed urine. Because the complete water chemistry of most wastewater feeds is not fully know (i.e., species composition and buffering capacity), the analysis is able to only consider the capture of an infinitesimally small amount of nutrient, i.e., Y → 0, such that the feed and retentate compositions are effectively identical. The complete equations utilized to determine the molar Gibbs free energy of separation for all scenarios in the analysis are presented in the ESI,† eqn (S5)–(S20).

All calculations model recovery at T = 298 K. Non-ideal behavior in solutions was accounted for using activity coefficients, γ_i, which were determined using the Davies approximation,³⁷ nonrandom two-liquid method,^76,77 or experimental data reported in the literature,⁷⁸ as described in the ESI.† The G⁰ for each species i in aqueous solution can be found in Table S3 in the ESI.† For pure liquids and solid minerals, the Gibbs free energy of the product is equal to the Gibbs free energy of formation at standard state, G_P = G⁰_f,P (values are presented in Table S4 of the ESI†).

Energy requirement for nutrient recovery

Harvesting ammonia from more concentrated waste streams requires less energy

The molar minimum energy (i.e., per mole of NH₃ captured) required to recover liquid ammonia, NH_3(l), from different waste streams of varying TAN concentrations is calculated using eqn (S5) of the ESI† and presented in Fig. 2. Yields of 1 and 0, representing complete recovery of N in the product and capture of an infinitesimally small amount of N from the feed, respectively, were analyzed (solid and dashed lines). Typical TAN concentration ranges in the various waste streams are shown as floating bars and correspond to the horizontal axis (logarithmic scale). To isolate the impact of [TAN] on Ē_min, the analysis for Y = 1 assumes the feed waste streams to have pH ≪ pK_a of NH₄⁺ (9.24) and inexhaustible buffering capacity, such that the predominant form of TAN in both the feed and retentate is NH₄⁺; the influence of NH₄⁺/NH_3(aq) speciation is considered in the next subsection. We note that the pH values of all waste streams examined in this study, except for hydrolyzed urine, are usually well below 9.24 and, hence, TAN is mostly present as ammonium.^60,62–68

As expected, Fig. 2 demonstrates that to minimize the theoretical minimum energy required to capture NH_3(l), it is advantageous to target waste streams with high TAN concentrations. This trend is consistent with thermodynamic assessments of desalination, where Ē_min for water recovery increases with feed salinity.^70,71 The minimum energy required to reclaim NH_3(l) essentially decreases linearly with increasing logarithm of TAN concentration in the waste stream, i.e., Ē_min ≈ ∝ −log[TAN], primarily due to the lnx terms of eqn (3). The slight deviation from perfect linearity is attributed to the non-linear dependence of γ_NH4⁺ on ionic strength (Davies approximation, eqn (S21) in the ESI†).³⁷ In other words, the reduction in Ē_min is not proportional to the increase in [TAN] of the feed stream. Concentrated streams, such as hydrolyzed and fresh urine, have orders of magnitude more TAN than diluted streams of domestic wastewater, secondary wastewater effluent, and greywater; however, the Ē_min is not orders of magnitude higher when capturing N from the diluted streams compared to the more concentrated streams. For example, hydrolyzed urine is ≈140–520× more concentrated in TAN than domestic wastewater, but the Ē_min for the product of NH_3(l) at Y = 0 is only 1.13–1.22× greater for domestic WW.

Recovery yields of 1 and 0 exhibit similar trends, with Ē_min for Y = 1 approximately 3% higher than Y = 0 across the TAN concentrations investigated. As Y increases, NH₃ is separated from a progressively more dilute feed stream, thus requiring more energy and the averaged molar energy of separation rises. Again, parallels can be drawn to the increasing specific energy of desalination for larger water recovery yields.^15,16 However, the magnitude of Ē_min increase for higher nutrient recoveries is drastically smaller than that for desalination, where the energy requirement almost doubles when Y is raised from 0 to 0.5. Because the Ē_min between complete recovery and capturing an infinitesimally minute amount (i.e., Y = 1 and 0, respectively) differs only by ≈3%, examination of Ē_min for Y = 0 is informative of practical, nonzero recovery yields. Most of the subsequent analyses in this study evaluate Ē_min at Y = 0, while the impact of recovery yield on Ē_min will be discussed in depth in a latter section.

Feed stream pH affects Ē_min by influencing speciation

Ē _min values to recover select ammonia and phosphate products from various waste streams are shown in Fig. 3A and B, respectively. The N products of liquid ammonia, NH_3(l), aqueous ammonia solutions at 10, 5.0, and 1.0 M, and solid precipitate of ammonium sulfate, (NH₄)₂SO_4(s), are common commercial fertilizers.^79–82 Likewise, solid precipitate P products of potassium magnesium phosphate, KMgPO₄·6(H₂O), struvite, NH₄MgPO₄·6H₂O, potassium phosphate, KH₂PO₄, and monoammonium phosphate, NH₄H₂PO₄, are also conventional fertilizers available in the market.^82–89 Because each waste stream can be highly heterogeneous in nutrient content, concentrations of product co-species (e.g., SO₄²⁻ is co-species for the (NH₄)₂SO_4(s) product), and pH, the resultant energy requirement spans a range of values (according to eqn (3)). The top and bottom of the floating bars represent the highest and lowest Ē_min, respectively, for each waste stream and product pair. Detailed Ē_min values for all conditions, calculated using eqn (S5)–(S12),† can be found in Tables S5 and S6 of the ESI.†

As previously discussed, the TAN concentration in the waste stream is a primary factor influencing Ē_min: the minimum energy required to capture ammonia products is generally lower when targeting waste streams of higher [TAN], such as hydrolyzed urine, compared to more diluted streams. Additionally, Ē_min is also dependent on the pH of the waste stream. For a certain waste stream [TAN], Ē_min values for the selected products are lower in N recovery scenarios with higher waste stream pH (Table S5†). As an illustration, Fig. 4 presents Ē_min for products recovered from greywater with [TAN] = 2.11 × 10⁻⁴ M (midpoint of concentration range), but at different pH values.

The Ē_min required to recover 1.0 M NH_3(aq) from greywater at pH of 9.0 is 25.1% less than that at pH of 5.0. Because ammonia is a weak base, which can protonate to form ammonium, the fraction of TAN present as NH_3(aq) rises with increasing pH (eqn (S1) in the ESI†). The standard-state molar Gibbs free energy of formation of NH_3(aq) is higher than that of NH₄⁺ (−26.6 kJ mol⁻¹ compared to −79.3 kJ mol⁻¹, Table S3†) and, thus, the Gibbs free energy of separation is lower for NH_3(aq) than NH₄⁺, as per eqn (3). Hence, the recovery of the N products is thermodynamically more favorable if TAN is present as NH_3(aq) in more basic waste streams. The theoretical minimum energy required to reclaim N from hydrolyzed urine is significantly lower than those of other waste streams (Fig. 3A) because of the two advantages of higher pH and greater TAN concentration. The hydrolyzed urine pH range is 9–9.2, close to or at the pK_a of 9.24 for ammonium, whereas the pH of the other waste streams is mostly ≈5–8.5. Also, [TAN] is 0.270–0.578 M for hydrolyzed urine, at least 67× greater than other N sources aside from fresh urine (still 5.5–32.2× higher). However, the energy benefits for (NH₄)₂SO_4(s) recovery from hydrolyzed urine are less pronounced (Fig. 3A), because N is captured as NH₄⁺. Converting NH_3(aq), the predominant TAN species in hydrolyzed urine, to ammonium increases ΔG_sep and offsets the beneficial G⁰ effect. Overall, waste streams with both high TAN concentration and pH offer the smallest Ē_min to overcome for N recovery; of the waste streams examined here, hydrolyzed urine is the most optimal.

Among the N products evaluated, Ē_min is generally highest for NH_3(l), followed by 10 M NH_3(aq), 5.0 M NH_3(aq), 1.0 M NH_3(aq), and then (NH₄)₂SO_4(s) (Fig. 3A). For the aqueous ammonia solutions, Ē_min decreases with lower product concentration. This is reflected in eqn (S7)† and also intuitively understood: a more dilute product stream requires less separation from the feed and, hence, demands less energy. For the pure products of NH_3(l) and (NH₄)₂SO_4(s), Ē_min is largely dependent on the Gibbs free energy of formation of the product, G⁰_f,P (Table S4 in the ESI†), with a lower G⁰_f,P contributing to a smaller Ē_min. Because ≪ , recovering (NH₄)₂SO_4(s) is thermodynamically more favorable than NH_3(l).

Rational selection of waste stream feed and products minimizes energy for nutrient recovery

Similar trends are also observed for TOP recovery (Fig. 3B and 4). Note that because magnesium precipitates out from urine during hydrolysis,^60,61,90 [Mg²⁺] in hydrolyzed urine is practically negligible and, hence, recovery of Mg-based P products, NH₄MgPO₄·6H₂O_(s), and KMgPO₄·6H₂O_(s), was not analyzed. Higher concentrations of TOP and product co-species (TAN, K⁺, and Mg²⁺) in the waste stream lowered Ē_min. TOP concentrations in the waste streams follow the trend: greywater < secondary wastewater effluent < domestic wastewater < hydrolyzed urine < fresh urine, resulting in Ē_min values largely following the reverse trend, i.e., P recovery from fresh urine generally has the lowest Ē_min. However, one deviation is the separation of NH₄H₂PO_4(s) from hydrolyzed urine. This is due to the low concentration of the product co-species, NH₄⁺, significantly contributing to Ē_min. Although fresh urine is richer in TOP (1.13–1.57×), [TAN] is only 0.067–0.085 that of hydrolyzed urine.

Despite fresh urine having significantly higher [TOP], the molar minimum energies of recovery for struvite, NH₄MgPO₄·6H₂O_(s), and potassium magnesium phosphate (KMP), KMgPO₄·6H₂O_(s), are comparable with the lower Ē_min range for the more dilute streams of domestic WW, 2° WW effluent, and greywater. This is because P is present in struvite and KMP as PO₄³⁻, the least protonated form of phosphate, and a greater portion of TOP in the feed exists as PO₄³⁻ at higher pH values. The pH range for fresh urine (6–7.5) is lower than domestic wastewater and secondary-treated wastewater effluent (6.5–8.5 and 6.8–7.7, respectively) and is considerably below the high-end of greywater (pH = 9). In the recovery of struvite and KMP from fresh urine, the deprotonation of H₂PO₄⁻ (predominant species below pH of 7.2) to PO₄³⁻ increases ΔG_sep, and partially nullifies the benefits of the high [TOP]. Therefore, Ē_min is not substantially lower than other waste streams at higher pH (Table S6†). The impact of pH on Ē_min is further illustrated by Fig. 4, which shows the Ē_min of struvite recovery from greywater at pH = 5.0 and 9.0. The Ē_min at pH = 9.0 is markedly depressed (−33.2%) relative to that at pH of 5.0. As the dominant forms of phosphate at pH = 5.0 and 9.0 are H₂PO₄⁻ and HPO₄²⁻, respectively, less energy is required for the conversion to PO₄³⁻ with the more basic feed stream. This trend is observed for struvite and KMP across the different waste streams (Table S6†) and also corroborated by experimental observations that the two minerals precipitate more readily in higher pH solutions.⁹¹ In contrast, the effect of pH on Ē_min is negligible for KH₂PO₄ and NH₄H₂PO₄, where P is present as H₂PO₄⁻ (Table S6†).

The most thermodynamically favorable products for P recovery are KH₂PO_4(s) and NH₄H₂PO_4(s), followed by NH₄MgPO₄·6H₂O_(s) and KMgPO₄·6H₂O_(s), with Ē_min primarily affected by the phosphate identity (H₂PO₄⁻ or PO₄³⁻) and feed concentrations of product co-species (specifically Mg²⁺). The acid dissociation constants of phosphoric acid are 2.2, 7.2, and 12.4. For the waste streams investigated here, the typical pH ranges between 5 and 9.2. Hence, the predominant phosphate species are H₂PO₄⁻ or HPO₄²⁻. Because the conversion of the predominant phosphate species to H₂PO₄⁻ (no reaction or protonation of one H⁺) needed to form KH₂PO_4(s) and NH₄H₂PO_4(s) requires less energy than the conversion to PO₄³⁻ (deprotonation of one or two H⁺), Ē_min is larger for struvite and KMP. Furthermore, the formation of struvite and KMP requires Mg²⁺ in addition to NH₄⁺ and K⁺, respectively. The separation of Mg²⁺ from waste streams with low [Mg²⁺] adds to the energy cost, hence, contributing to the greater Ē_min for NH₄MgPO₄·6H₂O_(s) and KMgPO₄·6H₂O_(s).

For nutrient recovery from waste streams, it is advantageous to minimize energy requirements, thus a low Ē_min is desirable. The main factors influencing the molar minimum energy for nutrient recovery are: nutrient concentrations in the feed, waste stream pH, and co-species in the product. To minimize Ē_min, waste streams and products can be strategically targeted. Hydrolyzed urine and fresh urine, which contain the highest concentrations of TAN and TOP, respectively, are almost always the most optimal streams for TAN and TOP recovery. However, depending on the product, certain waste streams may be better suited because of the more favorable pH and co-species concentration. Therefore, the selection of product should be informed by the pH, availability of nutrients, and co-species in the specific waste stream.

Impact of nutrient recovery yields on minimum energy of recovery

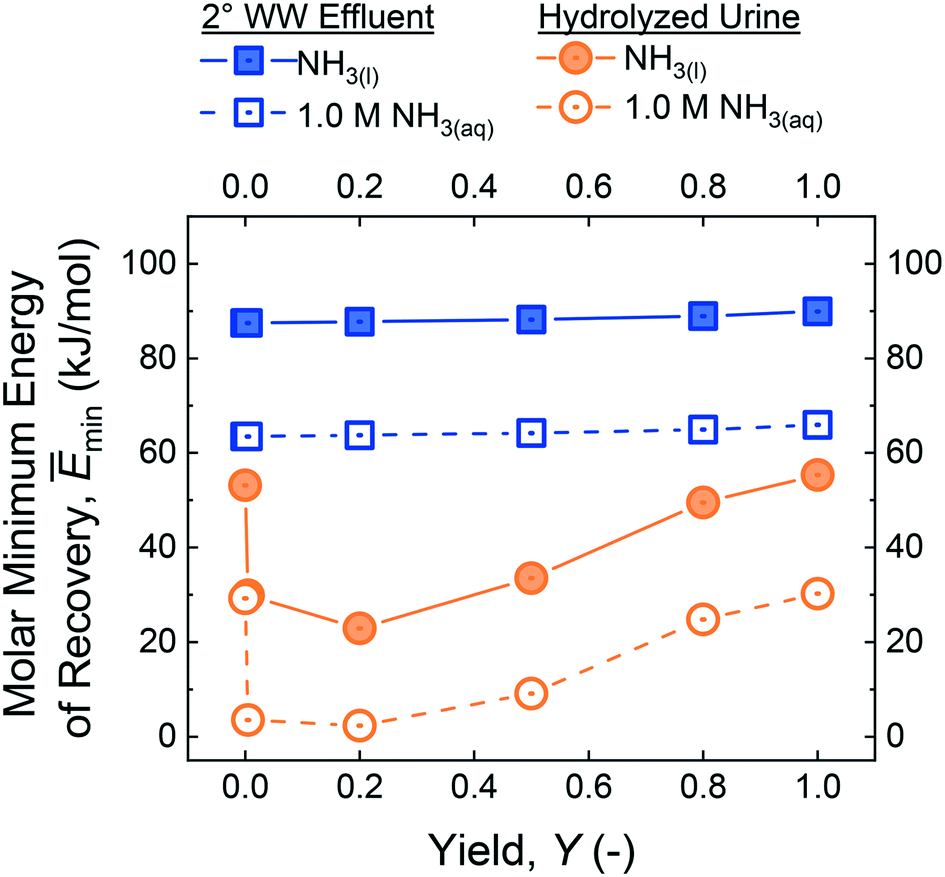

Previous analysis modeled Ē_min for capturing various products from different waste streams at Y = 0. However, actual nutrient recovery will have nonzero recovery yields. Fig. 5 shows the Ē_min of select ammonia products of 1.0 M NH₃ aqueous solution and NH_3(l) (open and filled symbols, respectively) from two waste streams of secondary wastewater effluent and hydrolyzed urine (blue square and orange circle symbols, respectively) as a function of NH₃ recovery yield. As discussed previously, at Y = 0, i.e., infinitesimally small NH₃ recovery, the pH and TAN speciation in the feed and retentate are essentially equal. However, at higher recovery yields, the pH and TAN speciation in the retentate stream differ significantly from the feed stream. Therefore, to calculate Ē_min for Y > 0, the speciation of TAN (i.e., fraction of TAN as NH_3(aq) and NH₄⁺, denoted by α_NH3 and α_NH4⁺, respectively) in both the feed and retentate stream must be considered in conjunction with the TAN material balance (i.e., x_TAN,FN_F + x_TAN,RXNN_RXN = x_TAN,PN_P + x_TAN,RN_R).

For scenarios with secondary wastewater effluent (blue square symbols), the feed stream pH ≪ pK_a, which results in nearly complete predominance of NH₄⁺ over NH_3(aq) (i.e., α_NH4⁺ ≈ 1 and α_NH3 ≈ 0). Because removing basic NH₃ leaves the remaining solution more acidic, the pH of the retentate stream is always lower than the feed stream pH. Therefore, TAN speciation values in the feed and retentate streams for 2° WW effluent are essentially equal, with α_NH4⁺,R ≈ α_NH4⁺,F ≈ 1 and α_NH3,R ≈ α_NH3,F ≈ 0. Increasing Y results in a slight increase in Ē_min for both NH_3(l) and 1.0 M NH_3(aq) recovery. This trend is consistent with Fig. 2, which also simulated waste streams with NH₄⁺ as the predominant form of TAN. Importantly, Ē_min only marginally increases (<4%) between Y = 0 and 1. Thus, actual nutrient recovery applications can take advantage of this by striving for higher yields without significantly raising the theoretical energy requirement.

For hydrolyzed urine (orange circle symbols in Fig. 5), the feed pH is near the pK_a of ammonium, such that α_NH3 ≠ 0. Thus at Y > 0, TAN speciation values in the feed and retentate streams differ significantly, i.e., α_NH3,R ≠ α_NH3,F and α_NH4⁺,R ≠ α_NH4⁺,F. An in-depth discussion of the methodology to account for this differing speciation can be found in the ESI.† In contrast to 2° WW effluent, the trends for Ē_min of NH_3(l) and 1.0 M NH_3(aq) recovery from hydrolyzed urine are not monotonic, but instead exhibit L-shaped rebounds with initial sharp decreases followed by gradual increases. This signifies that reclaiming the first molecule of NH₃ from hydrolyzed urine requires, in theory, more energy than the next molecules until a certain amount of ammonia is recovered and, thereafter, capturing every additional NH₃ molecule requires more energy than the last. In contrast to secondary wastewater effluent, the Ē_min of hydrolyzed urine changes significantly as a function of recovery yield. The distinction between the Ē_min trends of the two waste streams is due to the disparate speciation of TAN in the retentates. For 2° WW effluent scenarios, α_NH4⁺,R and α_NH3,R are effectively independent of Y and, therefore, the concentrations of both NH₄⁺ and NH_3(aq) in the retentate consistently decrease with higher yields. However, for hydrolyzed urine scenarios, the pH of the retentate significantly declines at higher yields and, thus, α_NH4⁺,R increases and α_NH3,R decreases (see ESI† Tables S8 and S9 for pH and speciation in the feed and retentate at different Y, for products of NH₃₍₁₎ and 1.0 M NH_3(aq), respectively). Because the magnitude of the Gibbs free energy of formation for NH₄⁺ is much greater than that for NH_3(aq) (−79.3 and −26.6 kJ mol⁻¹, respectively), NH₄⁺ is the thermodynamically preferred form of TAN in solution. This results in competing factors affecting Ē_min: TAN in the retentate decreases with increasing yield, which drives Ē_min to increase, but this is countered by the reduction in Ē_min as the fraction of TAN present as NH₄⁺ in the retentate increases with increasing yield. At low Y, the latter factor is more dominant, thus explaining the initial dip in Ē_min. With greater Y, retentate pH drops and NH₄⁺ becomes increasingly predominant over NH_3(aq). Beyond a certain point, the former factor dominates and Ē_min increases. Further quantitative analysis and a more detailed discussion can be found in the ESI.†

Nitrate and urea are other forms of nitrogen suitable for recovery

In addition to ammoniacal products of NH_3(l), NH_3(aq), and NH₄SO_4(s), N can be recovered in other forms, such as nitrate, NO₃⁻, and urea, CO(NH₂)₂.^80,82 Nitrate is present in greywater, domestic wastewater, and secondary wastewater effluent (but is only present in negligible amounts in fresh or hydrolyzed urine), whereas urea is excreted in fresh urine (upon storage, the compound hydrolyzes into TAN and bicarbonate and, thus, urea is not present in significant quantities in the other waste streams). Fig. 6 shows the range of molar minimum energies required to reclaim aqueous and solid products containing NO₃⁻ from 2° WW effluent, as well as aqueous and solid urea from fresh urine. Based on complied literature data, the nitrate concentration in secondary wastewater effluent spans from 0.0714–1.42 mM and the urea concentration range in fresh urine is 126–265 mM (252–530 mM-N).^60,62–68 To calculate Ē_min for 1.0 M KNO_3(aq), 1.0 M NH₄NO_3(aq), KNO_3(s), and NH₄NO_3(s) recovery from 2° WW effluent, eqn (S13)–(S16)† were used, respectively; to calculate the Ē_min required to recover 1.0 M CO(NH₂)_2(aq) and CO(NH₂)_2(s) from fresh urine, eqn (S17) and (S18)† were utilized, respectively. Note that, for every mole of product, CO(NH₂)₂ and NH₄NO₃ contain 2 moles of N, whereas KNO₃ has only 1 mole of N.

The recovery of urea products from fresh urine is less energy demanding than the recovery of nitrate products from secondary wastewater effluent. This is attributed to urea being over 100-fold more concentrated in fresh urine than nitrate and the product co-species (NH₄⁺ and K⁺) are in 2° WW effluent. As discussed previously, Ē_min is lower when capturing products from a more concentrated waste stream. For the aqueous products, Ē_min is lowest for CO(NH₂)_2(aq) followed by NH₄NO_3(aq), then KNO_3(aq). For solid products, NH₄NO_3(s) recovery from secondary wastewater effluent has the highest Ē_min. This is because the Gibbs free energy required to form solid NH₄NO₃ from the initial species of aqueous NH₄⁺ and NO₃⁻ in the feed is greater than that for CO(NH₂)_2(s) and KNO_3(s) (Table S10 in the ESI†). Generally, the recovery of 1.0 M aqueous products is thermodynamically more favorable than pure solids. This can be intuitively understood: producing solids requires the separation of all the water from the minerals, whereas less water needs to be removed to yield aqueous solutions. Furthermore, ordering free ions in aqueous solution into a solid crystal lattice incurs an additional entropic energy penalty, which further raises Ē_min. However, there can be exceptions to the rule. Specific scenarios of pH-dependent speciation in the feed and Gibbs free energy of formation of the solid product can yield opposite trends. An example of such a deviation is the higher Ē_min for the recovery of 1.0 M NH_3(aq) than for NH₄SO_4(s) (Fig. 3).

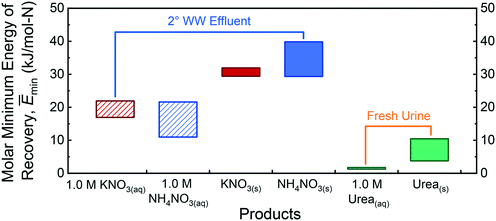

The Ē_min values required to reclaim aqueous nitrate products, 1.0 M KNO_3(aq) and 1.0 M NH₄NO_3(aq), from 2° WW effluent are less than that for 1.0 M NH_3(aq) recovery from hydrolyzed urine, which is the lowest Ē_min for aqueous TAN recovery in Fig. 3. The Ē_min values required to recover solid nitrate products, KNO_3(s) and NH₄NO_3(s), from 2° WW effluent are also comparable to or lower than that for the recovery of TAN product (NH₄)₂SO_4(s) from all waste streams other than fresh and hydrolyzed urine. These comparisons suggest that, in principle, recovering nitrate from 2° WW effluent may be an equally or more favorable alternative to TAN recovery. However, the Gibbs free energy to reduce nitrate to the bio-preferred form of N—ammonia, NH₃—is 591 kJ mol⁻¹.³ The additional energy requirement to reduce the oxidation state of N from +5 to −3 (8 electrons) is an order of magnitude higher than the Ē_min for TAN recovery. The better suitability of NH₃ as a fertilizer and the huge energy cost needed to convert nitrate to ammonia, thus, indicate that targeting TAN over NO₃⁻ would be more prudent for nutrient recovery. Ē_min values required to capture urea as aqueous and solid products from fresh urine are significantly lower than the different TAN product and waste stream pairing examined here. Specific pros and cons of different nitrogen fertilizers aside,^92–94 the theoretically less energy-intensive path provides impetus to pursue the realization of urea recovery from fresh urine.

Presence of other species in wastewater matrix marginally increases energy demand for nutrient recovery

Analyses presented earlier consider the feed streams as simplified solutions containing only species required for the product (i.e., nutrients and co-species), in addition to H₂O, OH⁻, and H⁺. However, actual waste streams are complex water matrices with many other solutes, including different ions and neutral compounds. Na⁺ and Cl⁻ are two prominent ionic species universally present in all the examined waste streams (e.g., NaCl concentrations in secondary wastewater effluent and hydrolyzed urine are 1.41–17.4 and 64.9–119 mM, respectively). To quantify the influence of species passive to the nutrient recoveries, such as NaCl, Ē_min values are evaluated for the capture of NaCl-free NH_3(l) and 1.0 M NH_3(aq) from secondary wastewater effluent and hydrolyzed urine using eqn (S6) and (S7)† (with 0 mM NaCl) and eqn (S19) and (S20)† (with 9.40 and 88.9 mM NaCl in the feeds, respectively). Because the recovered products do not contain the passive species NaCl, the difference in Ē_min signifies the additional energy required to separate the nutrients from Na⁺ and Cl⁻ present in the waste streams. In this analysis, mid-range TAN content, NaCl concentration, and pH of the waste streams were utilized. Detailed results are presented in Table S11 in the ESI.†

The inclusion of passive species in the determination of Ē_min results in only miniscule added energy requirements of 0.10–1.89% across the investigated scenarios. When NaCl in the waste stream is considered, Ē_min is marginally higher due to the additional energy required to separate TAN from Na⁺ and Cl⁻, in addition to H₂O. However, because NaCl is present at substantially lower concentrations compared to H₂O at ≈55 mol L⁻¹ (i.e., the waste streams are >99% water, even for the most saline feeds), this increase is minimal. Therefore, the ubiquitous presence of passive species in the waste streams has a negligible impact on the theoretical energy required to recover N and P nutrients. Nonetheless, the purity of the product and the presence of undesired species, such as Na⁺, are important metrics for the resultant fertilizers.

Energy intensity of N and P recovery from waste streams can be competitive with conventional nutrient production

The energy demand discussed so far is the theoretical minimum, but in practical nutrient recovery processes, the actual energy required to capture N and P will be higher than Ē_min due to inevitable inefficiencies of the recovery techniques. This analysis examines the practical molar energy of recovery, Ē_prac, defined as the energy required to recover a mole of nutrient using a putative practical process with an assumed efficiency of η, i.e., Ē_prac = Ē_min/η. Fig. 7A and B present Ē_prac as a function of η for harvesting TAN and TOP products, respectively, from different waste streams. For each nutrient, two products Ē_min were selected to illustrate a range of energy demand, namely pure liquid ammonia and 1.0 M aqueous ammonia solution for N and solid precipitates of potassium magnesium phosphate and potassium phosphate for P. For the waste streams, a centralized source of secondary wastewater effluent and a decentralized source of either hydrolyzed urine or diverted fresh urine for N and P, respectively, were selected for quantitative comparisons. Mid-range Ē_min values from Fig. 3 were used and recovery yield Y → 0, i.e., an infinitesimally small amount of nutrient is reclaimed from the waste stream. The ranges of energy costs for conventional linear economy approaches to nutrient production, i.e., Haber–Bosch for N-fixation^1–3 and mining and beneficiation for phosphate,^5,8 are also depicted as shaded green regions.

The high energy intensity of nitrogen fixation by the Haber–Bosch process and the relatively low Ē_min signify that TAN recovery from the different waste streams can be competitive across a large range of process efficiencies (lines below the green shaded region of Fig. 7A). Harvesting TAN as 1.0 M NH_3(aq) from hydrolyzed urine requires η as low as ≈7% (dashed orange line, Fig. 7A). Even the more energy demanding recovery of NH_3(l) from secondary wastewater effluent can be competitive with separation techniques of efficiencies >25% (solid blue line). As comparisons, the energy efficiencies of reverse osmosis desalination and liquid–liquid extraction are around 25% (for 10-fold concentration, approximately equivalent to a recovery yield of 0.9).⁹⁵ We note that the Ē_min values utilized for this analysis are for Y → 0. Even for practical recovery yields ≫ 0, the elevation of Ē_min is only marginal at most, as previously discussed (Fig. 2 and 5), and, hence, the increase in required energy efficiencies of the actual processes is expected to be modest.

In contrast, the substantially lower energy cost of conventional P production significantly constrains the energy efficiencies for recovery techniques to be competitive. KH₂PO_4(s) recovery from fresh urine and 2° WW effluent needs η greater than 39% and 59%, respectively, to have lower energy requirements than current phosphate mining and beneficiation (dashed orange and blue lines, Fig. 7B). However, for KMgPO₄·6H₂O_(s) recovery, the energy requirement can, at best, be comparable with the conventional approach for P production, even with highly efficiency methods of η > 60% (solid orange and blue lines). Therefore, the strategic selection of waste stream and nutrient product is imperative to maximize the chances of success for competitive phosphate recovery.

Implications

A circular economy espouses cyclical material flows.⁹⁶ The approach, hence, promotes the recovery of nutrients from discard streams for reuse, to lower industrial N production and P mining from the current unsustainable levels, and concomitantly protect aquatic environments from harmful N and P emissions. To realize viable implementation, the methods for nutrient recovery from waste streams must be competitive with existing practices across key metrics, including energy requirements. This study analyzed the thermodynamics of the separations to identify the minimum energy requirements for various nutrient recovery schemes employing different waste streams as the feed, targeting diverse fertilizer products, and achieving a range of recovery yields. The analysis quantified lower theoretical energy intensities of N and P recovery from nutrient-rich sources, such as diverted fresh and hydrolyzed urine, and indicates that waste stream pH and speciation of components are important factors affecting the separation that need to be considered in the product selection and design of actual nutrient recovery processes. The analytical approach for thermodynamic evaluation presented here can inform the strategic selection of waste stream, fertilizer product, and recovery yield, to enhance the competitiveness of nutrient recovery on the energy-intensity metric. The specific results and/or the general approach for determination of energy requirements presented here can be employed in life-cycle assessments to more comprehensively evaluate the environmental impacts associated with all the stages of nutrient recovery from waste streams.

The study also sheds light on the potential practical energy requirements of actual nutrient recovery using technologies with various efficiencies. Importantly, the separation processes need to operate above certain efficiencies for energy demand of N and P recoveries to be lower than the conventional linear economy production methods, i.e., Haber–Bosch for N fixation and phosphate rock mining. For instance, ammoniacal nitrogen recovery from hydrolyzed urine, generally the least energy-intensive TAN reclamation among the scenarios investigated here, only requires efficiency >7%. The use of urine as the feed source has additional benefits of reduced pathogen and heavy metal concentrations compared to other waste streams.^69,97,98 Further, urine contains approximately 80% and 50% of the N and P in human excretions, respectively.^69,98 Thus, N and P recovery from urine can enable significant reductions in nutrient loading to WWTPs and, ultimately, aquatic environments. Compared to nitrogen recycling, phosphorous reuse is more challenging. Because concentrations in the waste streams are inherently lower and typical fertilizer products are pure solid minerals, the theoretical minimum energy of phosphate recovery is significantly greater. The relatively smaller energy cost of current P mining practices further compounds to the difficulty of the task, necessitating recovery processes to have higher efficiencies in order to be competitive. Technologies with energy efficiencies >39% are needed even for the least demanding orthophosphate separation and capture from fresh urine. However, with phosphate reserves unceasingly depleting and high-grade ores rapidly exhausted, energy expenditures for mining are expected to surge.^7,99 Furthermore, nutrient recovery has the additional benefit of environmental protection. Therefore, P recovery from waste streams will likely become increasingly attractive compared to the conventional linear economy approach. Nevertheless, the development of more energy efficient technologies will enhance the accessibility of nutrient recovery from waste streams.

To put in perspective the benefits of a circular economy approach for nutrient management over the existing linear economy model, we performed a first-order estimation of the potential energy savings achievable through supplementing current fertilizer production with nutrient recovery from waste streams. In 2017, the International Fertilizer Association estimated global nutrient demands of 7930 × 10⁹ mol-N and 148 × 10⁹ mol-P.¹⁰⁰ Given the respective concentrations of N and P in hydrolyzed and fresh urine, the world population of 7.6 billion in 2017,¹⁰¹ and 1–2 L d⁻¹ of urine produced per person, around 748–3208 × 10⁹ mol-N and 54–267 × 10⁹ mol-P were excreted in urine annually. Therefore, in principle, 9–40% and 36–180% of the N and P fertilizer markets, respectively, could be supplemented by TAN and TOP reclaimed from urine. The recovery of half of the available TAN in hydrolyzed urine as 1.0 M NH_3(aq) using techniques achieving 50% efficiency can notionally reduce the global energy demand for industrial N production by 4.6–20.0%. Similarly, using recovery technologies that are 50% efficient to capture half of the TOP in fresh urine as KH₂PO_4(s) can presumably reduce the energy required to produce P fertilizer by 4.0–15.9%. The sizable energy savings and significant environmental benefits of capturing N and P from waste streams, particularly urine, for reuse provide compelling justification for the broad implementation of nutrient recovery.

Conflicts of interest

​There are no conflicts to declare.

Acknowledgements

This material is based upon work supported by the National Science Foundation under Grant No. 1903705 and the Science Pathways Scholars Program of Barnard College. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation or Barnard College.
