Elucidating morphological effects in membrane mineral fouling using real-time particle imaging and impedance spectroscopy†

Chidiebere S. Nnebuo , Denise Hambsch and Oded Nir *
Department of Desalination and Water Treatment, Zuckerberg Institute for Water Research, Jacob Blaustein Institutes for Desert Research, Ben-Gurion University of the Negev, Sede-Boqer Campus, Midreshet Ben-Gurion, 84990, Israel. E-mail: odni@bgu.ac.il

First published on 12th May 2022

---

---

Water impact We present the first use of in-line microscopy and real-time particle imaging as an effective technique for studying mineral fouling in membrane filtration. Complementary use of this technique with impedance spectroscopy delineates mechanisms governing mineral fouling and its morphological effects in wastewater effluent nanofiltration. This study provides insights on possibilities to control mineral fouling limiting sustainable high recovery effluent nanofiltration.

1. Introduction

Recycling of wastewater has a vital role in tackling global water scarcity, as the effluent is a largely untapped water resource with a stable supply year-round.^1–5 However, wastewater effluent contains various persistent contaminants that pose a risk to public health and the environment.^6–9 These contaminants may include excess phosphorus, emerging/trace organic contaminants (ECs/TrOCs) such as pharmaceuticals and personal care products (PPCPs), endocrine disrupting compounds (EDCs), trace elements,⁹ steroid hormones, surfactants, industrial chemicals,¹⁰ pesticides and inorganic salts.⁶ Since conventional wastewater treatment plants cannot properly remove these contaminants,^10,11 it is widely acknowledged today that further treatment is needed for sustainable reuse and safe discharge of tertiary effluent.

To attain various water quality requirements necessary for different wastewater recycling uses, membrane processes like reverse osmosis (RO) and nanofiltration (NF) have emerged as the best available technology.^6,11–14 RO membranes reject most dissolved molecules and thus can bring the tertiary effluent to drinking-water quality level, enabling potable use, either directly (e.g., Singapore) or indirectly through aquifer recharge (e.g., California). NF membranes remove all microorganisms and most of the organic micropollutants and dissolved phosphorus (depending on membrane type). Therefore NF-treated effluent can be exploited for non-potable uses such as irrigation, rehabilitation of water supply to natural water bodies,^1,7 and creating artificial water bodies for recreational activities or ornamentation. While RO is the standard for potable reuse of tertiary effluent, using NF membranes offers some leverage over RO membranes in non-potable reuse; including lower operating pressure, tuneable selective removal of salts/solutes, and the availability of more robust membrane materials.^13,15,16 Therefore, in light of the global increase in wastewater reuse and stricter effluent discharge regulations, the application of RO and NF processes for wastewater treatment is expected to increase.

A key drawback to membrane processes application to wastewater recycling is the high cost of retentate stream management.^17–20 A retentate stream of RO/NF applied to wastewater, typically 10–30% of the feed water volume, contains the various contaminants removed from the effluent at higher concentrations. Therefore, there is a need to minimize the retentate volume by operating at a higher permeate recovery ratio to achieve cost-effective and sustainable RO/NF processes. However, the recovery ratio in effluent NF/RO is currently limited by chemical fouling, mainly caused by the precipitation of calcium phosphate (Ca-P) and calcium carbonate (CaCO₃) minerals,²¹ reaching supersaturation when concentrated in the retentate. Commonly used strategies for scaling control can be grouped into (a.) scalants removal by pre-treatment of feedwater (b.) scaling inhibitors use (c.) process-based strategies.²² While, CaCO₃ scaling can be effectively controlled by adjusting the pH and use of antiscalants,²³ Ca-P minerals could precipitate at pH < 6, and no effective antiscalants are currently available for controlling Ca-P fouling.^21,24–26 Developing novel solutions calls for a better understanding of the chemical fouling mechanisms of these scalants during effluent filtration.

Mineral fouling occurs when sparingly soluble salts are rejected by the membrane, and consequently, their concentration increases in the retentate until it reaches a supersaturation level that is sufficiently high to induce precipitation.²² Supersaturation is further increased near the membrane surface due to concentration polarization (CP).^14,25,27,28 The evolution and dynamics of mineral scaling are influenced by several factors including, pH,²⁹ flow velocity,²⁸ Ca/P ratio, presence of other salts (Mg²⁺ for CaCO₃),^30,31 operating pressure,²⁸ physicochemical membrane surface properties,³² and ion rejection rate.³³ Mineral fouling can progress through homogeneous-like precipitation/crystallization in the bulk or heterogeneous surface crystallization.^14,34,35 Mineral particles formed in the bulk may deposit on the membrane surface to form a cake layer, whereas, in surface crystallization, the scaling layer grows laterally on the membrane surface. Tzotzi et al. (2007)³⁶ identified heterogeneous-surface crystallization as the primary mechanism for CaCO₃ NF scaling of tap water, while Xu et al. (2010)³⁷ reported colloidal fouling as the primary mechanism of Ca-P salt in nanofiltration of effluent. While both routes can hinder filtration performances, removing a scaling layer is typically more challenging or even not practical.²⁵

Although mineral fouling is affected by processes occurring both in the retentate and on the membrane surface, there are little or no reports on parallel measurements of these processes. Such data can, for instance, delineate between scaling and particulate fouling. Moreover, little or no attention was given to the role of mineral morphology in effluent nanofiltration. Elucidating morphological effects can be challenging, especially for Ca-P minerals, including multiple possible phases of different morphologies. We used a novel combination of in-line real-time particle microscopy and in situ electrochemical impedance spectroscopy (EIS) to address these knowledge gaps. We conducted nanofiltration experiments, where we gradually added scaling ions to simulate the increase in supersaturation and the accumulation of crystal mass associated with mineral fouling. The data collected from these novel systems, together with water and salt permeation data and post-filtration electron microscopy, elucidated the underlying micro-scale phenomena and the mechanistic differences between the two mineral types studied here. These differences affected the membrane performance and pointed toward different mitigation methods for Ca-P and CaCO₃ mineral fouling. Additionally, we used the extensively studied CaCO₃ mineral fouling to validate and distinguish its differences from Ca-P's mineral mechanisms and morphological effects as delineated by our novel technique.

2. Materials and method

2.1. Materials

The following chemicals were obtained from Merck company U.S.A.; MgSO₄·7H₂O; KCl; CaCl₂·2H₂O; NaCl; Na₂HPO₄·2H₂O; NaH₂PO₄·H₂O while NaHCO₃ and nitric acid (70%) were obtained from Bio-lab company Israel; AnalaR BDH Laboratory Supplies Israel supplied Na₂HPO₄; Sigma Aldrich supplied NaH₂PO₄. All chemicals were of analytical grade. Na₂HPO₄ and NaH₂PO₄ were used to make a phosphate buffer of 0.1 M (at a pH 7) in the ratio of 0.65:0.35. The phosphate (P) buffer was used throughout the experiments for membrane integrity P rejection tests. Polyethersulfone (PES) ultrafiltration (UF) membranes with molecular weight cut-off (MWCO) of 20 kDa were obtained from Sterlitech U.S.A; polydiallyldimethylammonium chloride (PDADMAC) MWCO = 400–500 kDa and poly(styrenesulfonate) (PSS) MWCO = 1000 kDa were also purchased from Sigma Aldrich while deionized (DI) water <2 μS cm⁻¹ was used during the experiments. The procedure for layer-by-layer coating of PES membrane into an NF polyelectrolyte multilayer membrane (PEMM) is available in the ESI† S1.0. NF-PEMM were used in this study for its competitive advantages over commercial NF membranes like: backwash potential; tuneable monovalent/divalent ions selectivity; mechanochemical stability at extreme pH ranges (acid cleaning); and regeneration-ability.^38–40 Due to its selectivity, divalent cations (Mg²⁺, Ca²⁺) and some monovalent ions (Na⁺, K⁺, Cl⁻) are partially permeated, thus contributing to both fouling control and broad range permeate reuse (agriculture, drinking, etc.) in a high water recovery wastewater effluent filtration. Unlike commercial membranes where precipitation must be avoided, for NF-PEMM membranes, some precipitation can be allowed during filtration due to their high stability during different cleaning procedures.

2.2. V19 particle view microscope

V19 Particle view™ Mettler Toledo AG (U.S.A) is a probe-based video microscope and an in-line in situ tool for real-time monitoring of the particle development in the feed during filtration. Particle V19 (iC PVM) measurement is a particle vision measurement (PVM) technology – a non-invasive tool that can capture and visualize particle development in real-time. iC PVM emits a laser that illuminates the particles within the microscope probe window, and particles reflect the laser into the probe. The probe captures the reflected image through its camera. Each captured image has a known brightness and intensity, with the ratios of the former and later giving the reflectivity of the system as relative backscatter index (RBI). iC PVM software calculates the RBI, and its analysis with captured images gives the changes in the particles' shape, size, and concentration. Functional specifications of Particle view V19 are 1300 μm × 890 μm (±50 μm) field of view, >2 μm optical resolution, 1500 × 1024 pixels image resolution, and eight pulsed laser diodes (4 front; 4 back) illumination (Fig. S8†). Settings used during the experiment are: front light with auto adjust, the focus was moved 100 μm away, with sharpening and enhance features selected.

2.3. Filtration experiments

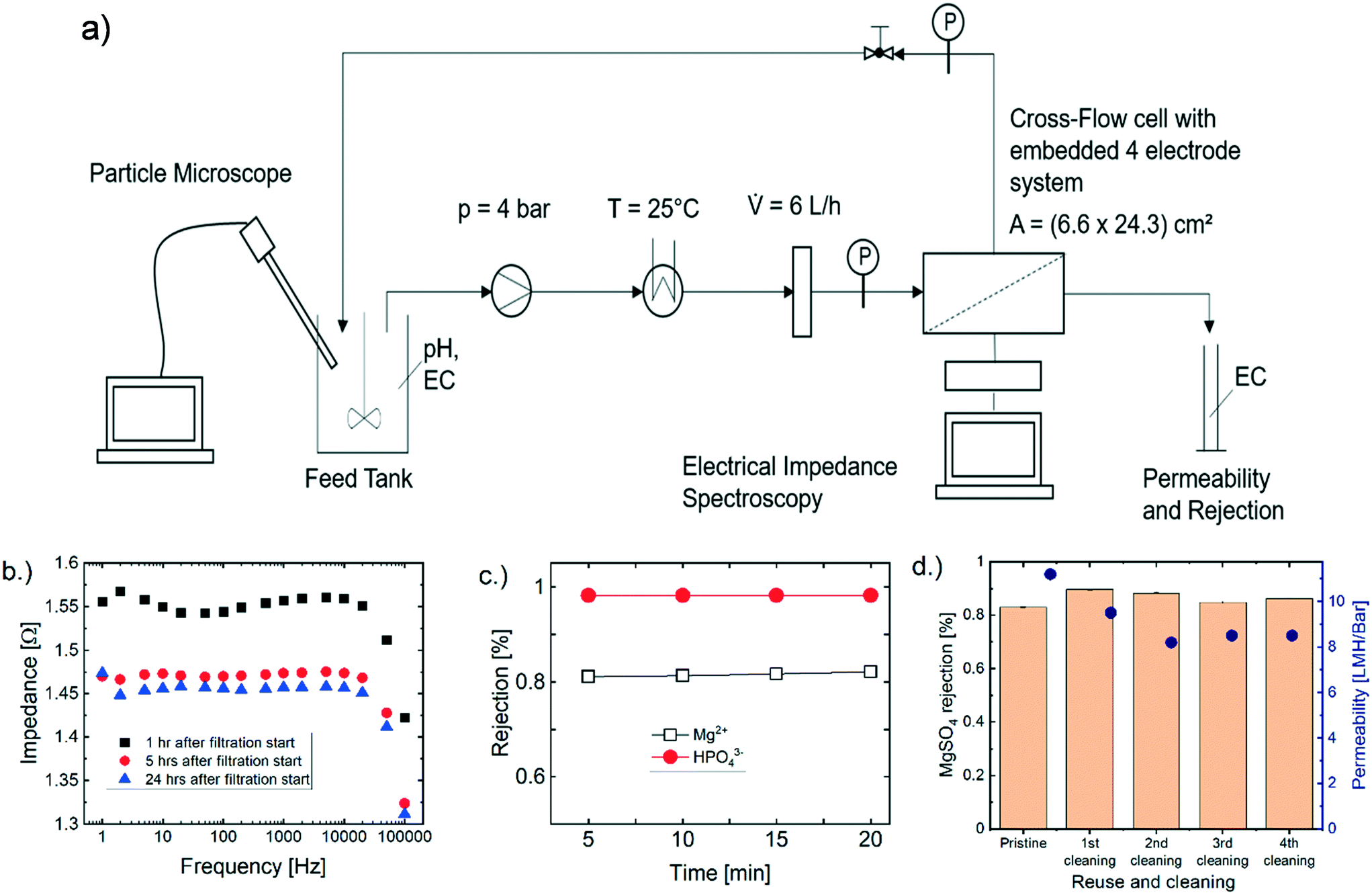

All experiments were performed in full recirculation mode, with permeate and retentate recycled into the feed tank. Concentrated synthetic wastewater effluent according to Shafdan composition⁴¹ (Table S3†) was used. Experiments were performed in three stages: (i.) compaction filtration using DI for 18 hours to achieve stable flux and minimize sample and reference noise of the impedance spectra; (ii.) conditioning filtration – DI water was replaced with feed solution (concentrated synthetic effluent) without the scaling salt components, and filtration runs for 2 hours; and (iii.) filtration experiments – started with the addition of the scaling salts (Table S4†) accordingly. PHREEQC was used to model similar mass-based precipitation potential for both scalants in each experiment to determine the concentration of added scaling salt components. Details about PHREEQC are available at S2.0.† Experimental set-up (Fig. 1a) had a 2 L feed tank stirred with a mechanical stirrer set at 200 rpm throughout the experiments. The feed tank was connected via a gear pump (FluidOTech) to the INPHAZE™ filtration module, which contained the membrane. The pump was coupled with a frequency converter (EDS1000 Inverter, ENC), enabling the adjustment of the feed flow rate. Before entering the filtration module, the solution passed through a customized chiller (MRC), keeping the temperature at 25 ± 1 °C. Two gauges at the inlet and outlet of the module measure the transmembrane pressure (TMP). TMP at the flowcell's outlet could be regulated by a back-pressure valve (Swagelok) from 0 to 7 bars. Additionally, the retentate flow was monitored by a rotameter type flowmeter (ASV Stubbe).

The membrane sample size for the crossflow-chamber of the INPHAZE™ filtration module was 243 mm × 66 mm, giving an effective membrane area of 0.016 m². The INPHAZE™ is a high-resolution EIS with impedance range: 0.1–10¹¹ Ω, frequency range: 10⁻³–10⁶ Hz, phase resolution: 0.001°, and magnitude resolution: 0.002%. The INPHAZE™ filtration module is connected with a four electrodes system which is connected to the spectrometer unit and in turn connected to a computer. Detailed description of the EIS crossflow cell can be found at S5.0.† Our focus in using EIS was to investigate dynamic scaling processes occurring over relatively short timescales. Therefore, impedance measurements analysis was based on a single frequency, 5 Hz (Fig. 1b), in which the dependency of impedance on frequency was weak (phase was almost zero). Therefore, at this frequency, the EIS value can be considered as pure electric resistance. The same approach was applied for membrane fouling in previous studies.^42,43 The pressure for all experiments was constant at p = 4 bars with a feed flow rate of = 6 L h⁻¹. The experiments were modified according to Fig. S3 and S4† to study different aspects of scaling. A summary of differences in the experiments can be found in Table S5.† Fig. S5† shows the experimental cycle used for all experiments.

3. Results and discussion

Following compaction and pre-conditioning stages, the filtration stage commenced with additions of 7 aliquots of CaCO₃ (CaCl₂/NaHCO₃; 8 mM each) or Ca-P (CaCl₂/Na₂HPO₄; 6 and 4 mM each from 1 M stock solutions) salts respectively at 20 minutes intervals to the feed tank during 4 h filtration run for the high supersaturation experiments. These main experiments were repeated with reproducible results (Fig. S15 and S16†). Modifications to the main experiments were made to the experimental procedure to investigate the different stages of fouling. Permeate flux, observed salt rejection, electrical conductivity (EC), electrical impedance spectroscopy, and in situ online imaging (RBI and images) of crystal evolution in the feed tank were recorded in real-time during all the filtration experiments.

3.1. CaCO₃ mineral fouling at high supersaturation

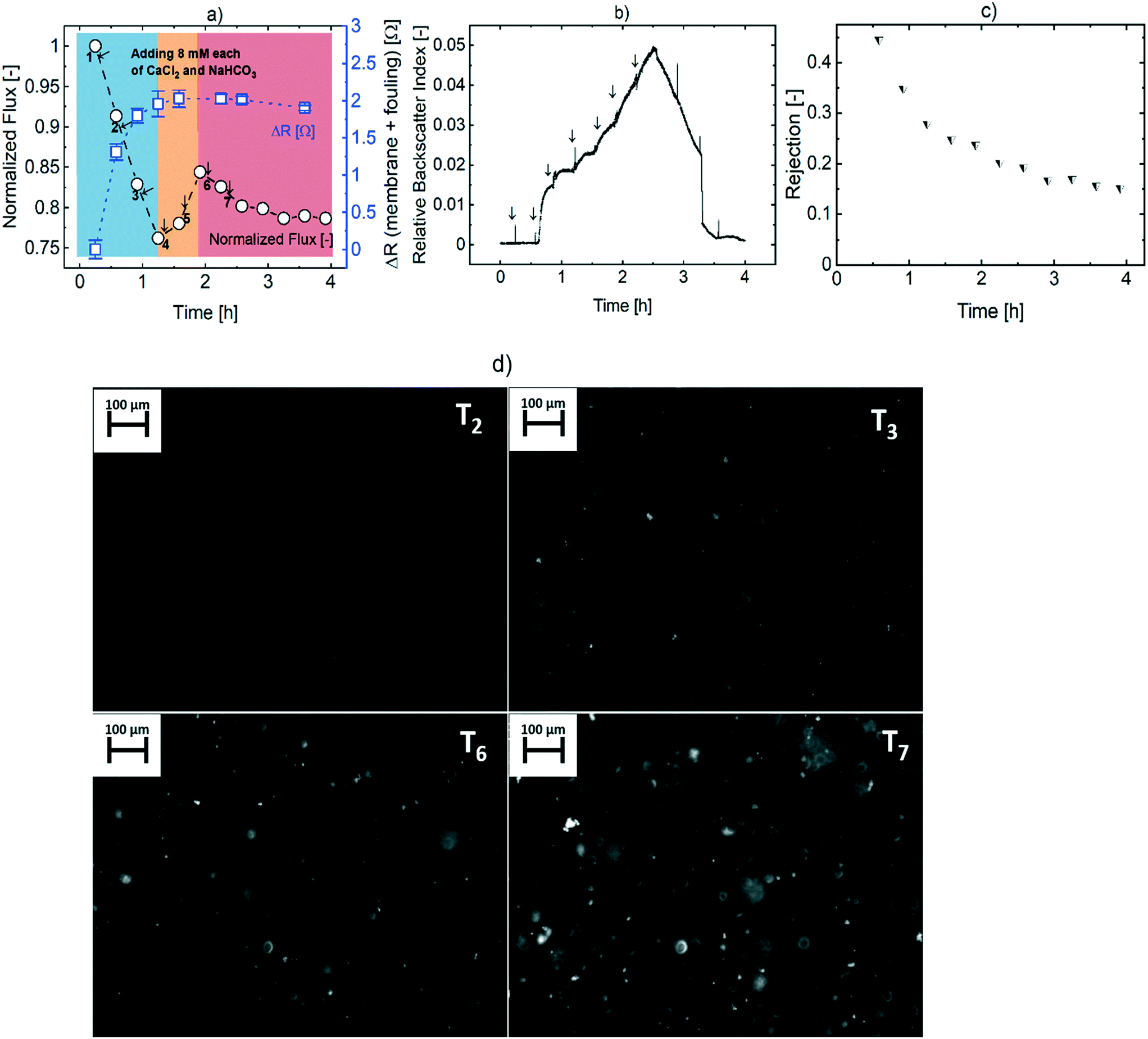

Three distinct stages in the evolution of normalized flux and electrical resistance (Fig. 2a) appeared during the filtration of synthetic effluent supersaturated with CaCO₃. This observation is consistent with data obtained in repeat experiments (Fig. S15†), indicating the reproducibility of the experiments. In the first stage (t ∼ 0–1.2 h), the flux decreases sharply by 25%, while at the same time, the electrical resistance of the fouling layer increased from ∼0 to 1.95 Ω. In the second stage (t ∼ 1.2–1.9 h), the flux increased by 8.0%, while the electrical resistance of the fouling layer increased moderately, reaching a peak of 2.02 Ω. In the third and final stage (t ∼ 1.9–4 h), the flux decreased moderately by 6.0% until t = 3.35 h and remained unchanged until the end of the experiment (4 h). During that time, the electrical resistance of the fouling layer decreased slightly, reaching ∼1.9 Ω—this complex behaviour of flux and electrical resistance hints that different fouling mechanisms were in action during filtration. Using real-time imaging (Fig. 2d) and light scattering (RBI) (Fig. 2b) of mineral particles in the recycled feed solution in combination with the real-time electrical resistance and flux measurements can underpin the dominant fouling mechanisms at each stage.

Our results indicate that the first stage of fouling was dominated by CaCO₃ scaling, i.e., the increase in fouling layer resistance is typical to scaling⁴⁴—the formation of a rigid crystalline layer that completely blocks water and ion transport through the impacted membrane surface fragment. Accordingly, the RBI (Fig. 2b) remained constant in the first 0.5 hours, and no particles were observed in the feed tank by the in-line microscope (Fig. 2d-T₂). The sharp increase in RBI after 0.5 h is likely due to the formation of sub-micron crystal clusters (too small to be captured in images), marking the beginning of homogeneous precipitation. These tiny particles were bound to accumulate on the membrane surface and increasingly contribute to both electrical and hydraulic resistances together with the scaling layer, which was likely still the dominant mechanism at t ∼ 0–1.2 h.

At the second stage, t ∼ 1.2–2 h, the results indicated a gradual transition from mineral scaling to particulate fouling. The transition was driven by the increase of CaCO₃ crystals size, as apparent from the PVM images (Fig. 2d at T₃ and T₆). The progress of the bulk crystallization process is also indicated by the linear increase in RBI at ∼1.2–2 h. A surprising increase in permeate flux was observed at this stage in two out of three repetitions, while at the third repetition, a plateau in flux was recorded (Fig. S15b†). We attribute this trend reversal (or plateau) to further growth of the previously (t ∼ 0.6–1 h) deposited sub-micron crystals, since larger particles are more affected by shear-induced diffusion.⁴⁵ It should be noted that this phenomenon is highly dependent on random coverage pattern in the scaling onset and thus occurs at different times and magnitudes. Nevertheless, the flux trend change indicates a transition to a different fouling mechanism. The flattening of the fouling layer electric resistance curve (Fig. 2a and in S15†) further supports the transition to the deposition of a cake layer comprising larger particles and consequently larger average pore size with higher ion conductance.

In the third stage, t ∼ 2–4 h, our results suggest a complete shift to a particulate fouling regime. This was expressed in a milder decrease in flux with time relative to the 1st stage and a small yet distinct reduction in the electrical resistance. The latter can be attributed to cake-enhanced concentration polarisation (CECP), which was previously shown to increase the conductance of the fouling layer.⁴⁴ The steady increase in RBI at t ∼ 2–2.5 h (Fig. 2b) and the PVM images taken at t ∼ 2–2.15 h (Fig. 2d, T₆ and T₇) point to further growth of CaCO₃ crystals in the bulk, which resulted in the formation of a cake layer. At t ∼ 2.5–4 h, the RBI (Fig. 2b) decreased per a decrease in the particle concentration in the feed seen in the PVM image recorded at t = 3.25 h (Fig. S20†). This is due to the build-up of particles on the membrane surface, as the further decrease in flux suggests. The radically different consequences to filtration performance associated with the different fouling regimes have prompted us to conduct additional experiments to differentiate between scaling and particulate fouling as described below.

3.2. CaCO₃ mineral fouling under low supersaturation

To reinforce our findings on the signals caused by CaCO₃ mineral scaling, we simulated low supersaturation in the feed to suppress bulk crystallization. This was done by extending the intervals between scaling salt additions to 1 h or more. At t ∼ 0–0.5 h, the normalized flux and electrical resistance (Fig. 3a) trends were similar to the previous experiment, as the flux decreased sharply by 9.0% and the electrical resistance of the fouling layer increased. At the same time, the RBI (Fig. 3b) remained unchanged for t < 0.5 h, confirming that no particles were present in the bulk – an indication of heterogeneous mineral scaling. At t > 0.5 h, the RBI increased due to the emergence of nanoparticles, too small to be captured as images by the in-line microscope. In the high supersaturation experiment, a second aliquot of scalants was added at this point, resulting in the continuation of the flux decline in the same trend. This time, however, the flux decline was flattened with the increase in RBI, which can be attributed either to fouling by nanoparticles or to a slower scaling formation due to competition with the nanoparticles' surface and lower bulk supersaturation. Accordingly, the increase in electrical resistance was flattened again, further demonstrating the high sensitivity of this method to the type of mineral fouling. At t = 1 h, a second dose of scalants was added, initiating a complete transition to particulate fouling. This was indicated by the in-line imaging (S11-T_2–3†), the sharp increase in RBI, the flattening in flux decline, and the moderate decrease in fouling layer electrical resistance, as in the previous set of experiments. This time, however, post-filtration SEM imaging provided additional information.

SEM images of the CaCO₃ crystals deposited on the membrane surface (Fig. 3c) further reinforced our hypothesis regarding the dominant fouling mechanism. The deposited particles had crystalline rhombohedral sharp and straight edges – typical of calcite polymorphs,⁴⁶ the most stable form of CaCO₃. The large particles (>15 μm) appearing in the cross-sectional image (Fig. 3c) and overshadowed in the bulk suspension imaging by smaller particles (S11-T_2–3†) suggest lateral growth on the membrane surface, affirming the assumption of heterogeneous crystallization. According to the SEM images, scaling was developed as separate ‘islands’ that grew on the membrane and blocked the transfer of water and ions. The smaller (<5 μm) particles seen in between (Fig. 3c) and on top of (Fig. 3d) the larger particles corroborate our finding that particulate fouling took place after mineral scaling. The results of the particulate fouling experiment described below confirm that the smaller particles originated from bulk crystallization.

3.3. Particulate fouling by CaCO₃ crystals

To reinforce our interpretations regarding the signals caused by particulate fouling of CaCO₃ precipitates, we induced homogenous bulk crystallization in the feed tank before initiating filtration. This was done by adding 7 aliquots of 8 mM (CaCl₂/NaHCO₃) in intervals of 20 minutes, as in the high supersaturation experiments. The crystals' growth was evident from the monotonic increase in RBI (Fig. 4b) at t ∼ 2.2–2.9 h. The sharp increase in RBI after filtration started may be due to the change in flow around the probe in the feed tank. As seen in Fig. 4a, the normalized flux increased by 4–6%, while the electrical resistance of the membrane and fouling layer decreased by ∼0.8 Ω. These signals are an amplified response to particulate fouling (as observed in the final fouling stage, section 3.1), i.e., negligible addition to the hydraulic resistance and cake enhanced concentration polarization. The latter is also supported by the decrease in observed salt rejection (Fig. 4c) and is similar to the observed rejection in the final fouling stage (Fig. 2c) of the high supersaturation experiment. The SEM images (Fig. 4d and e) taken after filtration show a relatively homogeneous size distribution of the crystals, typical of bulk crystallization. The large crystals, indicative of their lateral growth on the membrane surface (as observed in Fig. 3c and d) are not seen in this case. The porous structure of the fouling layer, which causes the effects described above, is clearly seen. This further affirms our interpretation of the EIS and flux signals.

3.4. Rapid increase of calcium phosphate supersaturation

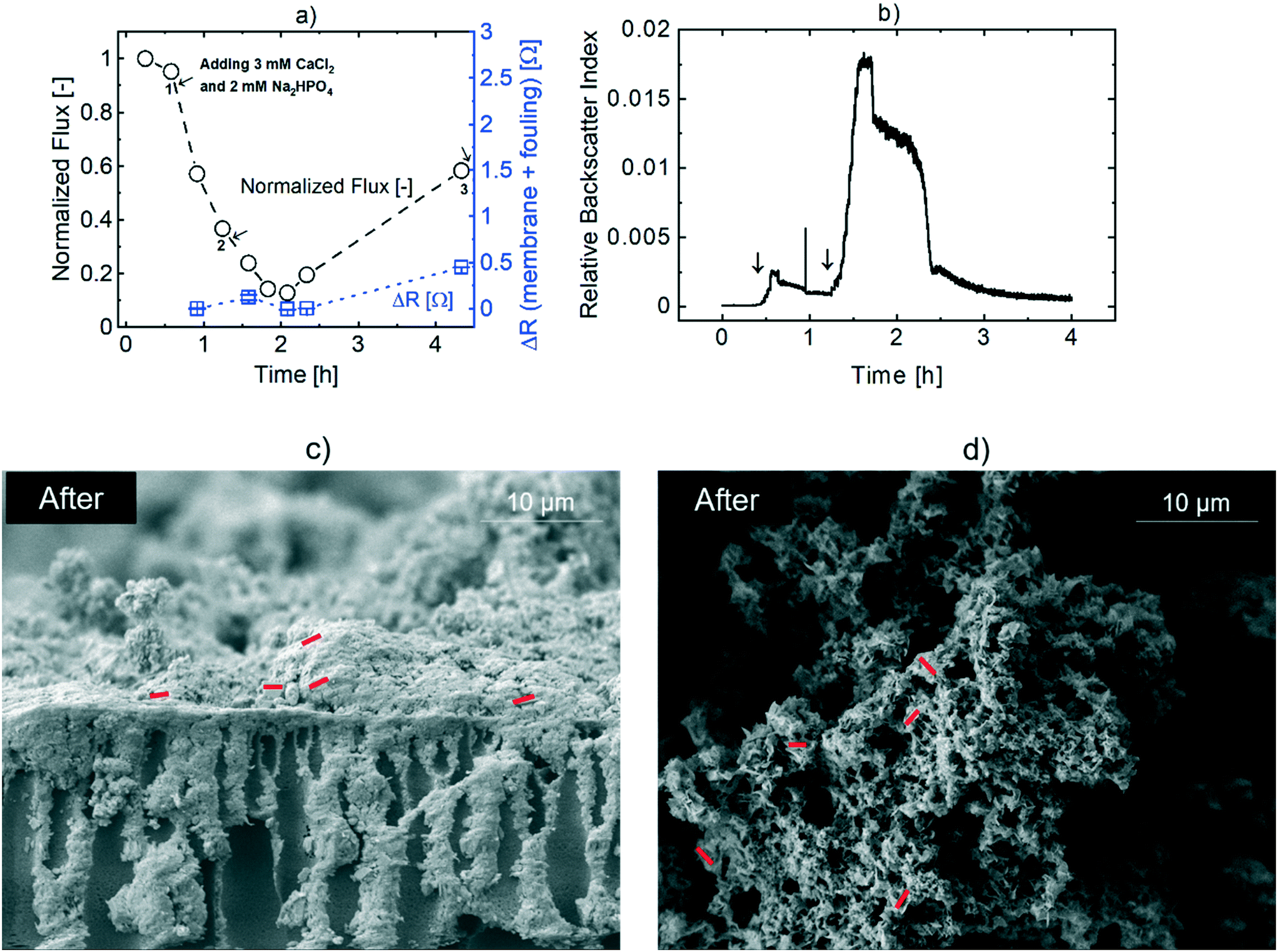

The trend of normalized flux vs. time (Fig. 5a) during filtration of synthetic effluent supersaturated with Ca-P was similar to that observed for CaCO₃. Similarly, this trend is consistent with data obtained from repeat experiments (Fig. S16†), indicating the reproducibility of our experiments. The trend in electrical resistance of the fouling layer was also similar; however, the time synchronization of this signal with the flux signal differs in the case of Ca-P fouling. As in CaCO₃ fouling, three distinct stages of flux evolution were recorded: a first stage (t ∼ 0–1 h) in which the flux decreased sharply (43%), a second stage in which the flux increased (t ∼ 1–1.25 h), and a third stage in which the flux decreased gradually (by ∼14%). At the same time, the fouling layer electrical resistance was negligible in the first 0.5 h (according to the absolute value shown in the Fig. S21†), increased from ∼0 to ∼1 Ω at t ∼ 0.5–1.25 h, then increased gradually until 2.5 h, before reaching a plateau at ∼1.3 Ω. Although the trends in flux and EIS are similar between CaCO₃ and Ca-P, the signals are synchronized differently in time, pointing at a different fouling mechanism.

By combining flux and EIS (Fig. 5a) with real-time microscopy (Fig. 5b and d), we were able to pinpoint the mechanisms underlying membrane fouling by Ca-P minerals, as it evolved during the nanofiltration experiment. Immediately after the first salt addition, the RBI (Fig. 5b) increased, implying that bulk precipitation already occurred at this early stage. This conclusion was supported by an independent experiment (Fig. S10†), in which we found that Ca-P precipitation starts at close to zero (0.0) supersaturation of ACP and with a very short induction time (∼50–100 seconds). The sharp flux decrease in this initial stage is thus attributed to the accumulation of sub-micron, highly hydrated, amorphous particles, which created a fouling layer of high hydraulic resistance. Ions, in contrast, could easily pass through this layer, indicating its porosity. After 0.5 h (before the 2nd salt addition), the real-time imaging (Fig. 5d-T₂) reveals aggregates of particles with distinct ‘fluffy’ morphology and low light reflectance, thus affirming bulk precipitation of amorphous particles. After the 2nd salt addition, the number of particles and size of the aggregates in the bulk further increase (Fig. 5d-T₃), leading to an additional decrease in flux. Following the 3rd salt addition, the normalized flux increased from its minimum at 0.57 back to 0.85, while the electrical resistance increased sharply, indicating a change in the morphology of the layer. Indeed, the real-time particle imaging revealed a transition from amorphous precipitants (Fig. 5d, T_1–3), first to a less ‘flaky’ and more interconnected aggregates (Fig. 5d T₄), and then to a mixed-phase with crystalline components having a defined shape and high reflectance (Fig. 5d T_5–6). It should be noted that the circulating feed solution is in direct contact with both the suspended particles, which were captured by the real-time imaging system and the particles in the fouling layer. Therefore, particle growth and phase transition observed in the bulk are also expected in the fouling layer, where these processes can be accelerated by concentration polarization. After this transition, the RBI increased and particle imaging indicated crystal growth in the bulk, corresponding to typical cake filtration, i.e., slow reduction in flux and negligible change in electrical resistance.

3.5. Slow increase of calcium phosphate supersaturation

To further understand the initial, rapid increase supersaturation fouling stage of Ca-P fouling and to test our interpretation regarding the mechanism, we conducted another fouling experiment, where we increased the duration of low supersaturation. This was done by (1) adding half the amount of salt in every aliquot; (2) extending the intervals between salt aliquot addition to avoid fast crystallization, and; (3) splitting each aliquot into 10 equal small doses (2 min interval) to avoid high local concentration. This procedure resulted in fouling effects similar to those described in the initial stages of the previous section, yet more ‘stretched’ in time, allowing us to explore this stage with better time resolution.

The results reinforce our understanding of Ca-P fouling under slow supersaturation increase and align with the results obtained for the rapid supersaturation increase (section 3.4). After the 1st salt addition, the RBI (Fig. 6b) increased after a very short induction time, as before, then gradually decreased due to aggregation, and increased yet again after the 2nd salt addition. The RBI evolution supports the premise of Ca-P bulk precipitation as a primary fouling initiator. Due to the prolonged dominance of small particles in the circulating feed, the flux dramatically decreased by 64% and 86% after the 1st and 2nd additions, respectively, despite the lower amount of scalants added compared to the rapid supersaturation increase. This demonstrates the significant role of fouling layer morphology, influenced by the rate at which supersaturation increases. At the same time, the low and relatively constant electrical resistance value during the 1st 2.5 h supports the premise of a porous layer with good ion conduction and poor water conduction properties.

The results obtained at longer times (>2.5 h), during the slow increase of Ca-P supersaturation, further support our interpretation of the results obtained during the rapid supersaturation increase (section 3.4). Both the flux and EIS increased, showing the same trend as in section 3.4, yet after a longer time, due to lower concentrations of Ca and P. With this improved time resolution, it is visible that both the flux and EIS signals increased at the same time (Fig. 6a), reinforcing the premise of a morphological change in the fouling layer. It is generally known that amorphous particles (ACP) is a precursor phase for Ca-P precipitation and transforms to crystalline polymorphs – a process described by Oswald's rule.^47,48 We thus pose that dehydration and crystallization processes have condensed the layer, causing deswelling, which opened channels for faster water transport but reduced the surface available for ion transport. Condensation and dehydration of aggregates were previously recorded during the ageing of amorphous Ca-P.⁴⁹ Evidence for a phase transition can also be seen in the SEM images taken post-filtration. In both cross-sectional (Fig. 6c) and top view (Fig. 6d), flat surfaces (indicated by small red strips) of higher crystallinity can be spotted within the dense semi-porous fouling layer. Precipitant seen below the membrane surface is probably minerals that were smeared on the cross-section when cutting the membrane in preparation for SEM imaging. Intra-pore fouling is not likely because the rejection of hydrogen phosphate by this membrane is very high (>90% see independent experiment in Fig. 1c). In this stage, the drop in RBI indicates the aggregation of small particles, which is a precursor for Ca-P phase transformation and crystal growth.^49,50

3.6. Particulate fouling by Ca-P crystals

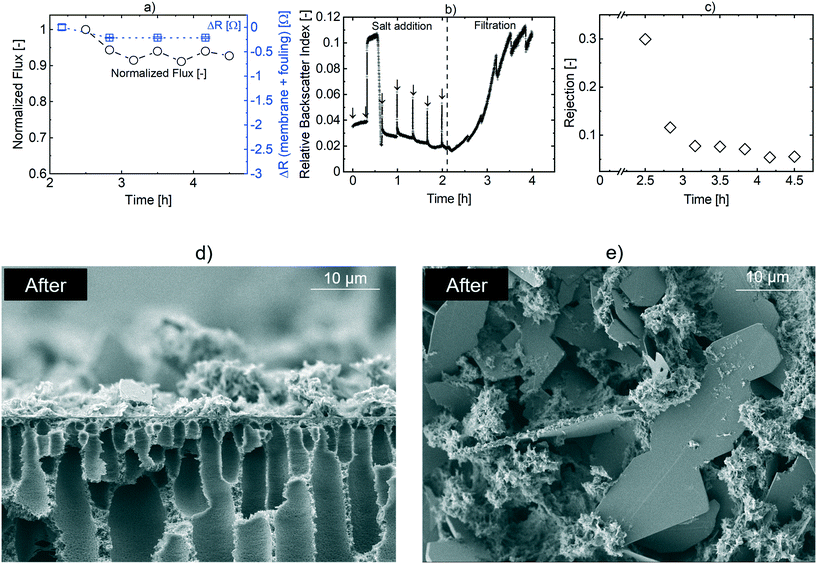

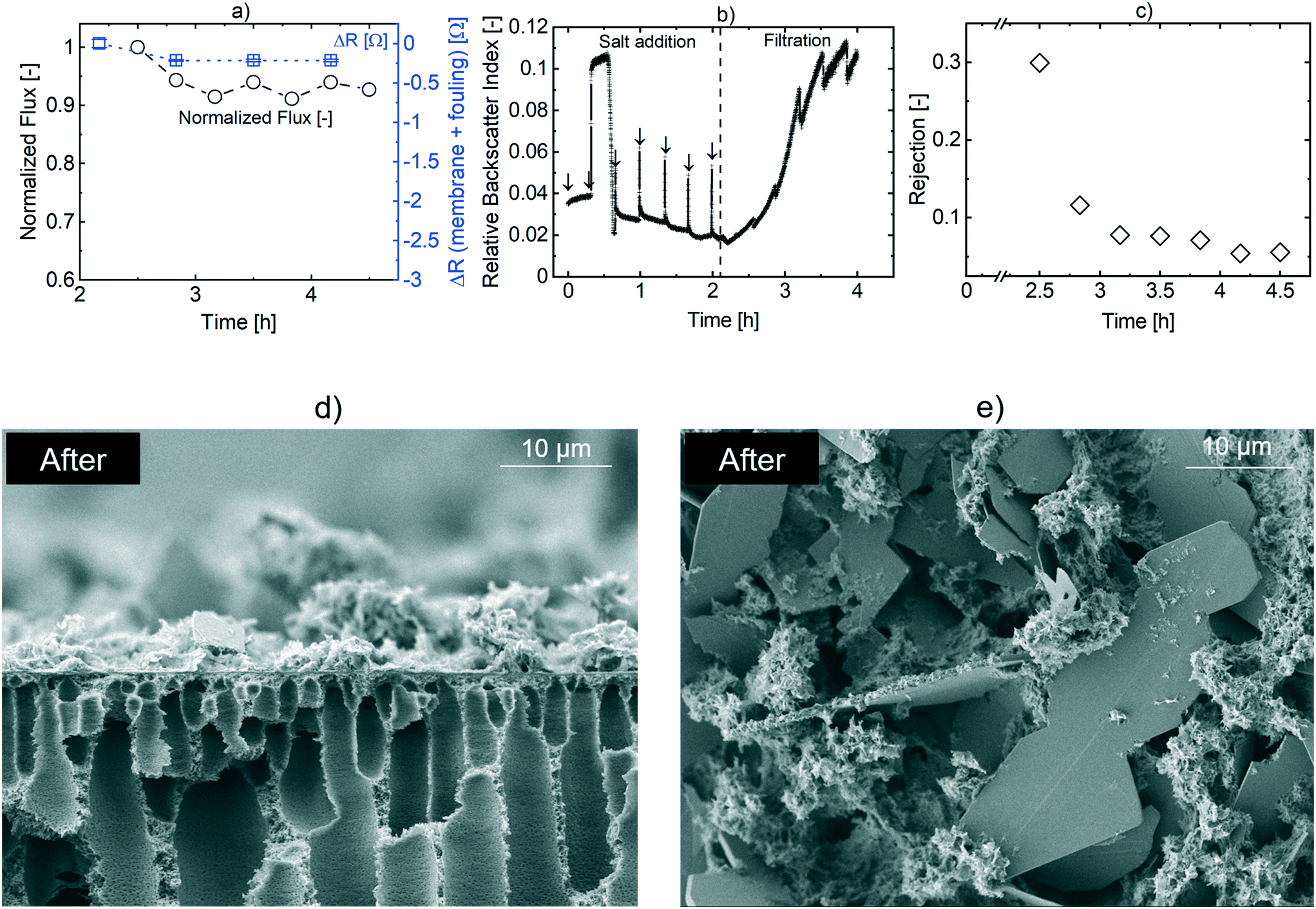

To isolate the effect of fouling by the more crystalline Ca-P phase, we induced bulk precipitation in the feed tank by adding 7 aliquots of scaling salts (CaCl₂/Na₂HPO₄, 6 and 4 mM, respectively), at 20 minutes interval prior to the filtration step. After the first two additions, the RBI signal (Fig. 7b) sharply increased due to the rapid formation of small particles. After the third addition, the RBI decreased due to aggregation followed by crystallization, as was also captured by the in-line imaging system (Fig. S14-T₃†). The RBI remained low until filtration started (apart from local spikes on salt additions), indicating that no secondary nucleation has occurred. The RBI increased with the beginning of filtration (and the end of salt additions), likely due to shear forces causing the aggregates to break. As expected in fouling by large particles, the flux and electrical resistance (Fig. 7a) (9% and ΔR = −0.25 Ω respectively) slightly decreased. The decrease in salt rejection (Fig. 7c) further supported the occurrence of CECP. Overall, the trends in RBI, flux, and electrical resistance recorded during this induced fouling by Ca-P matches our interpretation of the final stage during the rapid increase of Ca-P supersaturation (section 3.4).

The SEM images (Fig. 7d and e) reveal the morphology of the Ca-P precipitants and the fouling layer they have formed on the membrane surface. A mixed layer is seen, containing amorphous-looking aggregates, together with crystal platelets. The cross-sectional image (Fig. 7d) reveals significant variations in the layer thickness that can be attributed to its heterogeneity. This heterogeneity is visible in the top-view image (Fig. 7e), also showing the contrast between the two phases. Compared to the fouling layer seen after the slow increase in Ca-P supersaturation (Fig. 6c), the amorphous phase is similar but seems less dense and more porous. It also appears that the deposited crystals disturbed the formation of a continuous dense layer, which again highlights the importance of morphology in mineral fouling.

4. Summary and conclusions

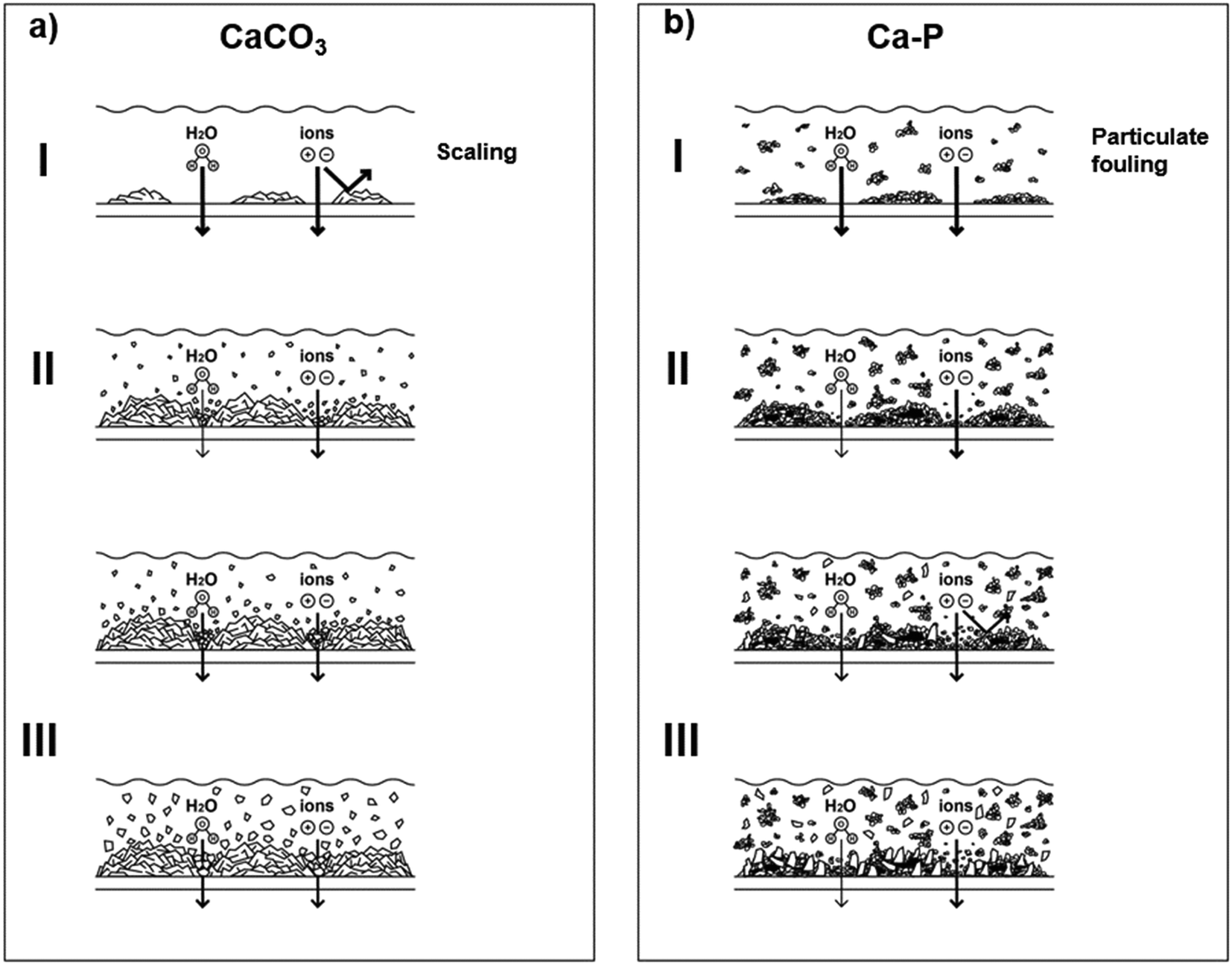

In this work, we studied membrane fouling by CaCO₃ and Ca-P minerals, using a novel combination of real-time probing techniques: in-line particle imaging and EIS. This combination was found highly useful, enabling us to uncover scaling mechanisms and distinguish between them. Using these methods to study fouling by other minerals, such as silica or iron oxides, will likely result in further insights. Complementary data gathered from iC PVM, EIS, flux measurement, and post-filtration SEM imaging was used to reconstruct how morphological changes induced by, e.g., aggregation, particle growth, and crystallization determine the development of mineral fouling and its impact on filtration. The morphological changes were found to depend on the mineral type, filtration time, and rate of supersaturation increase.

For CaCO₃ (Fig. 8a), the results imply that upon the increase in supersaturation, heterogeneous precipitation on the membrane surface began, forming impermeable scaling ‘islands’ on the membrane surface. Consequently, the surface available for the transport of both water and ions decreased. Upon further increase in supersaturation, the crystalline scaling islands grew towards the sides and the top, further reducing flux and ion conductance. At the same time, sub-micron particles started to form via bulk precipitation. Deposition of these small particles between the scaling islands decreased the water flux but had a negligible effect on ion passage. With further supersaturation increase and longer filtration time, the surface area of the suspended particles gradually increased (with their size and number) until it overshadowed the surface area of the scaling islands. This marked a transition from a scaling regime to a particulate fouling regime. At the same time, the particles in the fouling layer also grew (some possibly sheared of the membrane surface), thus enabling faster water transport and partial recovery of the water flux. With further increase in supersaturation, larger particles formed in the bulk deposited on and between the scaling islands, slightly hindering water transport but increasing electrical conductivity in the fouling layer due to cake enhanced concentration polarization of ions.

For Ca-P (Fig. 8b), the results imply that mineral fouling is initiated by bulk precipitation, occurring at very low supersaturation with almost no induction time. At the conditions studied, the precipitant is initially composed of amorphous, highly hydrated sub-micron particles, which deposit on the membrane. Consequently, a porous fouling layer is formed, hindering water transport but allowing ions to pass through. With the increase in supersaturation and at longer filtration time, the smaller particles aggregated, followed by dehydration and consolidation of the amorphous Ca-P, as part of its ageing process (Oswald's rule). Some of the aggregates may have detached from the surface by sheer force. This resulted in a dense layer with holes and cracks, allowing faster ion passage but hindering water transport. After a further increase in supersaturation and filtration time, the phase transition progresses, and plate-shaped crystals appear. These crystals deposit and accumulate on the membrane, forming a top cake layer that inhibits water transport, but increased electrical conductivity through cake enhanced concentration polarization of ions.

Our findings have practical implications for the control and mitigation of mineral fouling, which is essential for obtaining a high recovery in wastewater effluent nanofiltration and reverse osmosis. We show evidence that under typical effluent filtration conditions, ACP formed in the retentate solution controls the initial stages of Ca-P fouling. Therefore, modifying the membrane surface is not expected to contribute to scaling mitigation significantly. We also observed that ACP starts precipitating at a very low supersaturation level and with practically no induction time, making the saturation index a practical scaling control parameter. In contrast, CaCO₃ fouling is initially controlled by surface scaling, which starts after a significantly shorter induction time compared to bulk precipitation. Compared to CaCO₃ scaling, Ca-P fouling is more reversible and could be more easily controlled by crossflow cleaning or backwash. Acid cleaning should also be more effective for a porous layer (as compared to the crystalline scaling layer) since the liquid–solid contact area is higher. Thus, CaCO₃ scaling should be avoided, whereas some extent of Ca-P foulng can be tolerated and removed. We found that when the retained solution contains larger and more crystalline mineral particles, the effect of fouling on filtration performance is less severe. This raises interesting possibilities to control mineral fouling by introducing seeds at an intermediate filtration stage. In our future work, we plan to implement and test this novel strategy.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

This work was funded by the Ministry of Science and Technology (MOST) Israel, under the framework of German-Israeli Water Technology Research (Project: 8764961). We also thank the Young Scientists Exchange Program (YSEP) of the BMBF-MOST Cooperation in Water Technology Research.
