Exceptionally fast formation of stable rigidified cross-bridged complexes formed with Cu(II) isotopes for molecular imaging†

Tibor Csupász ^a, Norbert Lihi *^b, Zsuzsa Fekete ^a, Antónia Nagy ^a, Richárd Botár ^a, Viktória Forgács ^c, Dezső Szikra ^c, Nóra Veronika May ^d, Gyula Tircsó ^a and Ferenc Krisztián Kálmán *^a
aDepartment of Physical Chemistry, University of Debrecen, Egyetem tér 1., H-4032 Debrecen, Hungary. E-mail: kalman.ferenc@science.unideb.hu
^bDepartment of Inorganic and Analytical Chemistry, University of Debrecen, Egyetem tér 1., H-4032 Debrecen, Hungary
^cDivision of Nuclear Medicine and Translational Imaging, Department of Medical Imaging, University of Debrecen, Egyetem tér 1., H-4032 Debrecen, Hungary
^dCentre for Structural Science, Research Centre for Natural Sciences, Budapest H-1519, Hungary

First published on 26th January 2022

---

---

1. Introduction

In recent years, there has been growing interest in the combined application of the targeted radiodiagnosis and therapy (radiotheranostics)¹ for personalized and precise medicine, minimizing the unwanted side effects. One of the most promising candidates for this purpose among the suitable radiometals, is the ⁶⁴Cu isotope due to its excellent decay properties.² The positrons arising from the decay of ⁶⁴Cu can be utilized for PET imaging,^3,4 while the therapeutic effect originates from the combination of β⁻- and Auger electron emission.⁵ The low kinetic energy and short-range penetration of the Auger electrons associated with high linear energy transfer can concentrate energy in a very small volume leaving the normal tissue unaffected. To achieve the most effective imaging and therapy, the radioisotope has to be delivered to the target tissue in the form of complexes functionalized with appropriate biovectors. These complexes need to be stable thermodynamically as well as kinetically in order to avoid the loss of the diagnostic or therapeutic effect by dechelation.

In the last few decades, extensive efforts have been devoted to developing rigid, structurally constrained ligands which form highly stable and more importantly extremely inert complexes with transition metal ions such as Cu(II). The first family of such ligands consists of ethylene cross-bridged tetraazamacrocycles which were designed and synthesized by Weisman and coworkers in the 90's.^6,7 The incorporation of a short ethylene bridge (that connects two opposing nitrogen atoms, Scheme S1 in the ESI†) into the cyclam and cyclen platform significantly improved the inertness of the corresponding metal complexes against H⁺- or OH⁻-assisted dissociation.^8–10

Indeed, the inertness of these complexes is remarkable but, unfortunately, their synthesis frequently requires harsh conditions, e.g. reflux in organic solvents or long reaction times in aqueous solution,^11,12 which are unfavourable when short-lived radioisotopes are used. However, the complexation rate of the macrocyclic metal chelates can be accelerated by promoting the formation of stable intermediates (out of sphere complexes which transform into the in-cage complex easier) by rational ligand design. An excellent example for such a scenario was reported by Ferdani et al. when the acetate pendants of CB-TE2A were substituted with phosphonate moieties.¹³ This modification brought about unexpectedly “fast” complexation with both the mono-, CB-TE1A1P, and the diphosphonate derivative ligand, CB-TE2P, in radiolabeling experiments because the complex formation reactions were complete in less than 1 hour at room temperature (Scheme S1†).¹³

A recent publication by Shircliff et al.¹⁴ has also shown that the inertness of the cross-bridged systems can be maintained in the pentaazamacrocyclic platform (Scheme S1 and Table S1†). Interestingly, the synthesis of the first member of the bicyclo-pentaamine ligand family, CB-15aneN₅ (Scheme 1), was described more than two decades ago,^15,16 however, the first structural and physicochemical studies have been published only recently.¹⁴ Excellent dissociation half-life (t_1/2), 5.3 d, was obtained for the Cu(II) complex of Me₃-CB-15aneN₅ (Scheme S1†) in 5 M HCl at 50 °C which is close to the value determined by Jones et al.¹⁷ for the Cu(II) complex of Me₂-CB-cyclam (7.3 d) under the same conditions.

In this work, the thermodynamic, kinetic, structural and radiolabeling properties of CB-15aneN₅ and its bifunctional derivatives pNO₂Bn-CB-15aneN₅ designed for functionalization with biovectors (Scheme 1) have been investigated in detail. Our goal was to study the physicochemical features of the “simplest” cross-bridged pentaazamacrocycle in order to get insight into the potential of this ligand family as a platform for radiopharmaceuticals. Furthermore, we believe that finding a suitable balance between the different physicochemical properties characterizing the formation and dissociation of the Cu(II) chelates is very important for the widespread application of these compounds in clinical practice.

2. Results and discussion

2.1 Synthesis of the ligands

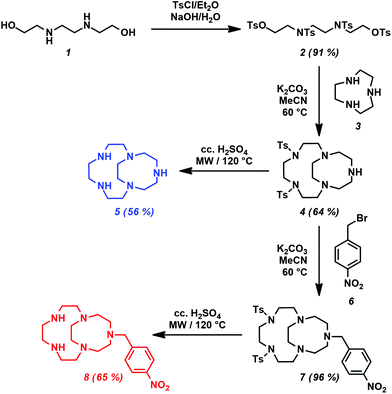

The synthesis of the bicyclic compound 4 was achieved by the condensation of compounds 2 and 3 (Scheme 2). The commercially available N,N′-bis(2-hydroxyethyl)ethylenediamine (1) was used as a starting material, which was protected by tosyl-groups. Instead of using pyridine (whose application as a base was reported for this molecule in the literature)¹⁸ we used aqueous sodium-hydroxide solution to establish basic conditions as it has often been applied by our research group. The use of NaOH reduces the number of by-products and activates the leaving hydroxyl groups during the cyclization. The macrocyclization step to get 4 was carried out in dry acetonitrile and K₂CO₃ was applied as a base. Compound 4 was the main product in the reaction, its purity was confirmed by the analytical HPLC method.

The tosyl protecting groups from compound 4 were removed by using strong acid (cc. H₂SO₄) at high temperature and the product (CB-15aneN₅) was purified by the preparative HPLC method. The bifunctional version of 5 was obtained via the alkylation of the secondary amino group of macrocycle 4 by 4-nitrobenzyl bromide (6) in an anhydrous solvent (MeCN) in the presence of the K₂CO₃ base. Deprotection of the tosyl-groups was carried out under the same conditions as described previously to yield the bifunctional macrocycle 8 (pNO₂Bn-CB-15aneN₅). The temperature and the amount of sulfuric acid of the deprotection step were optimized to obtain the ligands with good yields. The corresponding NMR, mass spectra and analytical chromatograms are shown in the ESI† (Fig. S1–S20).

2.2 Solution equilibria

Due to the extremely slow formation of the structurally rigid Cu(II) complexes their solution equilibria remains unexplored, only a few systems were investigated in detail.^19,20 For Cu(II) complexes it is reasonable to assume that the complex formation starts under highly acidic conditions (pH < 1), therefore the routinely used concentration of ionic strength, I = 0.15 M (NaCl), cannot be employed. Thus, the protonation constants of the ligands were determined using 1.0 M (NaCl) ionic strength via pH-potentiometry. The evaluation of the pH-potentiometric data provided three protonation constants for both ligands, logK₁ = 11.70(3), logK₂ = 9.82(4), and logK₃ = 4.74(6) for CB-15aneN₅ and logK₁ = 12.26(6), logK₂ = 9.18(9), and logK₃ = 1.76(9) for pNO₂Bn-CB-15aneN₅. According to these pK_a values, the attachment of the pNO₂-benzyl moiety to one of the N-atoms leads to a significant decrease in the basicity of two coordination sites in pNO₂Bn-CB-15aneN₅ as compared to that of CB-15aneN₅. Furthermore, the first pK_a of both ligands is more than one order of magnitude higher than that determined by Motekaitis and coworkers for 15aneN₅ (logK₁ = 10.01, logK₂ = 9.28 and logK₃ = 5.87) as a consequence of the more rigid structure, which enhances the proton-sponge behavior of the cross-bridged chelators.²¹

In order to avoid possible complications in the equilibrium studies due to the slow reaction between copper(II) and the ligands, the rate of the complexation reactions was studied first (vide infra). According to the kinetic results, the formation of the [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ complex is too slow therefore the equilibrium studies were limited only to the [Cu(CB-15aneN₅)]²⁺ complex, assuming that the two complexes exhibit similar features. The stability of [Cu(CB-15aneN₅)]²⁺ was examined by spectrophotometry using an out-of-cell (batch) method with equilibration time of 2 months and at a high acid concentration (0.1–1.0 M) because complex formation is already complete at pH = 2. The UV-vis spectra of the batch samples were recorded, and the stability constant of the [Cu(CB-15aneN₅)]²⁺ complex, logK_{[Cu(CB-15aneN5)]} = 27.6(1), was obtained by evaluating the absorbance data at selected wavelengths (see the ESI,† Fig. S21) as a function of the total concentrations of the components. pH-potentiometric titration did not indicate the formation of protonated or mixed hydroxo species (in acidic and weakly basic solutions). The stability constant obtained is about one order of magnitude higher than that of the [Cu(15aneN₅)]²⁺, but their conditional stability shows opposite behavior as evidenced by the comparison of pCu values of the corresponding complexes (pCu_CB-15aneN5 = 17.9 and pCu_15aneN5 = 19.2, calculated for c_Cu(II) = c_ligand = 0.01 mM at pH = 7.4) near the physiological pH owing to the lower basicity of the monocyclic 15aneN₅ ligand.

2.3 EPR and DFT studies

In order to further explore the structure of the complexes formed in solution, EPR measurements and DFT calculations were carried out. For both complexes, room temperature EPR spectra at physiological pH can be fitted well by considering the formation of an exclusive copper(II) complex (Fig. S22†). Nitrogen splitting is not resolved, however, the g₀ and A₀ values correspond to the coordination of the four nitrogen atoms in the equatorial plane of copper(II). The isotropic spin-Hamiltonian parameters for [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ are similar to those obtained for [Cu(CB-15aneN₅)]²⁺, however, the linewidth is somewhat larger (Tables S3 and S4†). This is most probably due to the large side chain of the nitrobenzene moiety, which significantly reduces the rotation of the complex. Nevertheless, the same coordination mode is likely in these complexes. Frozen solution EPR spectra were also recorded in the neutral and alkaline pH range and confirmed the existence of an exclusive species in both systems (Fig. S23†). Comparison of the anisotropic spin-Hamiltonian parameters leads to the conclusion that the slightly lower g_‖ and A_‖ values obtained for [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ are most probably due to the change of the electron density and the elongation of the apical bond (Tables S3 and S5†). Comparison of the EPR parameters with related cyclen derivative ligands indicates the binding of four equivalent nitrogen atoms in the equatorial positions. However, the studies reported on the crystal structure of [Cu(Me₃-CB-15aneN₅)]²⁺ and the results of the dissociation kinetic data (vide infra) assume the binding of another nitrogen atom in the apical position. To support the given hypothesis on the coordination mode, the solutions of [Cu(CB-15aneN₅)]²⁺ and [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ were titrated with N-methyl-imidazole by using its one, two and four-fold excess, and the EPR spectra were recorded (Fig. S24†). No spectral changes were detected, which support that even high excess of N-methyl-imidazole is not able to compete for binding copper(II) and breaks its coordination environment. This is most probably due to the presence of the 5N coordination mode in the first coordination shell of Cu(II). Interestingly, such coordination mode yields very close EPR parameters than those obtained for similar 4N coordinated macrocyclic copper(II) complexes. DFT optimized structures (the corresponding Cartesian coordinates are reported in the ESI,† Table S6) and the calculated A_z values (Fig. 1, Tables S3 and S8†) of the complexes support this conclusion. An average equatorial bond length of 2.039 Å and an apical bond length of 2.184 Å were calculated for [Cu(CB-15aneN₅)]² while equatorial and apical bond lengths of 2.031 Å and 2.168 Å were observed for the copper(II) complex of Me₃-CB-15aneN₅. This confirms that the geometry optimization was reasonably accurate.¹⁴ The binding of apical nitrogen yields a relatively high deviation from the square-pyramidal geometry with ca. 70° rotation relative to the equatorial plane. For the [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ complex, the average equatorial bond length was calculated to be 2.014 Å and the apical bond length was 2.418 Å indicating an elongated and distorted square-pyramidal geometry.

The index of trigonality, τ, was also calculated which provides information on the distortion from square-pyramidal geometry (τ = 1 for an ideal trigonal-bipyramidal, and τ = 0 as the trigonal compression leads to square-pyramidal coordination polyhedron).^22,23τ values were calculated to be 0.45 for the [Cu(CB-15aneN₅)]²⁺ and 0.42 for the [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ complexes, which implies that the coordination polyhedron featured a geometry between the trigonal-bipyramidal and square-planar geometry for both complexes.

The calculated A_z parameters, which are most probably the best EPR parameters to evaluate the quality of the optimization,²⁴ are in excellent agreement with those obtained experimentally. This unambiguously confirms the coordination mode in the copper(II) complexes (see the ESI,† Tables S3 and S8). In conclusion, the similarity of EPR spectra to those of cyclen derivatives is due to the significant deviation from square-pyramidal geometry for [Cu(CB-15aneN₅)]²⁺or a long apical bond length for the [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ complex.

2.4 Formation and dissociation kinetic studies

For the medical applications of the metal complexes as radiopharmaceuticals, not only the high inertness, which prevents the in vivo dissociation, but also their complexation rate is of great importance. The fast complexation of the short-lived radioisotopes is essential to prevent the significant radioactive decay of the agents prior to application. As it was emphasized above, the chelation of Cu(II) ions by cross-bridged azamacrocycles frequently requires harsh conditions involving organic solvents at high temperature. To gain insight into the formation kinetics of the investigated ligands, complexation reactions were monitored in the presence of excess ligand (×10) to ensure pseudo-first-order conditions at 25 °C (Fig. 2).

Under pseudo-first-order conditions the formation rate of the Cu(II) complexes can be described by the rate equation d[CuL]_t/dt = k_obs[Cu(II)], where [CuL]_t is the total concentration of the given complex. The k_obs values obtained at different pH values are directly proportional to the increase of [OH⁻] for the [Cu(pNO₂Bn-CB-15aneN₅]²⁺ complex while the formation rate of [Cu(CB-15aneN₅)]²⁺ exhibits a second-order dependence on OH⁻ concentration (Fig. 2). Thus, the pseudo-first-order rate constants for the complex formation reactions can be expressed by the following equations:

kobs = k1[OH−]	(1)

kobs = k1[OH−] + k2[OH−]2	(2)

where k₁ and k₂ are the rate constants characterizing the transformation of the intermediate to product assisted by OH⁻. The mechanism of the reactions was not investigated in detail. Fitting k_obs to eqn (1) and (2) yields k₁ = (4.4 ± 0.9) × 10⁷ M⁻¹ s⁻¹ and k₂ = (2.1 ± 0.2) × 10¹⁹ M⁻² s⁻¹ for [Cu(CB-15aneN₅)]²⁺, as well as k₁ = (5.2 ± 0.1) × 10⁶ M⁻¹ s⁻¹ for [Cu(pNO₂Bn-CB-15aneN₅]²⁺. For comparison, the half-life (t_1/2 = ln2/k) of the complex formation reactions for both complexes have been calculated and found to be 0.03 s and 133 s for [Cu(CB-15aneN₅)]²⁺ and [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ at pH 5, respectively. The data clearly show that both ligands can be labelled with Cu(II) isotopes in less than 16 min (7 times t_1/2) at pH 5 and 25 °C. The labeling experiments supported our calculation (vide infra). Furthermore, similar results were reported for the formation of the Cu(II) complexes of CB-TE1A1P and CB-TE2P ligands.¹³

The inertness of the Cu(II) complexes was investigated by the generally accepted methodology in which the dissociation rate of the chelates is monitored in harsh circumstances such as high acid concentration and temperatures.¹⁴ Conclusions are often drawn by comparing half-lives of these reactions. The t_1/2 values calculated for the dissociation of [Cu(CB-15aneN₅)]²⁺ and [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ are 8.0(2) minutes and 2.3(2) hours in 5.0 M HCl at 50 °C, respectively. The results indicate that the inertness of these complexes is less than that of many cross-bridged Cu(II) complexes.^4,10 However, as it was confirmed by the labeling experiments that the inertness of [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ is still high enough to prevent the loss of Cu(II) in the serum during several hours (the dechelation is less than 5% in 4 hours), i.e. it appears to be suitable for ⁶⁴Cu-based PET diagnostic applications.

2.5 Labeling experiments

For effective radiodiagnosis and therapy, the radionuclide must be delivered to cancerous tissues using delivery molecules like proteins, antibodies etc. in the form of radioimmunoconjugates.²⁵ In the radioimmunoconjugates the bifunctional chelator (BFC) capable of coordinating the metal ion with high stability and inertness to avoid the in vivo dissociation (the loss of the radiometal) are linked to antibodies to form the “warhead”. Furthermore, the application of the antibodies can ensure the selective binding/uptake of the radiopharmacon by the malignant cells minimizing unwanted side effects. As it was mentioned, the complexation of Cu(II) by structurally rigid ligands often requires harsh conditions which are destructive for the antibodies due to irreversible modification of their structure. Therefore, the rapid and stable chelation under moderate circumstances is essential for the production of radiopharmaceuticals.

The radiolabeling of the pNO₂Bn-CB-15aneN₅ ligand has been carried out by using the ⁶¹Cu isotope, produced by irradiation of highly pure Zn powder (99.999%) in cyclotron (for more details see the ESI†). The ⁶¹Cu isotope is frequently used to probe the radiolabeling features of different chelators because of its cost-effective synthesis and short half-life (t_1/2 = 3.3 h). After the dissolution and separation of the product (⁶¹Cu(II)), it was diluted with ammonium-acetate buffer and used in the labeling experiments. All labeling experiments were performed at room temperature in the pH range between 4 and 9.

As it is shown in Fig. 3, the time, chelate concentration and pH dependencies of labeling as well as the stability of the ⁶¹Cu(II) complex in the presence of DTPA (diethylenetriaminepentaacetic acid) as a competitor and mouse plasma have been investigated. It was concluded that the formation of the [⁶¹Cu(pNO₂Bn-CB-15aneN₅)]²⁺ chelate is complete at a ligand concentration of 11.5 μM in 10 minutes. This formation rate falls within the range of the values published for several NOTA, DOTA and TETA derivative ligands.^26–28

The effect of pH on the radiochemical at 2 μM ligand concentration is maximum at pH 6. Presumably, this behavior is due to the fact that the rate of the complexation decreases at lower pH, while at higher pH the formation of Cu(OH)₂ species is likely which leads to the loss of activity.

The stability measurements have demonstrated that despite the relatively high stability of [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ in highly acidic solutions, the high excess of DTPA (5 mM) induces ligand substitution (25% dissociation was observed in DTPA solution in 4 hours). Since one coordination site of Cu(II) is occupied by an apical nitrogen with a relatively long Cu–N_apical bond length, it is reasonable to assume that donor atoms of DTPA compete efficiently for the given binding site and indicates the dissociation of [Cu(pNO₂Bn-CB-15aneN₅)]²⁺. The formation of a ternary (DTPA containing) intermediate complex is likely, in which the donor atoms of the pNO₂Bn-CB-15aneN₅ are replaced by those of DTPA in a step-by-step process accelerating the ligand substitution. The lack of such dechelation in the mouse plasma can be explained by considering the high inertness of the investigated complex since the dissociation of that was only 5% during the same time period. The high inertness of the [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ against proton-assisted dechelation also indicates significant acceleration of the decomplexation caused by the lower pH (usually in the range between 6.4 and 7.0)²⁹ in malignant tissues, is not expected.

3. Conclusion

Finding a balance between fast complexation and high in vivo stability of the radiopharmaceuticals is a challenging task, but it is beneficial in many fields, for example, in the applications of short-lived radioisotopes. Of course, high temperature and aprotic solvents provide sustainable solutions for the preparation of radiolabeled compounds in numerous cases without any disadvantages. However, in special cases such as targeted radiodiagnosis and therapy, where highly sensitive biovectors are applied, the range of suitable conditions is narrow. For this reason, to find a suitable platform for Cu(II) chelation, we have studied the physicochemical, structural and labeling properties of the Cu(II) complexes formed with CB-15aneN₅ and its bifunctional derivative pNO₂Bn-CB-15aneN₅ in detail. The latter ligand provides a suitable platform via its para-nitrobenzyl group for attaching the biovectors to the macrocyclic moiety. Our results confirmed that the complexation of Cu(II) with the investigated ligands is fast (it occurs within 16 min at pH = 5) and the chelates have high thermodynamic stability, furthermore [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ presents appropriate inertness against decomplexation (t_1/2 = 2.3 h) in 5 M HCl at 50 °C. In agreement with the equilibrium model, the EPR measurements showed the presence of an exclusive species in solution featuring 5N coordination in a highly distorted structure. This is further supported by the results of DFT calculations. The experiments carried out with ⁶¹Cu(II) ions confirmed the fast complexation and indicated that the pH-optimum of radiolabeling is around pH = 6. In contrast to our expectations based on the results obtained in an acidic medium, some transchelation/transmetallation of [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ occurred in the serum. This phenomenon is the consequence of the open coordination environment of Cu(II) in the chelate containing a readily available coordination site of the complex facilitating the ligand exchange reaction. This observation also confirms that the inertness of Cu(II) complexes can be overestimated if the circumstances used for the determination of their inertness differ significantly from those faced during the application.

Finally, the assessment of the results strongly suggests that the rate of complexation and dissociation of the Cu(II) complexes formed with the CB-15aneN₅ ligand family strongly depends on the substituents present on the N donor atoms as it can be seen by comparing the dissociation half-lives determined for the [Cu(Me₃-CB-15aneN₅)]²⁺ and [Cu(CB-15aneN₅)]²⁺ chelates (Table S1†). This provides an excellent possibility for improving the in vivo stability of the chelates by a rational ligand design. Through careful selection of the pendant arms, complex formation can be accelerated via a more stable intermediate while the high in vivo stability can be guaranteed by an appropriate number of metal binding donors matching the coordination number of the central ion. We believe that the CB-15aneN₅ ligand platform is very promising for Cu(II) complexation in radiotheranostic applications, based on our in vivo preliminary experiments carried out on a mouse model, the characterization of the in vivo features of [Cu(pNO₂Bn-CB-15aneN₅)]²⁺ is in progress.
