Metal-free direct C–H phosphonation of N-heterocycles with diphenylphosphine oxides under mild conditions†

Zhao-Nan Cai ^a, Ya-Ping Han ^a, Yuecheng Zhang ^a, Hong-Yu Zhang *^a, Jiquan Zhao *^a and Shang-Dong Yang ^b
aSchool of Chemical Engineering and Technology, Hebei Provincial Key Lab of Green Chemical Technology & High Efficient Energy Saving, Tianjin Key Laboratory of Chemical Process Safety, Hebei University of Technology, Tianjin 300130, P. R. China. E-mail: zhanghy@hebut.edu.cn; zhaojq@hebut.edu.cn; Tel: +86-22-60204726
^bState Key Laboratory of Applied Organic Chemistry, Lanzhou University, Lanzhou 730000, P. R. China

First published on 4th July 2023

---

---

Introduction

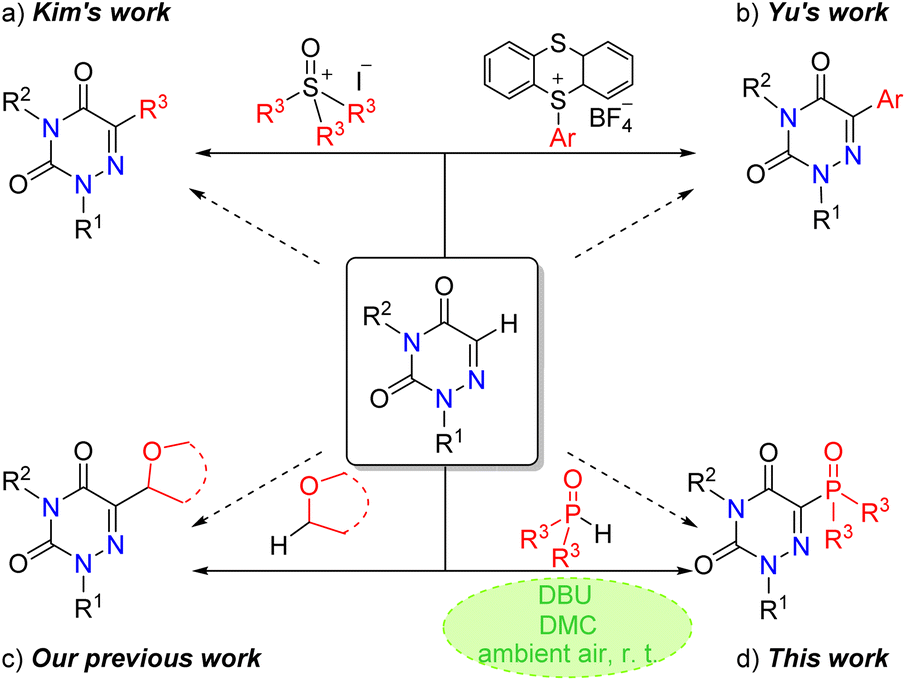

1,2,4-Triazine-3,5(2H,4H)-diones are an essential category of N-heterocycles which have been extensively studied in medicinal and organic chemistry, as they are widespread in biologically active molecules and drugs. For example, 6-azauracil and its derivatives have been extensively used in the fields of antitumor, antifungal and antiviral therapies.^1–5 As a result, the C–H functionalization of these molecules has been attracting much attention. In 2021, the Kim group unveiled an elegant C–H alkylation of 1,2,4-triazine-3,5(2H,4H)-diones with sulfur ylides (Scheme 1a).⁶ In 2022, the Yu group disclosed the generation of aryl radicals from EDA complexes between arylsulfonium salts and DABCO, allowing the preparation of high-value-added (hetero)biaryls under mild conditions (Scheme 1b).⁷ Recently, our group also reported a visible-light-induced oxidative cross-dehydrogenative-coupling reaction of 1,2,4-triazine-3,5(2H,4H)-diones and ethers (Scheme 1c).⁸ Although a few inspiring achievements have been established, the domain of C–H functionalization of 1,2,4-triazine-3,5(2H,4H)-diones is still narrow, and a direct method of introduction of diversiform functional groups into 1,2,4-triazine-3,5(2H,4H)-diones remains desired and challenging.

Phosphorus-containing heterocycles play an increasingly important role in organic synthesis, medicinal chemistry, materials sciences, and so forth because of their significant biological and chemical properties.^9–22 In the past decades, numerous methodologies have been developed through cross-coupling of arylhalides and phosphoryl sources under various catalytic conditions to construct C–P bonds. However, transition-metal-catalysts (such as Pd, Ni, Cu, Rh, etc.) were required in these reactions.^23–37 Consequently, the development of concise and efficient strategies for C–P bond construction is a continuous research hotspot in organic chemistry. For instance, the Cui group reported a pioneering K₂S₂O₈ promoted C–H bond phosphonation of quinoxalin-2(1H)-ones with H-phosphinates or H-phosphine oxides.³⁸ Then, the Zeng group disclosed an efficient method to synthesize 3-diphenylphosphorylated quinoxalin-2(1H)-one derivatives through an efficient electrochemical approach.³⁹ Subsequently, more favourable conditions were found by the Subbarayappa group, who described phosphonation of quinoxalines and quinoxalin-2(1H)-ones utilizing molecular oxygen as a green oxidant under visible light conditions at room temperature.⁴⁰ Recent outstanding achievements, represented by the three aforementioned works, avoided the utilization of expensive transition-metal-catalysts. However, explosive peroxides, specialized electrodes or photocatalysts still are necessary.^41–55 In order to continuously pursue easy operation and concise reaction conditions and expand the scope of C–H functionalization of 1,2,4-triazine-3,5(2H,4H)-diones, we have developed DBU promoted phosphonation of 1,2,4-triazine-3,5(2H,4H)-diones to construct a C–P bond via atom and step-economical C(sp²)–H/P–H oxidative cross-dehydrogenative-coupling (Scheme 1d). The present method features several advantages: (1) inexpensive and readily available DBU emerges as the promoter, rather than a toxic/expensive metal catalyst contaminating the products and imposing restrictions on their subsequent application in the pharmaceutical industry; (2) more significantly, dimethyl carbonate (DMC) can be directly used as a solvent, as we know one of the critical principles of green chemistry is the usage of a safer solvent; (3) ambient inexhaustible air is used as the only terminal oxidant; (4) after completion of the reaction, the product was isolated via simple extraction, washing and filtration, but column chromatography was not required, making it a potential method for industrial applications; and (5) our technology is reproducible on a gram-scale reaction affording a clean product in a reproducible yield, and a variety of N-heterocycles including 1,2,4-triazine-3,5(2H,4H)-diones, quinoxalin-2(1H)-ones, quinoxalines, pyrazinones and even substrates with medicinal molecule frameworks are compatible in this phosphonation.

Results and discussion

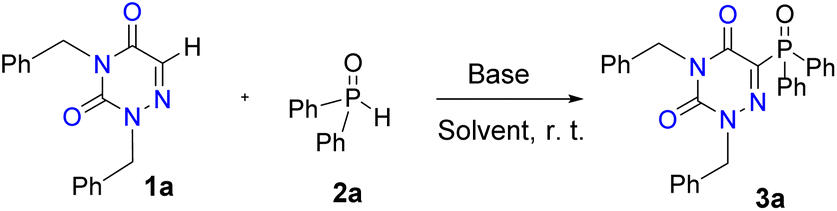

Initially, we chose 2,4-dibenzyl-1,2,4-triazine-3,5(2H,4H)-dione (1a) (0.2 mmol) and diphenylphosphine oxide (2a) (0.5 mmol) as model substrates to screen various bases in CH₂Cl₂ under ambient air at room temperature. To our delight, 2,4-dibenzyl-6-(diphenylphosphoryl)-1,2,4-triazine-3,5(2H,4H)-dione (3a) was obtained in 89% yield after 12 h with DBU as a base (Table 1, entry 1). However, an extensive survey of other bases (KH₂PO₄, Et₃N, KO^tBu, DABCO, and Cs₂CO₃) inhibited the reaction (entries 2–6). Taking the impact of solvents on the environment into consideration, we investigated some green solvents including MeOH, EtOH, H₂O, DMC, and EtOAc (entries 7–11). It was found that DMC is the best solvent for this phosphonation reaction, and the desired product was obtained in 92% yield (entry 10). When 1.5 or 1.0 equivalent of DBU was employed, the product yield decreased obviously (entries 12 and 13). Furthermore, the amount of DMC was examined (entries 14–17). The results showed that the appropriate usage of DMC was 1.0 mL and a 97% yield of the desired product 3a was observed in this case (entry 16). No transformation was observed when the reaction was carried out under an argon atmosphere (entry 18). However, 3a was isolated in 96% yield when the reaction was performed under an oxygen atmosphere (O₂ balloon) (entry 19). Finally, the optimized reaction conditions were determined to be 2.0 equivalents of DBU in DMC (1 mL) under ambient air at room temperature (Table 1, entry 16).

---

Using the optimized reaction conditions (Table 1, entry 16), we then investigated the generality of this heterocycle-phosphonation process (Scheme 2). A series of 1,2,4-triazine-3,5(2H,4H)-diones were first explored. A broad scope of N₂,N₄-dibenzylated 1,2,4-triazine-3,5(2H,4H)-diones matched well and delivered target products in moderate to outstanding yields (3a–3g). The dual substrates attaching electron-donating groups (Me and OMe) on the aromatic rings were also tolerated and the anticipated products 3b and 3c were generated in 80% and 82% yields, respectively. N₂,N₄-Dibenzylated 1,2,4-triazine-3,5(2H,4H)-dione substrates containing electron-deficient groups such as p-F, p-Cl, p-CN, and p-NO₂ on the benzene rings were then inspected, and the reactions proceeded smoothly to give the corresponding products 3d–3g in yields ranging from 51% to 72%. Several groups of 1,2,4-triazine-3,5(2H,4H)-diones with N₂,N₄-substituents such as methyl, allyl, ethoxycarbonyl methyl and tert-butoxycarbonyl methyl also underwent the reaction successfully affording the corresponding products in good yields (3h–3k). In addition, diverse 1,2,4-triazine-3,5(2H,4H)-diones with different N₂,N₄-substituted groups also readily reacted with diphenylphosphine oxide to provide C6-phosphinoylated 1,2,4-triazine-3,5(2H,4H)-diones 3l–3u in excellent yields. Moreover, azauracil nucleoside 1v was also coupled with 2a to afford the corresponding nucleoside derivative 3v in 83% yield.

We then assessed the scope of the phosphoryl source in this transformation. As revealed in Scheme 2, the protocol was amenable to diphenylphosphine oxides bearing electron-donating substituents (–OMe, –Me) at the para positions on the phenyl rings, leading to the desired phosphinoylated products 3w and 3x in 90% and 93% yields, respectively. Fortunately, halo-substituted diphenylphosphine oxides 2y and 2z were demonstrated to be tolerated and the target products were obtained in acceptable yields under the optimized conditions, providing feasibility for further downstream chemical modifications. In addition, ethyl phenyl phosphinate was also used as an effective phosphonation reagent, which gave the product 3aa in 49% yield.

In recent years, some elegant methods for phosphonation of quinoxalines or quinoxalin-2(1H)-ones have been established.^38,40,53,54 However, whether these methods were effective for phosphonation of 1,2,4-triazine-3,5(2H,4H)-diones remained to be verified. Therefore, we first tried to use the photocatalytic method, and the target product 3a was obtained with a yield of 9% only, when eosin B was used as the photocatalyst.⁵⁴ Both visible-light⁴⁰ and heat⁵³ induced methods of using molecular oxygen as an oxidant were unable to provide the product 3a. When the reaction was demonstrated with K₂S₂O₈ as an oxidant with reference to Cui group's work,³⁸ the target product 3a was obtained with a yield of 46%. On the other hand, we also tried to further broaden the substrate scope to other N-heterocycles. As expected, the methodology allowed direct phosphonation of quinoxalin-2(1H)-ones, pyrazinones and quinolines, giving the target products in yields ranging from 23% to 98% (3ab–3ai). However, under the current conditions, 5,6,7,8-tetrahydroquinoxaline was not a suitable feedstock for this protocol (3aj), with almost complete recovery of the starting material. Besides, several other heterocycles as shown in Scheme 3 were tried under the standard reaction conditions, and no corresponding product was observed.

Subsequently, we applied this method to the post-modification of bioactive molecules and drug derivatives to show its potential applicability. The azauracil 4-benzyl-2-(3-(2-methoxy-4-(3-oxobutyl)phenoxy)propyl)-1,2,4-triazine-3,5(2H,4H)-dione 1ak prepared from vanillylacetone could react well with diphenylphosphine oxide 2a under the standard conditions to give the product 3ak in 54% yield. Aspirin-, vanillin-, ibuprofen- and estrone-derived quinoxalin-2(1H)-ones 1al–1ao underwent phosphonation smoothly to afford the corresponding products in good yields (3al–3ao, 47%–82%).

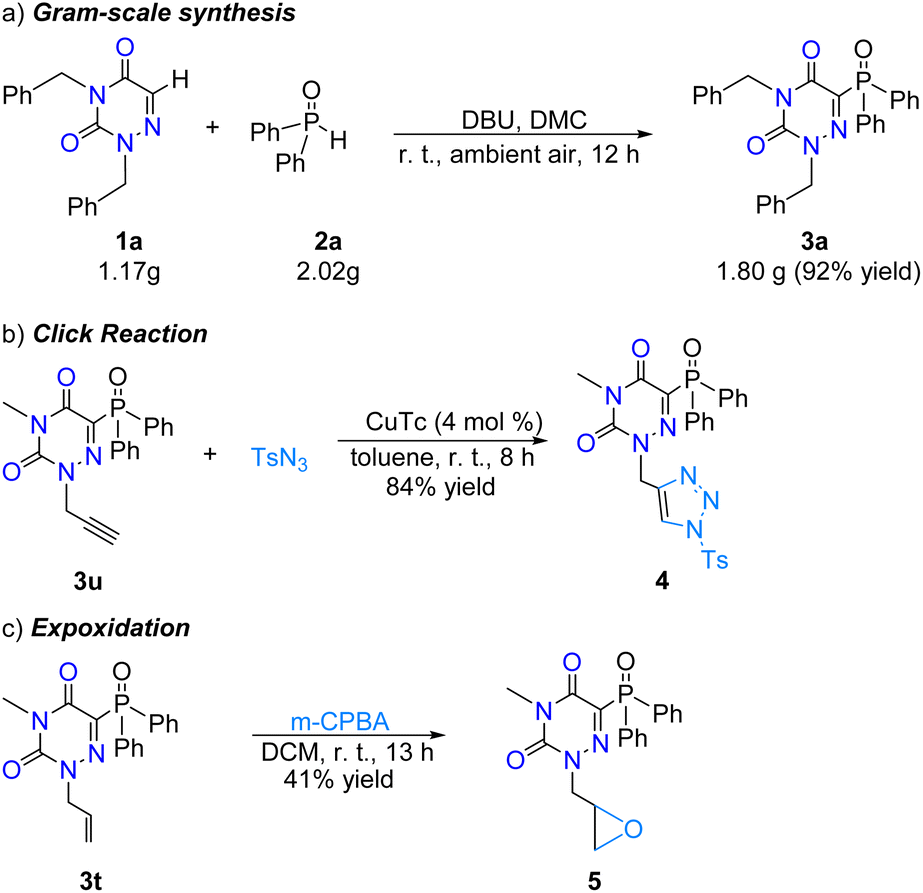

To demonstrate the potential synthetic utility of the direct phosphonation of the N-heteroarene reaction, a large-scale synthesis of 3a was further conducted under the optimal conditions. Gratifyingly, the desired product was obtained in a synthetically valuable yield of 92% via simple extraction, washing and filtration, promising a latent application of this reaction in the future (Scheme 4a). A copper-catalyzed click reaction could easily transfer the alkyne moiety in 3u into an important triazole skeleton in 84% yield (Scheme 4b). Moreover, the treatment of N-allyl-derived 1,2,4-triazine-3,5(2H,4H)-dione product 3t with m-chloroperoxybenzoic acid (m-CPBA) afforded the epoxidation product 5 in 41% yield (Scheme 4c). Subsequently, we also performed the recovery and reuse of remaining DBU, diphenylphosphine oxide and DCM. After the reaction was completed, the reaction mixture was distilled under reduced pressure and 88% of DMC was recovered. The residue was washed with water and n-hexane and the expected product was obtained in 89% yield, which was collected by filtration. Water (including the remaining DBU and diphenylphosphine oxide) was evaporated under reduced pressure. Then 2,4-dibenzyl-1,2,4-triazine-3,5(2H,4H)-dione (0.2 mmol), 1.0 equivalent of DBU, 2.0 equivalents of diphenylphosphine oxide and DMC (1 mL) were added to the residue, and the mixture reacted under standard conditions for 12 hours. When the reaction was completed, the post-processing of separation and purification as mentioned above was repeated to obtain the target product 3a in 87% yield. This cycle was run four times in total, and the yield of the expected product 3a is shown in Fig. 1.

In order to better understand the mechanism of this transformation, a number of mechanistic studies have been conducted as indicated in Scheme 5a. The reaction of 2,4-dibenzyl-1,2,4-triazine-3,5(2H,4H)-dione (1a) and diphenylphosphine oxide (2a) under optimal conditions in the presence of radical inhibitors 2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPO) and 2,6-di-tert-butyl-4-methylphenol (BHT) yielded the product 3a with isolated yields of 91% and 89%, respectively, which indicated that a radical path was not implicated in this transformation.

A plausible mechanism based on the above studies and the previous literature^41,56–61 is proposed in Scheme 5b. First, phosphite 2a′ is generated via tautomerization of phosphine oxide 2a, which is deprotonated by DBU to afford a phosphine oxide anion. The anion as a nucleophilic reagent attacks the imine bond of the 1,2,4-triazine-3,5(2H,4H)-dione ring leading to the intermediate A, which captures a hydrogen ion to give the intermediate B detected using a high-resolution mass spectrometer (HRMS). Subsequently, the intermediate B is oxidized by O₂ to afford the desired product 3a through oxidative dehydrogenative aromatization.

Conclusions

In summary, an efficient and atom economical process for the selective phosphonation of N-heterocycles in a metal-free way is developed. 1,2,4-Triazine-3,5(2H,4H)-diones, quinoxalin-2(1H)-ones, quinoxalines and pyrazinones are compatible with aryl phosphonates, and monophosphonated products were synthesized with good yields in eco-friendly dimethyl carbonate at ambient temperature under mild conditions. Moreover, the synthetic value of this benign protocol has also been demonstrated by the successful post-modification of natural molecules and pharmaceutically relevant compounds. The current method has been shown to be applicable at the gram scale. We believe that the developed methodology will provide a powerful route for generating various new classes of highly functionalized small molecules.
