Highly dispersed Fe–Ru dual cocatalysts derived from a Prussian blue analogue for boosting O₂ evolution on an oxyiodide photocatalyst†

Reiya Takahashi^a, Hajime Suzuki*^a, Harutaka Ninomiya^a, Makoto Ogawa^a, Osamu Tomita^a, Akinobu Nakada^a, Shunsuke Nozawa^b, Akinori Saeki^c and Ryu Abe*^a
aDepartment of Energy and Hydrocarbon Chemistry, Graduate School of Engineering, Kyoto University, Nishikyo-ku, Kyoto 615-8510, Japan
^bPhoton Factory (PF), Institute of Materials Structure Science (IMSS), High Energy Accelerator Research Organization (KEK), Tsukuba, Ibaraki 305-0801, Japan
^cDepartment of Applied Chemistry, Graduate School of Engineering, Osaka University, Suita, Osaka 565-0871, Japan

First published on 7th July 2025

Iron–ruthenium dual oxide (Fe,Ru)O_x has been reported to be an effective cocatalyst for oxygen evolution photocatalysts, including layered oxyhalides, in various Z-scheme water-splitting systems.^8–12 This cocatalyst promotes both the reduction of redox species and water oxidation in a bifunctional manner, resulting in improved O₂ evolution compared with its single component (i.e., FeO_x or RuO_x).⁸ For example, the loading of (Fe,Ru)O_x on a promising oxyiodide photocatalyst Ba₂Bi₃Nb₂O₁₁I substantially enhanced the O₂ evolution rate in an aqueous solution with a Fe³⁺ electron acceptor.¹² However, a conventional impregnation method using mixed precursor solutions (e.g., Fe(acac)₃ and Ru(acac)₃ in acetone) resulted in partial segregation of Fe and Ru species as well as aggregation of particles, which probably hindered catalytic performance.¹¹

These limitations motivated us to develop a more uniform and highly dispersed Fe–Ru-based cocatalyst on the photocatalyst surface, aiming to increase the intrinsic activity and the number of active sites available for surface reactions. In this study, we employed iron hexacyanoruthenate (KFe[Ru(CN)₆], hereafter denoted as “FeHCRu”) as a precursor for the loading of the Fe–Ru dual cocatalyst. FeHCRu, a Prussian blue analogue, is a coordination polymer in which cyano ligands alternately bridge Fe and Ru, enabling atomic-level mixing of the two metals. While this material has been applied in electrocatalysis,^13,14 electrochromism,¹⁵ and biosensing,^16,17 its use as a cocatalyst or a cocatalyst precursor in combination with a photocatalyst has, to the best of our knowledge, not been reported. Herein, FeHCRu was impregnated onto Ba₂Bi₃Nb₂O₁₁I and subsequently calcined under argon (Ar) flow, resulting in a significant enhancement of O₂ evolution activity in a Z-scheme water splitting system.

Following previous studies, Ba₂Bi₃Nb₂O₁₁I and FeHCRu were synthesized via flux and coprecipitation methods, respectively.^12,18 X-ray diffraction (XRD) and other measurements validated the successful synthesis of the target compounds (Fig. S1 and S2, ESI†). We evaluated the photocatalytic O₂ evolution activity of Ba₂Bi₃Nb₂O₁₁I samples loaded with FeHCRu at different calcination temperatures, denoted as Ba₂Bi₃Nb₂O₁₁I (FeHCRu-T °C), under visible light irradiation in the presence of the reversible electron acceptor Fe³⁺ (Fig. 1). The samples calcined at temperatures exceeding 400 °C exhibited significantly higher activity than those calcined at 100 °C. The O₂ evolution activity followed a volcano-shaped trend with respect to calcination temperature, increasing up to 500 °C and then decreasing at 550 °C. Importantly, calcination at any of these temperatures did not alter the bulk crystal structure of Ba₂Bi₃Nb₂O₁₁I or negatively affect its intrinsic O₂ evolution activity (Fig. S3 and S4, and Table S1, ESI†). The volcano-shaped trend resembled that observed when (Fe,Ru)O_x was applied using acac-based precursors, although the optimal temperature differed (500 °C for FeHCRu and 450 °C for (Fe,Ru)O_x),¹² likely due to the different thermal decomposition behaviors of their respective precursor ligands. The optimized Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) sample exhibited approximately 2.5 times higher O₂ evolution activity than the previously reported Ba₂Bi₃Nb₂O₁₁I sample loaded with (Fe,Ru)O_x using acac-based precursors at its optimal temperature (hereafter referred to as Ba₂Bi₃Nb₂O₁₁I (acac-450 °C)). Consistently, the apparent quantum efficiency (AQE) for O₂ evolution over Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) was 0.6% (at 405 nm), which is twice as high as that over Ba₂Bi₃Nb₂O₁₁I (acac-450 °C) (0.3% at 405 nm).¹²

	Fig. 1 Amounts of O2 evolved over 5 h reaction for unmodified Ba2Bi3Nb2O11I, Ba2Bi3Nb2O11I (FeHCRu-T °C), or Ba2Bi3Nb2O11I (acac-450 °C) in Fe(NO3)3 (aq) (8 mM) under visible light (λ > 400 nm) irradiation.

Annular dark-field scanning transmission electron microscopy (ADF-STEM) images and STEM equipped with energy-dispersive X-ray spectroscopy (STEM-EDS) elemental maps of Ba₂Bi₃Nb₂O₁₁I (acac-450 °C) and Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) are shown in Fig. 2. As reported previously,¹¹ for Ba₂Bi₃Nb₂O₁₁I (acac-450 °C), FeO_x was loaded as large particles having diameters of several tens of nanometers, while RuO_x was distributed either on the surface of FeO_x or in Fe-deficient regions. In contrast, for Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C), both Fe and Ru species were highly dispersed, most appearing smaller than 10 nm, and positioned close to each other. To further evaluate the cocatalyst dispersion, the electrochemically active surface area (ECSA) was estimated through electrochemical measurements. Cocatalyst precursors were spin-coated onto conductive fluorine-doped tin oxide (FTO) substrates, calcined under an Ar flow, and subsequently subjected to cyclic voltammetry (CV). The results indicated that FeHCRu calcined at 500 °C exhibited higher dispersion than (Fe,Ru)O_x prepared at 450 °C using acac-based precursors (Fig. S5, ESI†). These findings strongly suggest that the improved loading state—characterized by closely spaced, highly dispersed Fe and Ru species without forming separate aggregates—increased the number of active sites, thereby enhancing the O₂ evolution activity of the oxyiodide photocatalyst.

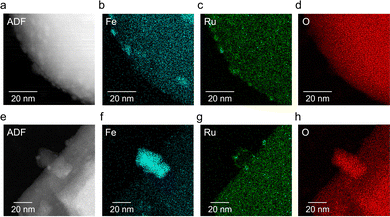

	Fig. 2 ADF-STEM images of (a) Ba2Bi3Nb2O11I (FeHCRu-500 °C) and (e) Ba2Bi3Nb2O11I (acac-450 °C), along with the STEM-EDS elemental maps of Fe, Ru, and O for Ba2Bi3Nb2O11I (FeHCRu-500 °C) (b)–(d) and Ba2Bi3Nb2O11I (acac-450 °C) (f)–(h).

The chemical states of Fe and Ru in Ba₂Bi₃Nb₂O₁₁I (FeHCRu-T °C) were investigated by X-ray absorption fine structure (XAFS) spectroscopy. The Fe K-edge X-ray absorption near-edge structure (XANES) spectra across all calcination temperatures (400–550 °C) resembled those of Fe₂O₃ and FeOOH, suggesting that Fe existed in an oxidized state (Fig. 3a). This assignment is consistent with the Fe K-edge extended XAFS (EXAFS) spectra, which show the presence of the Fe–O bond (Fig. S6a, ESI†). In contrast, the Ru K-edge XANES spectra changed with increasing temperature, indicating a gradual transformation into a mixture of metallic Ru and (hydrous) Ru oxide species (Fig. 3b). This interpretation is corroborated by the corresponding Ru K-edge EXAFS spectra, which reflect the coexistence of these species (Fig. S6b, ESI†). Such a transformation is likely associated with the release of cyanide groups, as evidenced by the gradual weight loss observed in the thermogravimetric-differential thermal analysis (TG-DTA) of FeHCRu under a nitrogen atmosphere (Fig. S2c, ESI†). The IR spectra of the FeHCRu-loaded sample calcined at or below 500 °C retained a peak attributed to the stretching vibration of cyano groups (∼2100 cm⁻¹) (Fig. S7, ESI†). However, this peak disappeared in the sample calcined at 550 °C. These results indicate that the Fe–N bonds are relatively weak and dissociate at temperatures as low as 400 °C, whereas the Ru–C bonds are more robust, with the cyano ligands gradually dissociating but partially persisting up to 500 °C.

	Fig. 3 (a) Fe K-edge and (b) Ru K-edge XANES spectra of Ba2Bi3Nb2O11I (FeHCRu-T °C).

Additional spectroscopic and photocatalytic investigations were conducted to evaluate the stability of the O₂ evolution activity and gain insights into the underlying cocatalyst behavior. XAFS analysis of Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) after the O₂ evolution reaction revealed that the Fe K-edge spectrum remained largely unchanged, indicating that the oxidation state of Fe was maintained throughout the reaction (Fig. S8a, ESI†). In contrast, the Ru K-edge spectrum showed evidence of partial reduction of Ru species during the reaction (Fig. S8b, ESI†)—such a reduction behavior is also observed in a previous study on (Fe,Ru)O_x using acac-based precursors.¹² This result suggests that a fraction of the Ru species accepted photogenerated electrons and facilitated the reduction of Fe³⁺. Indeed, the time-resolved microwave conductivity (TRMC) measurement of Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) suggests that both electrons and holes transfer to the cocatalyst (Fig. S9, ESI†). Furthermore, electrochemical investigations support that the reduced Ru species (Ru metal) exhibit a high activity for Fe³⁺ reduction (Fig. S10, ESI†). The three-cycle test (Fig. S11, ESI†) demonstrated that the O₂ evolution activity did not decrease following the first cycle; notably, it improved in the second cycle. This result implies that the change in the chemical state of Ru did not have a negative effect on the photocatalytic performance and may have even enhanced it. The Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) sample generated 97.2 μmol of O₂ for 9 hours (Fig. S11, ESI†). Since water oxidation is a four-electron process, this corresponds to the involvement of 389 μmol of electrons and holes contributing to this reaction. This value is substantially larger than the amount of Fe and Ru loaded in FeHCRu (3.6 μmol), confirming that the loaded Fe–Ru species functioned as a cocatalyst on the surface of the O₂ evolution photocatalyst. The stability of both the photocatalyst and the cocatalyst was validated by XRD, EDX, and TEM measurements of the Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) sample after the repeatability test (Fig. S12 and S13, ESI†).

The catalytic activity of each Fe–Ru species cocatalyst was evaluated via electrochemical measurements. Electrodes, prepared similarly to those utilized for ESCA measurements, were subjected to linear sweep voltammetry (LSV) (Fig. 4). FeHCRu calcined at 100 °C exhibited negligible catalytic activity for both water oxidation and Fe³⁺ reduction, whereas calcination at temperatures exceeding 400 °C significantly enhanced the catalytic activity, with the highest activity observed at 500 °C (Fig. 4). This temperature-dependent trend in catalytic activity corresponds with the temperature dependence observed for the O₂ evolution activity of Ba₂Bi₃Nb₂O₁₁I (FeHCRu-T °C) (Fig. 1). The emergence of catalytic activity at temperatures above 400 °C is probably related to the decomposition of FeHCRu. The decrease in catalytic activity above 500 °C is likely attributed to the aggregation of the catalyst particles, as shown by ECSA measurements (Fig. S5, ESI†), which suggest that increasing the calcination temperature reduces the number of active sites. The progression of aggregation with increasing calcination temperature was also observed in TEM images of Ba₂Bi₃Nb₂O₁₁I (FeHCRu-T °C) (Fig. S14, ESI†). The trade-off between favorable progress in the decomposition of FeHCRu and unfavorable aggregation of the cocatalyst at elevated temperatures likely explains the volcano-type dependence of O₂ evolution activity on the loading temperature for Ba₂Bi₃Nb₂O₁₁I (FeHCRu-T °C) (Fig. 1). The previously reported (Fe,Ru)O_x prepared at 450 °C using acac-based precursors¹² or chloride-based precursors⁸ exhibited lower catalytic activity for both water oxidation and Fe³⁺ reduction than FeHCRu calcined even at the same temperature (Fig. 4). Note that (Fe,Ru)O_x prepared using chloride-based precursors exhibits higher catalytic activity than that derived from acac-based ones in electrode evaluation; however, when deposited onto Ba₂Bi₃Nb₂O₁₁I, chlorine–iodine substitution occurs, resulting in lower photocatalytic activity compared with the acac-derived sample.¹² Although the FeHCRu-derived species exhibited higher catalytic activity in the desired reactions, it also exhibited higher catalytic activity for Fe²⁺ oxidation, i.e., the reverse electron transfer reaction (Fig. S15, ESI†), which is also supported by the photocatalytic reaction in the presence of both Fe²⁺ and Fe³⁺ (Fig. S16, ESI†). These results indicate that the FeHCRu-derived cocatalyst promotes both the forward and reverse reactions; however, its pronounced enhancement of the forward reaction plays a key role in improving O₂ evolution on Ba₂Bi₃Nb₂O₁₁I.

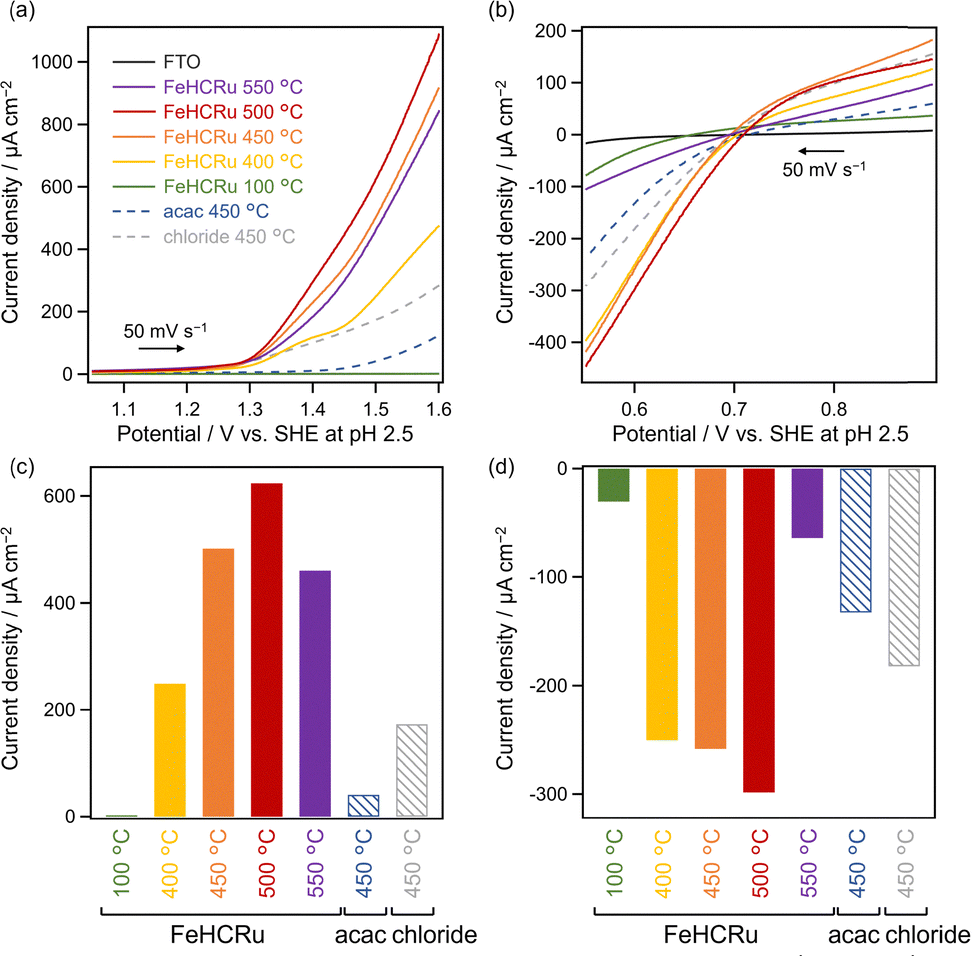

	Fig. 4 LSV results for electrodes prepared using FeHCRu and acac (chloride)-based precursors in aqueous Na2SO4 solution (a) in the absence and (b) in the presence of the Fe3+ electron acceptor. The catalytic activity for water oxidation was evaluated in (a), and that for Fe3+ reduction was evaluated in (b). The current densities at 1.5 V and 0.6 V in (a) and (b) are summarized in (c) and (d), respectively.

The optimized Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) was utilized as the O₂ evolution photocatalyst, and RuO_x-loaded Rh-doped SrTiO₃ (SrTiO₃: Rh; characterization in Fig. S17, ESI†) was used as the H₂ evolution photocatalyst in the Z-scheme water splitting system in the presence of the Fe³⁺/Fe²⁺ redox couple (Fig. 5). As the reaction proceeded, the concentration of Fe³⁺/Fe²⁺ reached equilibrium, and H₂ and O₂ were steadily produced in a stoichiometric ratio of 2:1. The gas evolution rate of the system employing Ba₂Bi₃Nb₂O₁₁I (FeHCRu-500 °C) was higher than that of the previously reported system using Ba₂Bi₃Nb₂O₁₁I (acac-450 °C).¹² Therefore, loading the Fe–Ru dual cocatalyst onto Ba₂Bi₃Nb₂O₁₁I using FeHCRu under optimal conditions maximized the O₂ evolution rate, thereby improving overall water splitting performance.

	Fig. 5 Time courses of H2 and O2 evolution over a mixture of Ba2Bi3Nb2O11I (FeHCRu-500 °C) or Ba2Bi3Nb2O11I (acac-450 °C) and RuOx-loaded SrTiO3: Rh in Fe(NO3)3 (aq) (2 mM) at pH 2.4 under visible light irradiation.

In summary, iron hexacyanoruthenate (FeHCRu), a Prussian blue analogue, was employed as a precursor for loading a Fe–Ru dual cocatalyst on the oxyiodide photocatalyst Ba₂Bi₃Nb₂O₁₁I. Loading FeHCRu onto Ba₂Bi₃Nb₂O₁₁I at 500 °C under Ar flow yielded highly dispersed Fe and Ru species on the photocatalyst surface, thereby significantly enhancing O₂ evolution in the presence of Fe³⁺ as a reversible electron acceptor. Compared with conventional (Fe,Ru)O_x cocatalysts prepared using acac-based precursors, the FeHCRu-derived cocatalyst more effectively accelerated O₂ evolution on Ba₂Bi₃Nb₂O₁₁I and consequently enhanced overall Z-scheme water splitting, primarily owing to the increased number of active sites. These findings highlight that Prussian blue analogues are promising precursors for constructing highly dispersed mixed-metal compound cocatalysts, offering a viable strategy to boost the efficiency of photocatalytic water splitting.

This work was supported by JSPS KAKENHI, grant numbers JP20H00398, JP23H02061, and JP24KJ1470. This study was also supported by the Kansai Research Foundation for Technology Promotion and the ENEOS Tonen General Research/Development Encouragement and Scholarship Foundation. Part of this study was supported by the Advanced Characterization Platform and the AIST Nanocharacterization Facility (ANCF) Platform as a program of the “Nanotechnology Platform” (JPMXP1223KU0001). The XAFS experiments were performed with the approval of the Photon Factory Program Advisory Committee (Proposal No. 2024G638 and 2024G147).
