Distribution characteristics and environmental risk assessment of bisphenol analogues in the lower reaches of the Yangtze River

Wanyu Li ab, Wenxuan Mac, Jiajun Changab, Yao Xiaoab, Rui Wangab, Zhiliang Zhuab, Daqiang Yinab, Yue Lid and Yanling Qiu*ab
aKey Laboratory of Yangtze River Water Environment, College of Environmental Science and Engineering, Tongji University, Shanghai 200092, China. E-mail: ylqiu@tongji.edu.cn; 14lili@tongji.edu.cn
bShanghai Institute of Pollution Control and Ecological Security, Shanghai 200092, China
cQingdao Ecological Environment Bureau Jiaozhou Branch, Qingdao 266300, China
dThe Institute of Fishery Machinery and Instruments of the Chinese Academy of Fishery Sciences, Shanghai 200092, China

Received 16th April 2025 , Accepted 18th June 2025

First published on 25th June 2025


Abstract

To investigate the distribution patterns and environmental risks of emerging pollutants—bisphenols (BPs)—in the lower reaches of the Yangtze River, water samples were collected from an 850 kilometer stretch of the river in September 2022, 2023, and 2024. Nine BPs were analyzed using solid-phase extraction (SPE) coupled with liquid chromatography-tandem mass spectrometry (LC-MS/MS). This study systematically evaluated the occurrence, space distribution, annual comparison, environmental risks, and potential sources of BPs. The results revealed that eight BPs were consistently detected, and the average ∑BPs concentrations for the three years, in chronological order, were 67.2 ng L−1, 28.0 ng L−1 and 46.8 ng L−1, showing a “decline–rise” pattern. The dominant substances bisphenol A (BPA), bisphenol S (BPS), and bisphenol F (BPF) remained consistent over the three years. A historic severe drought in 2022 led to elevated BP concentrations in Tongling–Changzhou section while there is no obvious spatial distribution pattern in September 2023 and 2024. Spearman correlation analysis indicated similar sources for BPA, BPF, bisphenol E (BPE), and bisphenol AP (BPAP), likely originating from wastewater discharge and surface runoff. Ecological risk assessment utilizing risk quotients (RQ) identified BPS as posing medium-to-high risks (RQ: 0.102–7.57) at all sampling sites, highlighting the need for urgent mitigation measures. Despite having the highest concentration, BPA exhibited low ecological risks at some sites. However, estimated daily intake (EDI) values for BPA via drinking water exceeded the European Food Safety Authority's provisional tolerable daily intake (t-TDI) of 0.2 ng·(kg d)−1, suggesting its potential health risks for all age groups.



Environmental significance

Bisphenols (BPs) are widely distributed in the environment due to their chemical stability and extensive use. In China, bisphenol (BP) concentrations in water bodies vary significantly. Recent studies showed that BPA remains the dominant BP in lower Yangtze River basin surface water, but analogs like BPS, BPF, and BPAF are becoming more common. The growing environmental concern regarding BP contamination in aquatic systems underscores the urgent need for targeted research on BP in the lower Yangtze River. This study conducted a three-year investigation into the concentrations and risks of bisphenols (BPs) in the lower reaches of the Yangtze River, and explored their potential pollution sources. The findings are intended to offer a robust scientific foundation for the prevention, control, and regulation of emerging pollutants, exemplified by BPs, in the surface waters of this region.

1 Introduction

Bisphenol (BP) compounds, a class of organic compounds containing two phenolic hydroxyl groups, are widely used in industrial production as additives or raw materials due to their excellent solubility, high refractive index, and transparency. Among them, bisphenol A (BPA) is the most extensively utilized, with Asian countries—particularly China, South Korea, and Japan—accounting for the majority of global BPA production.1 As a critical plasticizer, BPA is incorporated into polycarbonate plastics, thermal paper inks, cosmetics, and food packaging materials. However, BPA exhibits strong estrogenic activity and is recognized as a typical endocrine-disrupting chemical (EDC).2 Human exposure to BPA primarily occurs through leaching from food and beverage containers,3 with studies demonstrating adverse health effects such as necrosis, apoptosis, oxidative stress, and genotoxicity in human peripheral blood mononuclear cells, as well as antagonistic interactions with thyroid receptors.4 To mitigate risks, the European Union banned BPA in plastic baby bottles in 2011.5 Many countries have since adopted BPA analogues—including bisphenol S (BPS), bisphenol F (BPF), and bisphenol AF (BPAF)—as substitutes in plastics and other materials.6 Key physicochemical properties of common BPs are summarized in Table S1. However, emerging evidence indicates that these analogues have similar toxicological profiles to BPA, leading to their classification as emerging pollutants of concern.7

Bisphenols (BPs) are widely distributed in the environment due to their chemical stability and extensive use. Research over the past two decades has shown their prevalence in aquatic systems. For example, in São Paulo, Brazil, surface water had the highest BPA concentrations (2–13[thin space (1/6-em)]016 ng L−1), with elevated levels near industrial and densely populated areas.8 In Slovenia and Croatia, wastewater treatment plants reported increasing trends of BPA, BPF, and BPS, along with the emergence of new analogues BPB and BPE.9 In Czech rivers, the average detection frequency of bisphenol (BP) analogues was 39%. Bisphenol AF (BPAF) showed the highest maximum detected concentration (91 ng L−1), while bisphenol A (BPA) exhibited the highest mean detected concentration (119 ng L−1), with an extreme maximum concentration reaching 800 ng L−1. BPAF followed, with a mean concentration of 91 ng L−1 and a maximum of 205 ng L−1. These results indicate that BPA and BPAF are extensively utilized in the local area.10 The study by Santhi et al. revealed that the concentrations of BPA in tap water and drinking water were 11.3 ng L−1 and 3.5–59.8 ng L−1, respectively, demonstrating that BPA can migrate from plastic bottles and pipelines into drinking water, posing potential risks to human health.11 A two-year monitoring program of BPs in Indian river water reported a maximum BPA concentration of 1480 ng L−1.12 In India, a study found widespread detection of BPA, BPS, and BPF in surface waters across 12 states and Delhi, with BPA being the dominant component.12

In China, bisphenol (BP) concentrations in water bodies vary significantly. Riverine BP levels ranged from 40–180 ng L−1, while lake systems showed levels of 4–270 ng L−1.13 A study analyzing BP levels in 20 drinking water sources across China in 2017 identified BPA as the predominant compound (average: 12.8 ng L−1), followed by BPF and BPAF.14 In the Pearl River, BPA and BPS were dominant, accounting for 68% of the total BPs.15 The Yellow River's Lanzhou section had mean BP concentrations of 88 ng L−1 (wet season) and 61.2 ng L−1 (dry season) in water.12 A study on BPs in the Yellow River during dry seasons revealed elevated levels of BPA and BPAF, exceeding 100 ng L−1.16 Lake Taihu's BPA levels surged from 8.5 ng L−1 to 97 ng L−1 during 2013–2016.17 The highest average BPA level in 2016 was observed in April, followed by a sharp decline in November. BPF and BPS exhibited trends similar to BPA, while BPAF showed an inverse pattern (8.2 ng L−1 in April vs. 114 ng L−1 in November).18 The Nanjing section of the Yangtze River reported average BP concentrations of 393.8 ng L−1 and 300 ng L−1 in two studies, with BPA making up over 80% of the total.19,20 Zhang et al. analyzed BPs in the Qinhuai River, a major tributary of the lower Yangtze, revealing significantly higher ΣBPs concentrations in the pre-flood period (20.3–472 ng L−1, average: 146 ng L−1) compared to the post-flood period (14.1–105 ng L−1, average: 35.9 ng L−1). 13 Recent studies showed that BPA remains the dominant BP in lower Yangtze River basin surface water, but analogs like BPS, BPF, and BPAF are becoming more common. In Lake Taihu, certain BPA analogues now exceeded BPA concentrations.18 While studies on BPs in the mainstream Yangtze River are limited, extensive investigations in Lake Taihu-located within the Yangtze River basin-provide insights into BP contamination trends in downstream areas. A series of studies on Lake Taihu demonstrate that its BP levels are notably higher compared to other domestic basins, with BPA concentrations exhibiting a yearly increasing trend,21,22 accompanied by increasing levels of BPA analogs.21,23,24 Research on the Nanjing section of the Yangtze River further shows that both average and maximum BP concentrations in this region20 substantially exceed those reported for the Pearl River14 and the Yellow River,16 while BPS levels are markedly higher than those observed in the Wuhan section of the Yangtze River.25 These findings highlight the emerging environmental concern of BP contamination in aquatic systems and the need for targeted BP research in the lower Yangtze basin.

The lower Yangtze River, spanning 850 km through Jiangxi, Anhui, Jiangsu, and Shanghai, is a vital economic hub with dense industrialization and urbanization. Since the 1970s, rapid development has led to severe aquatic degradation, making it a priority protected catchment area in 2020.26 China has focused on ecological management of the Yangtze River since the 1980s, passing environmental laws and implementing measures with notable success. However, environmental risks remain, especially concerning emerging pollutants such as bisphenols. This study conducted a three-year investigation into the concentrations and risks of bisphenols (BPs) in the lower reaches of the Yangtze River, and explored their potential pollution sources. The findings are intended to offer a robust scientific foundation for the prevention, control, and regulation of emerging pollutants, exemplified by BPs, in the surface waters of this region.

2 Materials and methods

2.1 Sample collection

Water samples were collected in September 2022, September 2023, and September 2024 from representative sections of the lower reaches of the Yangtze River, including cities such as Shanghai, Nantong, Changshu, Zhangjiagang, Changzhou, Taizhou, Yangzhou, Zhenjiang, Nanjing, Ma'anshan, Wuhu, Tongling, Anqing, and Jiujiang. The specific sampling locations are illustrated in Fig. S1–S3. To minimize plastic contamination, a stainless-steel sampler was employed, and 1 L amber glass bottles were used to reduce photodegradation of target analytes. Prior to sampling, all equipment was rinsed three times with site water. Field blanks (ultrapure water in pre-cleaned bottles) were prepared to monitor background contamination. Collected samples were stored at 4 °C in darkness and processed promptly.

2.2 Sample analysis

Standards and reagents. Bisphenol A (BPA), bisphenol AF (BPAF), bisphenol F (BPF), bisphenol S (BPS), bisphenol B (BPB), bisphenol E (BPE), bisphenol Z (BPZ), bisphenol P (BPP), and bisphenol AP (BPAP) were purchased from AccuStandard (USA). Isotopically labeled standards (13C12-BPA, 13C12-BPF, and 13C12-BPS) were obtained from Cambridge Isotope Laboratories (USA). Methanol (UV-HPLC grade) and ammonia solution (25–28%, analytical grade) were supplied by CNW Technologies GmbH and Sinopharm Chemical Reagent Co., Ltd, respectively.
Sample pretreatment. 1 L of water was taken and spiked with 20 ng each of 13C12-BPF and 13C12-BPS as surrogate standards, followed by 5 minute ultrasonication for homogenization. The HLB solid-phase extraction (SPE) cartridges (200 mg, 6 mL) were preconditioned with 10 mL methanol and 10 mL ultrapure water. The pressure of the SPE apparatus was adjusted to control the flow of the samples through the activated HLB cartridges with a flow rate of approximately 5 mL min−1. After extraction, cartridges were washed with 6 mL ultrapure water containing 20% methanol, dried under vacuum for 60 minutes, and eluted with 10 mL methanol containing 1% ammonia. The eluate was concentrated to ∼1 mL using nitrogen evaporation, transferred to 2 mL LC vials via Pasteur pipettes, and further evaporated to near-dryness. Finally, 20 μL of 1 mg L−1 13C12-BPA internal standard was added, and the solution was reconstituted to 1 mL with methanol. The samples were stored at 4 °C until analysis.12,27–29
Instrumental analysis. The target compounds were quantified using a TSQ Endura triple quadrupole LC-MS/MS system operated in electrospray ionization negative mode (ESI). The critical mass spectrometric parameters were optimized as follows: ion source temperature maintained at 350 °C, spray voltage set to 3.0 kV, and high-purity nitrogen employed as both the sheath (20 arb) and auxiliary gas (10 arb). Detailed mass spectrometry information regarding target BPs is shown in Table 1.
Table 1 The MS/MS conditions for selected BPs
BPs Molecular formula Retention time/min Precursor/product ions Collision energy/eV
a Subions used for quantification.
BPA C15H16O2 8.83 227.0 > 212.0a > 133.1 21.53
BPS C12H10O4S 9.21 249.0 > 108.1a > 92.2 31.64
BPF C13H12O2 8.65 199.1 > 93.1a > 105.1 25.32
BPB C16H18O2 9.02 241.2 > 212a > 210.7 21.28
BPE C14H14O2 8.73 213.1 > 198a > 119.2 19.86
BPP C24H26O2 13.1 345.2 > 330.0a > 315.0 29.52
BPZ C18H20O2 12.16 267.2 > 173.0a > 223.0 30.43
BPAF C15H10F6O2 8.64 335.0 > 264.9a > 196.9 26.79
BPAP C20H18O2 9.06 289.1 > 274.0a > 211.0 23.25
13C12-BPA C15H16O2 8.84 239.2 > 224.0a > 139.2 21.53
13C12-BPF C13H12O2 8.65 211.1 > 99.1a > 178.0 25.88
13C12-BPS C12H10O4S 7.29 261.0 > 114.1a > 245.0 32.85


Data acquisition incorporated three scanning modes: full scan, product ion scan, and selected reaction monitoring (SRM) with collision energies optimized for each BP congener. Chromatographic separation was achieved using a BP-C18 column (Pntulips, 5 μm particle size, 4.6 × 150 mm) maintained at 25 °C. The mobile phase consisted of (A) 0.1% ammonium hydroxide in water and (B) methanol, and a 10 μL injection volume was employed. The setting of the flow rate and gradient of the flow phase are shown in Table 2.

Table 2 Flow rates and the mobile phase gradient in the detection of BPs
Time/min Flow rate/μL min−1 A (0.1% ammonia)/% B (methanol)/%
0 200 30 70
2 200 30 70
4 200 20 80
5 200 10 90
6 200 0 100
7 250 0 100
10 250 0 100
10.5 350 0 100
11 500 0 100
12 350 0 100
15 350 0 100
15.1 250 0 100
15.2 250 20 80
15.3 250 30 70


2.3 Quality control and assurance

The limit of detection (LOD) for target BPs was defined as the mean process-blank concentration plus three standard deviations (SDs), while the limit of quantification (LOQ) was set as the mean blank concentration plus ten SDs. If the calculated LOQ was lower than the lowest calibration standard, the latter was used as the LOQ. The LLOQ was determined as the lowest standard curve point (0.5 μg L−1). The chromatograms of LLOQ, pure solvent and process blank samples are shown in Fig. S4.

For each batch of samples, three blanks were also analyzed simultaneously. Surrogate standards (13C12-BPF and 13C12-BPS) were spiked into all samples to monitor recovery rates (Table S2). Method performance metrics, including LODs (0.500–4.00 ng L−1) and recoveries (70–120% for most analytes), are summarized in Table S3. Notably, BPAP exhibited lower recovery, while BPF and BPS showed higher recoveries. Additionally, we also calculated the matrix effect according to formula (2.1)


image file: d5em00294j-t1.tif(2.1)

Among them, MEIS: matrix effect factor with internal standard correction; B: peak area of the isotopic marker in the matrix sample; BIS: peak area of the internal standard in the matrix-spiked group; A: peak area of the isotopic marker in the pure solvent (ultrapure water) standard; AIS: peak area of the internal standard in the pure solvent standard.

Note: MEIS <25% is considered an insignificant matrix effect, and MEIS >50% is a strong matrix effect. A positive value indicates signal enhancement, while a negative value indicates ion suppression.

Based on these criteria, the calculated MEIS values were −3.29% for 13C12-BPF and 12.98% for 13C12-BPS, indicating negligible matrix effects in this study.30,31

2.4 Ecological risk assessment

Predicted no-effect concentrations (PNECs) for BPs were derived using assessment factors (AFs) per EU technical guidelines,32 with toxicity data sourced from the US EPA ECOTOX database. Chronic toxicity endpoints for zebrafish (Danio rerio) were prioritized.

The Risk Quotient (RQ) method was used to evaluate the ecological risk of BPs in the lower reaches of the Yangtze River, and the specific formula was as follows:


RQ = MEC/PNEC (2.2)

In eqn (2.2), MEC is the concentration of the pollutant in the environmental medium that is actually measured.

According to the RQ value obtained by the risk quotient method, the ecological risk of water bodies can be divided into four categories: ① no risk (RQ < 0.01); ② low risk (0.01 ≤ RQ < 0.1); ③ moderate risk (0.1 ≤ RQ < 1); ④ high risk (RQ > 1).33

2.5 Health risk assessment

According to eqn (2.3), the estimated daily intake (EDI) of three types of new pollutants in drinking water was calculated separately, and the units were ng·(kg d)−1.

EDI = (C × IR × AP)/BW (2.3)

In eqn (2.3), C is the concentration of each new contaminant in water (ng L−1), IR is the daily intake of drinking water (L per day), AP is the percentage of gastrointestinal absorption (set to 100% for drinking water), and BW is body weight (kg). In this study, the average concentration of the target contaminant was used to assess the average exposure level, taking into account the effects of age and sex differences on body weight and drinking water intake,34–36 and the relevant population exposure parameters (Table S4) were compared to those in the Chinese Population Exposure Parameter Handbook.

2.6 Data processing

Graphical analysis. Origin 2021 for charts; ArcGIS for sampling maps (based on GPS coordinates); Adobe Illustrator for spatial distribution plots.
Statistical analysis. Microsoft Excel 2019.

3 Results and discussion

3.1 Concentrations of BPs

The detection status of BPs in the lower reaches of Yangtze River during September 2022, 2023, and 2024 is presented in Table 3. Among the nine target BPs, the detection rates of BPA and BPE were both 100% across all three years, while the detection rates of BPS, BPF, and BPAP were all above 50%. BPZ and BPAF were detected only in 2024, at a relatively low frequency. The detection of BPP and BPB was observed in the years 2022 and 2024. Notably, BPP exhibited relatively low detection rates in both years. In contrast, BPB demonstrated a substantial increase in detection frequency in 2024. The total concentrations of the nine BPs (∑9BPs) in the lower reaches of the Yangtze River during September 2022, 2023, and 2024 were 28.6–165 ng L−1 (mean: 67.2 ng L−1; median: 59.3 ng L−1), 8.30–87.9 ng L−1 (mean: 28.0 ng L−1; median: 24.2 ng L−1) and 35.2–62.8 ng L−1 (mean: 46.8 ng L−1; median: 45.7 ng L−1), respectively.
Table 3 Concentrations of BPs in river water from the lower reaches of the Yangtze River in September 2022, 2023 and 2024 (units: ng L−1)a
Target Detection rate (%) 2022.9 Detection rate (%) 2023.9 Detection rate (%) 2024.9
Max Min Average Median Max Min Average Median Max Min Average Median
a N.D.: not detected, < LOQ: below the limit of quantification.
BPA 100 112 7.66 27.6 2.1 100 62.2 4.25 13.7 10.1 100 32.6 13.9 21.9 20.5
BPS 77.3 86.0 N.D. 25.7 13.4 94.7 66.2 N.D. 7.94 4.18 83.3 17.6 N.D. 10.4 11.4
BPF 100 31.4 3.00 8.41 6.45 100 19.1 <LOQ 4.18 2.98 58.3 13.9 N.D. 5.67 4.23
BPE 100 4.47 1.21 2.59 2.47 100 3.10 <LOQ 0.950 1.26 100 7.28 2.76 4.09 3.83
BPAP 100 4.55 1.54 2.54 2.45 78.9 2.25 N.D. 1.23 1.47 100 4.17 0.762 2.49 2.59
BPP 13.6 1.45 N.D. 0.191 N.D. 0.00 N.D. N.D. N.D. N.D. 8.3 0.813 N.D. N.D. N.D.
BPB 13.6 1.67 N.D. 0.199 N.D. 0.00 N.D. N.D. N.D. N.D. 83.3 1.16 N.D. 0.633 0.632
BPZ 0.00 N.D. N.D. N.D. N.D. 0.00 N.D. N.D. N.D. N.D. 8.3 2.03 N.D. N.D. N.D.
BPAF 0.00 N.D. N.D. N.D. N.D. 0.00 N.D. N.D. N.D. N.D. 83.3 <LOQ N.D. 1.00 1.05
9BPs 100 165 28.6 67.2 59.3 100 87.9 8.30 28.0 24.2 100 62.8 35.2 46.8 45.7


Among the detected BPs, BPA consistently exhibited the highest mean concentrations across all three years: 27.6 ng L−1 in 2022, 13.7 ng L−1 in 2023, and 21.9 ng L−1 in 2024. BPS and BPF followed, with mean concentrations ranging from 4.18 to 25.7 ng L−1. The remaining BPs had mean concentrations near the detection limits, approximately one order of magnitude lower than that of BPA. Although BPA accounted for approximately 50% of the total concentration, the combined contribution of BPA analogues (BPS, BPF, and BPAP) reached 51–58%, surpassing BPA's dominance. This shift reflects the growing production and usage of BPA alternatives.

3.2 Spatial distribution of BPs

As shown in Fig. 1, in September 2022, elevated Σ9BPs concentrations were observed at sites Y1 to Y6 (Yangtze River Tongling–Nanjing section), with BPS as the dominant compound. Site Y6 exhibited the highest Σ9BPs concentration, primarily driven by BPS and BPA. Located at the Nanjing Jianjiang North Estuary water source area, Site Y6 is adjacent to the Nanjing Chemical Industrial Park, which hosts multiple chemical and petrochemical companies. The elevated Σ9BPs levels at this site may be attributed to discharges of chemical wastewater containing bisphenol analogues from the industrial park, resulting in suboptimal water quality despite its designation as a water source. At sites Y7 to Y14 (Yangtze River Nanjing–Zhangjiagang section), Σ9BPs concentrations varied significantly, with BPS or BPA predominating at different locations, likely influenced by diverse industrial wastewater sources. Sites Y15 to Y20 (Zhangjiagang–Shanghai section), situated in the Yangtze River estuary, showed relatively lower Σ9BPs levels dominated by BPA, potentially due to the diluting effects of seawater.
image file: d5em00294j-f1.tif
Fig. 1 Distribution characteristics of BPs in water from the lower reaches of the Yangtze River in 2022.

In contrast to the 2022 findings, the analytical results of water samples collected in September 2023 (Fig. 2) revealed no significant differences in Σ9BPs concentrations among most sampling sites, except for site Y12, which exhibited elevated Σ9BPs levels dominated by BPA—consistent with its 2022 profile. Y12 is a monitoring section adjacent to the Taixing Economic Development Zone, a large-scale industrial park specializing in chemical new materials, new energy, and high-end equipment manufacturing (marine and ship engineering). Given that a significant proportion of BPs originate from industrial waste discharges, the consistently higher Σ9BPs concentrations at Y12 in both 2022 and 2023 are likely attributable to emissions from this industrial cluster.


image file: d5em00294j-f2.tif
Fig. 2 Distribution characteristics of BPs in water from the lower reaches of the Yangtze River in 2023.

The analytical results of Yangtze River water samples collected in September 2024, expanded to include cities at the middle-lower Yangtze River transition zone (e.g., Jiujiang), are shown in Fig. 3. Except for elevated Σ9BPs concentrations at sites Y14, Y9, Y24, and Y23, no significant differences were observed among other sampling sites. For the closely clustered sites Y21–Y23, Σ9BPs concentrations showed minimal variation but exhibited a gradual upward trend. In September 2024, the Yangtze River basin entered the late flood season, characterized by reduced precipitation in the middle-lower reaches and declining upstream inflow. These hydrological conditions likely led to decreased flow rates in the Jiujiang-Hukou section, weakening pollutant dilution capacity and thereby increasing BP concentrations per unit water volume. Concurrently, Poyang Lake entered its recession period due to falling Yangtze water levels, diminishing the backwater effect from the lake on the mainstream Yangtze near Hukou. This further reduced flow velocity, contributing to pollutant retention in the area.


image file: d5em00294j-f3.tif
Fig. 3 Distribution characteristics of BPs in water from the lower reaches of the Yangtze River in 2024.

3.3 Annual comparison of BPs

The concentrations of the five major BPs detected over the three years are plotted in Fig. 4 to assess year-to-year September rainy season differences. Compared to September 2022, the mean concentrations of all detected BPs (except BPE) decreased in 2023 and 2024. Specifically, the mean concentrations of BPA and BPF in 2022 were double those observed in 2023 and 1.5 times higher than those recorded in 2024. Similarly, the mean concentration of BPS in 2022 was three times that of 2023 and 2.5 times that of 2024. One-way ANOVA was conducted to evaluate temporal differences in BPs concentrations, with time as the factor and BP concentrations as the dependent variable. The results revealed statistically significant variations (p < 0.05) for BPA, BPS, BPF, BPE, and BPAP in September across the three years.
image file: d5em00294j-f4.tif
Fig. 4 Year-to-year September rainy season comparison of BPs in river water from the lower reaches of the Yangtze River.

The observed decline in BPs concentrations in 2023 and 2024 may be linked to hydrological conditions. In 2022, the lower Yangtze River experienced its most severe meteorological drought since comprehensive records began in 1961, resulting in extremely low water levels during the flood season. By contrast, September 2023 coincided with the wet season, characterized by significantly higher rainfall and increased river discharge compared to 2022, which likely diluted BPs concentrations. In 2024, reduced water levels compared to 2023 may explain the slight rebound in BPs concentrations. These findings are consistent with the research by Zhang et al., who reported lower BPs concentrations in the Qinhuai River (a major tributary of the lower Yangtze) during flood seasons due to dilution effects from increased rainfall.13 This consistency underscores the critical role of hydrological dynamics in shaping BP distribution patterns.

3.4 Source analysis of BPs

To identify the sources of BPs in the lower Yangtze River, statistical correlation analysis was applied to the dataset of detected BPs. Spearman correlation coefficients were calculated pairwise for the five major BPs, and the results are summarized in Fig. 5. Significant correlations were observed among BPA, BPF, BPE, and BPAP, suggesting the potential presence of common sources. In contrast, BPS showed no significant correlations with the others, indicating distinct origins. Research by Zhang et al. highlights untreated industrial wastewater and urban stormwater runoff as major contributors to riverine BPs.13 In this study, elevated BPA concentrations at site Y12 (near the Taixing Economic Development Zone) likely originate from wastewater discharges of industrial facilities within the zone, which hosts multiple chemical plants. This finding aligns with the hypothesis that industrial effluents from the wastewater treatment plants in the zone constitute a primary source of BPA at this site.
image file: d5em00294j-f5.tif
Fig. 5 Correlation coefficients of five BPs in the lower reaches of the Yangtze River (*: significantly correlated at the 0.05 level).

3.5 Ecological risk assessment of BPs

In this study, BPB and BPP were excluded from ecological risk assessment due to insufficient toxicity data, low concentrations, and low detection rates. The toxicity endpoints and PNEC values for all BPs are listed in Table S5.

Risk quotient (RQ) values for BPs in the lower Yangtze River are shown in Fig. 6. Notably, BPS exhibited RQ values consistently exceeding 0.1(0.1–8.6), and the RQ values exceeding threshold levels with significant dispersion were omitted from the graphical representation. BPA posed low ecological risks (RQ ≥ 0.01) at some sites in 2022 and 2024, with average concentrations reaching low-risk thresholds in those years. In 2023, all BPA RQ values were <0.01, indicating negligible risk. As discussed earlier, drought in 2022 and reduced water levels in 2024 likely elevated BPA concentrations at specific sites, increasing associated risks. BPF showed low risk (RQ ≥ 0.1) only at site Y21 in September 2022, while BPE and BPAP posed no significant risks during the three-year study. BPS demonstrated markedly higher ecological risks than other BPs, with RQ values ranging from 0.102 to 7.57. At all sites where BPS was detected, concentrations corresponded to moderate or high risks. This elevated risk may stem from limited BPS toxicity data and the high sensitivity of zebrafish to BPS, resulting in a significantly lower PNEC value compared to that of other BPs. These findings highlight the pressing necessity for intensified research into the toxicity of BPS, as well as for more stringent monitoring of its environmental presence. Zhang et al. reported similar patterns in the Qinhuai River basin, where BPS posed high risks to invertebrates (average RQ = 1.30), and BPA showed moderate risks in the pre-flood season.13 Compared to findings from other studies, the ecological risks associated with BPs in the lower Yangtze are relatively low. However, the moderate-to-high risks posed by BPS to fish warrant immediate attention to mitigate potential adverse impacts on aquatic ecosystems.


image file: d5em00294j-f6.tif
Fig. 6 Ecological risk of BPs in the lower reaches of the Yangtze River.

3.6 Health risk assessment of BPs

According to the previous research results of researchers in our research group,29 we reasonably speculate that BPs do exist in drinking water. In this study, Y3, Y4, Y6, Y11, Y18, Y21 and Y22 are all water source locations, and therefore health risks were evaluated for water intake points designated as drinking water sources in the lower Yangtze River: six sites (Y4, Y6, Y11, Y16, Y18, and Y22) in September 2022, two sites (Y6 and Y11) in September 2023, and two sites (Y3 and Y21) in September 2024. The estimated daily intake (EDI) of BPs via drinking water for different age groups was calculated using eqn (2.2), with the results shown in Fig. 7.
image file: d5em00294j-f7.tif

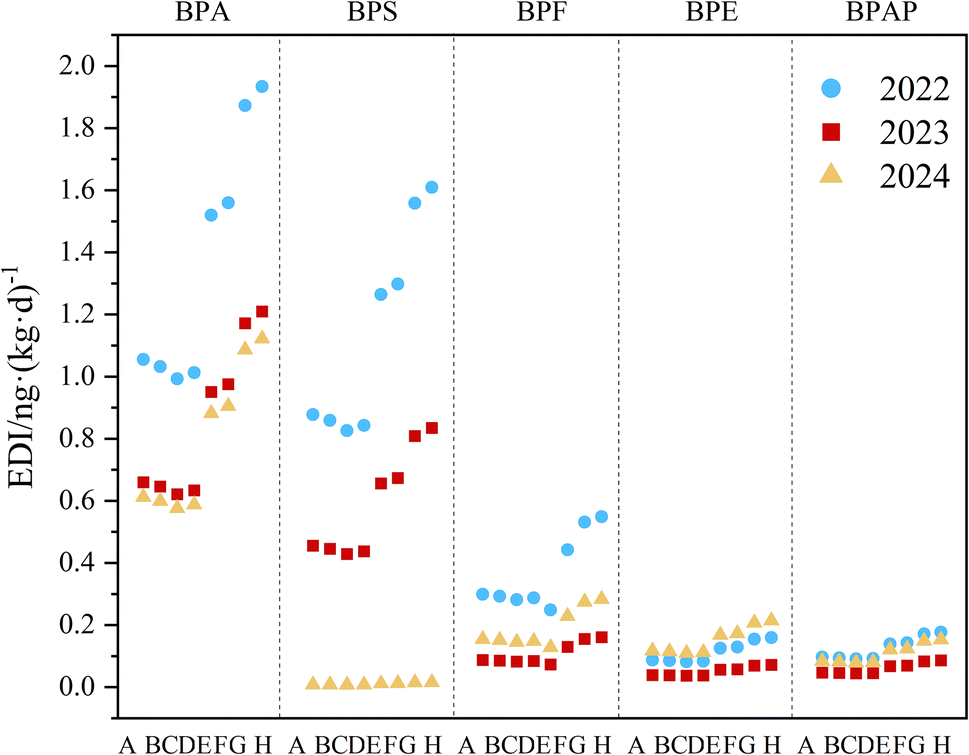

Fig. 7 (A) Adult male (≥18 years old), (B) adult female (≥18 years old), (C) boy (12–15 years old), (D) girl (12–15 years old), (E) boy (6–9 years old), (F) girl (6–9 years old), (G) boy (3–4 years old), (H) girl (3–4 years old). Health risk of BPs in drinking water sources of the lower reaches of the Yangtze River.

Among all BPs, BPA exhibited the highest average EDI values (0.58–1.93 ng (kg d)−1) across age groups, peaking in September 2022 (0.99–1.93 ng (kg d)−1). BPS followed closely behind, with EDIs ranging from 0.01 to 1.60 ng (kg d)−1, also reaching its maximum in September 2022 (0.82–1.61 ng (kg d)−1). BPE, BPAP, and BPF showed minimal exposure, with maximum EDIs below 0.55 ng (kg d)−1.

While all measured BPA concentrations complied with China's Sanitary Standards for Drinking Water (≤0.01 mg L−1),37 the EDI values for BPA exceeded the European Food Safety Authority's revised temporary tolerable daily intake (t-TDI) of 0.2 ng (kg d)−1,38 suggesting potential health risks under this stricter guideline. These findings highlight the need to reassess exposure thresholds and strengthen the monitoring of BPs in drinking water sources to safeguard public health.

4 Conclusions

(1) Occurrence of BPs in the lower Yangtze River

Over three years (2022–2024), nine target BPs were detected with frequencies of 8.3–100%. ∑9BPs concentrations were the highest in 2022, decreased in 2023, and increased again in 2024. BPA had the highest levels, followed by BPS and BPF. Compared to global studies, the BP levels in this study were relatively low. Elevated concentrations were observed near specific locations in 2022, but no clear spatial trends were seen in 2023 or 2024. Significant variations were noted for BPA, BPS, BPF, BPE, and BPAP within the three-year time span, likely related to changes in rainfall and water levels.

(2) Source analysis

Correlation analysis indicated that BPS had no significant association with BPA, BPF, BPE, or BPAP, implying distinct sources. Conversely, BPA, BPF, BPE, and BPAP likely share common origins, such as wastewater treatment plants and urban runoff.

(3) Ecological risks

Ecological risk assessments showed low risks for BPA at specific sites and for BPF at one site, with BPE and BPAP posing negligible risks. In contrast, BPS consistently posed moderate-to-high risks at all detected sites, necessitating urgent mitigation measures.

(4) Human health risks

EDI values for BPs in drinking water sources exceeded the European Food Safety Authority's revised t-TDI for BPA, indicating potential health risks for all age groups. Health assessments for other BPs remain limited due to the lack of established t-TDI values.

Data availability

The risk assessment factor related data used in this paper are available at: https://publications.jrc.ec.europa.eu/repository/handle/JRC23785.

Author contributions

Wanyu Li: conceptualisation, data curation, formal analysis, investigation, methodology, resources, writing-original draft, writing-review editing. Wenxuan Ma: data curation, investigation, methodology, resources. Jiajun Chang: resources. Yao Xiao: methodology, resources. Rui Wang: funding acquisition. Zhiliang Zhu: funding acquisition. Daqiang Yin: funding acquisition. Yue Li: methodology. Yanling Qiu: funding acquisition, project administration, supervision, writing-review editing.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This study was funded by the National Key Research and Development Project of China (2021YFC3200801).

Notes and references

  1. E. Yamazaki, N. Yamashita, S. Taniyasu, J. Lam, P. K. S. Lam and H. B. Moon, et al., Bisphenol A and other bisphenol analogues including BPS and BPF in surface water samples from Japan, China, Korea and India, Ecotoxicol. Environ. Saf., 2015, 122, 565–572 CrossRef CAS PubMed .
  2. S. Kitamura, T. Suzuki, S. Sanoh, R. Kohta, N. Jinno and K. Sugihara, et al., Comparative study of the endocrine-disrupting activity of bisphenol A and 19 related compounds, Toxicol. Sci., 2005, 84(2), 249–259 CrossRef CAS PubMed .
  3. S. Eladak, T. Grisin, D. Moison, M.-J. Guerquin, T. N'Tumba-Byn and S. Pozzi-Gaudin, et al., A new chapter in the bisphenol A story: bisphenol S and bisphenol F are not safe alternatives to this compound, Fertil. Steril., 2015, 103(1), 11–21 CrossRef CAS PubMed .
  4. J. M. Braun and R. Hauser, Bisphenol A and children's health, Curr. Opin. Pediatr., 2011, 23(2), 233–239 CrossRef CAS PubMed .
  5. K. Czarny-Krzymińska, B. Krawczyk and D. Szczukocki, Bisphenol A and its substitutes in the aquatic environment: Occurrence and toxicity assessment, Chemosphere, 2023, 315, 137763 CrossRef PubMed .
  6. J. Liu, L. Zhang, G. Lu, R. Jiang, Z. Yan and Y. Li, Occurrence, toxicity and ecological risk of Bisphenol A analogues in aquatic environment – a review, Ecotoxicol. Environ. Saf., 2021, 208, 111481 CrossRef CAS PubMed .
  7. D. Chen, K. Kannan, H. Tan, Z. Zheng, Y.-L. Feng and Y. Wu, et al., Bisphenol Analogues Other Than BPA: Environmental Occurrence, Human Exposure, and Toxicity—A Review, Environ. Sci. Technol., 2016, 50(11), 5438–5453 CrossRef CAS .
  8. C. Montagner, F. Sodré, R. Acayaba, C. Vidal, I. Campestrini and M. Locatelli, et al., Ten Years-Snapshot of the Occurrence of Emerging Contaminants in Drinking, Surface and Ground Waters and Wastewaters from São Paulo State, Brazil, J. Braz. Chem. Soc., 2018, 30, 614–632 Search PubMed .
  9. M. Česen, M. Ahel, S. Terzić, D. J. Heath and E. Heath, The occurrence of contaminants of emerging concern in Slovenian and Croatian wastewaters and receiving Sava river, Sci. Total Environ., 2019, 650, 2446–2453 CrossRef PubMed .
  10. P. Šauer, H. Švecová, K. Grabicová, F. Gönül Aydın, T. Mackuľak and V. Kodeš, et al., Bisphenols emerging in Norwegian and Czech aquatic environments show transthyretin binding potency and other less-studied endocrine-disrupting activities, Sci. Total Environ., 2021, 751, 141801 CrossRef PubMed .
  11. V. A. Santhi, N. Sakai, E. D. Ahmad and A. M. Mustafa, Occurrence of bisphenol A in surface water, drinking water and plasma from Malaysia with exposure assessment from consumption of drinking water, Sci. Total Environ., 2012, 427–428, 332–338 CrossRef CAS PubMed .
  12. D. Lalwani, Y. Ruan, S. Taniyasu, E. Yamazaki, N. J. I. Kumar and P. K. S. Lam, et al., Nationwide distribution and potential risk of bisphenol analogues in Indian waters, Ecotoxicol. Environ. Saf., 2020, 200, 110718 CrossRef CAS PubMed .
  13. S. Zhang, Y. Fan, X. Qian, Z. Wu, S. Feng and W. Xu, et al., Spatiotemporal distribution, source apportionment, and ecological risk of bisphenol analogues in a highly urbanized river basin, Sci. Total Environ., 2024, 920, 170964 CrossRef CAS PubMed .
  14. H. Zhang, Y. Zhang, J. Li and M. Yang, Occurrence and exposure assessment of bisphenol analogues in source water and drinking water in China, Sci. Total Environ., 2019, 655, 607–613 CrossRef CAS PubMed .
  15. H. Wang, Z. Tang, Z.-h Liu, F. Zeng, J. Zhang and Z. Dang, Occurrence, spatial distribution, and main source identification of ten bisphenol analogues in the dry season of the Pearl River, South China, Environ. Sci. Pollut. Res., 2022, 29(18), 27352–27365 CrossRef CAS PubMed .
  16. X. Zhao, H. Zhang, Z.-l Chen, X.-c Wang and J.-m Shen, Spatial and temporal distributions of bisphenol analogues in water and sediment from the Lanzhou section of the Yellow River, China, Arabian J. Geosci., 2020, 13(21), 1115 CrossRef CAS .
  17. A. Mishra, D. Goel and S. Shankar, Bisphenol A contamination in aquatic environments: a review of sources, environmental concerns, and microbial remediation, Environ. Monit. Assess., 2023, 195(11), 1352 CrossRef CAS PubMed .
  18. Y. Liu, S. Zhang, N. Song, R. Guo, M. Chen and D. Mai, et al., Occurrence, distribution and sources of bisphenol analogues in a shallow Chinese freshwater lake (Taihu Lake): Implications for ecological and human health risk, Sci. Total Environ., 2017, 599–600, 1090–1098 CrossRef CAS .
  19. J. Liu, J. Guo, Y. Cai, J. Ren, G. Lu and Y. Li, et al., Multimedia distribution and ecological risk of bisphenol analogues in the urban rivers and their bioaccumulation in wild fish with different dietary habits, Process Saf. Environ. Prot., 2022, 164, 309–318 CrossRef CAS .
  20. C. Zheng, J. Liu, J. Ren, J. Shen, J. Fan and R. Xi, et al., Occurrence, Distribution and Ecological Risk of Bisphenol Analogues in the Surface Water from a Water Diversion Project in Nanjing, China, Int. J. Environ. Res. Public Health, 2019, 16(18), 3296 CrossRef CAS PubMed .
  21. Z. Yan, Y. Liu, K. Yan, S. Wu, Z. Han and R. Guo, et al., Bisphenol analogues in surface water and sediment from the shallow Chinese freshwater lakes: Occurrence, distribution, source apportionment, and ecological and human health risk, Chemosphere, 2017, 184, 318–328 CrossRef CAS PubMed .
  22. W. Si, Y. Cai, J. Liu, J. Shen, Q. Chen and C. Chen, et al., Investigating the role of colloids on the distribution of bisphenol analogues in surface water from an ecological demonstration area, China, Sci. Total Environ., 2019, 673, 699–707 CrossRef CAS .
  23. H. Jin and L. Zhu, Occurrence and partitioning of bisphenol analogues in water and sediment from Liaohe River Basin and Taihu Lake, China, Water Res., 2016, 103, 343–351 CrossRef CAS PubMed .
  24. M. H. Chen, M. Guo, H. Z. Xu, D. Liu, J. Cheng and J. Li, et al., [Distribution Characteristics and Potential Risk of Bisphenol Analogues in Surface Water and Sediments of Lake Taihu], Huanjing Kexue, 2017, 38(7), 2793–2800 Search PubMed .
  25. Y. Wan, W. Xia, S. Yang, X. Pan, Z. He and K. Kannan, Spatial distribution of bisphenol S in surface water and human serum from Yangtze River watershed, China: Implications for exposure through drinking water, Chemosphere, 2018, 199, 595–602 CrossRef CAS PubMed .
  26. Y. Chen, Y. Tan, Y. Feng, T. Dong, C. Jiang and C. Wang, et al., Selected legacy and emerging organic contaminants in sediments of China's Yangtze – the world's third longest river: Response to anthropogenic activities, Environ. Pollut., 2024, 346, 123608 CrossRef CAS .
  27. Y. F. Nie, Z. M. Qiang, H. Q. Zhang and C. Adams, Determination of endocrine-disrupting chemicals in the liquid and solid phases of activated sludge by solid phase extraction and gas chromatography-mass spectrometry, J. Chromatogr. A, 2009, 1216(42), 7071–7080 CrossRef CAS PubMed .
  28. F. L. Chiriac, I. Paun, F. Pirvu, L. F. Pascu and T. Galaon, Occurrence and Fate of Bisphenol A and its Congeners in Two Wastewater Treatment Plants and Receiving Surface Waters in Romania, Environ. Toxicol. Chem., 2020, 40(2), 435–446 CrossRef PubMed .
  29. Y. L. Yu, Z. D. Song, Z. L. Zhu, D. Q. Yin and Y. L. Qiu, Occurrence, removal efficiency and exposure assessment of bisphenols in drinking water treatment plants, Environ. Sci.:Water Res. Technol., 2023, 9(3), 806–817 RSC .
  30. C. Simarro-Gimeno, B. Garlito, E. Pitarch and F. Hernández, Evaluation of direct sample injection as a fast, no-sample handling, approach for the LC-MS/MS monitoring of pharmaceuticals in different water matrices, Microchem. J., 2023, 193, 108985 CrossRef CAS .
  31. B. K. Matuszewski, M. L. Constanzer and C. M. Chavez-Eng, Strategies for the assessment of matrix effect in quantitative bioanalytical methods based on HPLC-MS/MS, Anal. Chem., 2003, 75(13), 3019–3030 CrossRef CAS PubMed .
  32. J. H. B. De Bruijn, S. Johansson, M. Luotamo, S. Munn, C. Musset, S. Olsen, H. Olsson, A. Paya-Perez, F. Pedersen, K. Rasmussen and B. Sokull-Kluttgen, Technical Guidance Document on risk Assessment. Part 2 EUR 20418 EN.2002, available from: https://publications.jrc.ec.europa.eu/repository/handle/JRC23785 Search PubMed.
  33. X. J. Yin, X. H. Li, D. X. Zhu, H. Wang, X. Li and S. T. Yue, et al., Residue characteristics, spatiotemporal distribution and ecological risk assessment of organochlorine and organophosphorus pesticides in the northwest Taihu Lake Basin, J. Environ. Sci., 2024, 44(01), 283–298 CAS .
  34. X. G. Zhao, X. L. Duan. Exposure Factors Handbook of Chinese Population (Adults), 2014 Search PubMed .
  35. B. Wang, X. Duan. Exposure Factors Handbook of Chinese Population (Children 0–5 years), 2016 Search PubMed .
  36. X. Zhao and X. Duan. Exposure Factors Handbook of Chinese Population (Children 6–17 years), 2016 Search PubMed .
  37. State Administration for Market Regulation, Standardization Administration of China, Hygienic Standards For Drinking Water, 2022 Search PubMed .
  38. C. Lambré, J. M. Barat Baviera, C. Bolognesi, A. Chesson, P. S. Cocconcelli and R. Crebelli, et al., Re-evaluation of the risks to public health related to the presence of bisphenol A (BPA) in foodstuffs, EFSA J., 2023, 21(4), e06857 Search PubMed .

Footnotes

Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5em00294j
These authors contributed equally to the work and are co-first authors.
