Emerging investigator series: electrochemically-mediated remediation of GenX using redox-copolymers†

Paola Baldaguez Medina , Stephen Cotty , Kwiyong Kim , Johannes Elbert and Xiao Su *
Chemical and Biomolecular Engineering, University of Illinois at Urbana-Champaign, Urbana, Illinois 61801, USA. E-mail: x2su@illinois.edu

First published on 30th September 2021

---

---

Water impact GenX is a new class of short-chain PFAS that led to increasing environmental concerns due to its ubiquitous occurrence. This study explores the capability of redox-copolymers consisting of TEMPO units to electrochemically capture and remove GenX from water streams. We demonstrate the high capacity of the redox electrodes for GenX adsorption in batch and flow-by cell systems. We also show the enhancement of kinetics with applied potential, and the ability to integrate the electrosorbents with boron-doped diamond (BDD) electrodes during regeneration for GenX defluorination.

1. Introduction

Poly and perfluoroalkyl substances (PFAS) are a large group of anthropogenic organic pollutants that have been extensively used since the 1950s.¹ Their chemical structure is composed of a strong carbon fluoride bond that increases their persistence in the environment, thus promoting the search for effective treatment technologies. Around six thousand PFAS are known, which have been classified by their hydrophilic moieties. The most abundant compounds are perfluoroalkyl acids which possess at least one negatively charged functional group, commonly carboxylic or sulfonic acids. PFAS contain oleophobic and hydrophobic characteristics that are attractive for a range of commercially available products such as firefighting foams, non-stick cookware, food packaging, cosmetics, and many more.^2–5 Consequently, these ubiquitous compounds have been found in soil, landfills, air, and water, and their potential toxicity and bioaccumulation have caused global concern.^6–9 Contaminated water is suspected to be the primary route of exposure to humans.¹⁰

Therefore, the U.S. Environmental Protection Agency (EPA) and the European Commission declared advisory levels for drinking water of 70 ng L⁻¹ and 0.5 μg L⁻¹, respectively, to reduce the spread of these compounds into consumable water.^11,12 PFAS have been detected in aquatic and drinking water at levels that greatly surpass the EPA and European Commission standards.^8,13–16 For example, Veneto, Italy, has been one of the places where the abundant concentration of PFAS has been found in drinking water,¹⁴ with concentration levels ranging from 319 to as high as 1475 ng L⁻¹.¹⁴ In the United States, surface water has been found to contain levels of PFAS up to 2000 ng L⁻¹, and in surface water foams, up to 97000 ng L⁻¹.^17,18 Also, in some instances of groundwater, PFAS concentrations have been found at levels as high as 5200 ng L⁻¹.¹⁹ Associated with this widespread occurrence, numerous studies have shown their presence in human blood serum and wildlife, which is indicative of the importance of monitoring and implementation of targeted treatment methods.^20–22

Most studies of PFAS adsorption and destruction have focused on perfluorooctanoic acid (PFOA) and perfluorooctanesulfonic acid (PFOS). These two compounds were found more broadly and at much higher concentrations than other PFAS in water,²³ being amongst the original PFAS developed in the early 1940s.¹ However, with increasing stringent regulations for PFOA and PFOS,¹¹ there has been a rise in the use of short chain PFAS as alternatives. Among these, hexafluoropropylene oxide dimer acid (HFPO-DA, also known as GenX) has seen rapidly increasing use as a direct substitute of PFOA,²⁴ and being utilized in even larger quantities than PFOA, to match the performance of longer chain precursors.²⁵ While GenX could potentially have lower bioaccumulation properties based on their volatility and C–F distribution, it has increasingly been detected in water, with these short-chain compounds as well as their degradation by-products persisting in the environment.²⁶

The molecular properties of GenX present several challenges for separation processes and environmental remediation. The shorter aliphatic backbone of GenX, along with the middle ether bond, makes it more hydrophilic when compared with longer chain PFAS. Also, these shorter chain PFAS present higher mobility in the environment, increasing their chances of being found in water streams and even drinking water.^27,28 GenX also exhibits high water solubility due to its pK_a of 2.84, which provides the molecule with a negative charge over a wide pH range.²⁹ Previous studies have targeted GenX for water remediation using conventional treatment techniques such as adsorption, ion exchange, filtration, and reverse osmosis.^30,31 For adsorption based techniques, short-chain PFAS still suffer from regeneration efficiency limitations,^30,32 and limited molecular selectivity. In addition, traditional chemical adsorption methods require the input of additional chemicals and solvents for regeneration, which increases the operating cost of the process as well as chemical footprint.³³

Thus, an electrochemical route for separation and remediation of PFAS can provide an attractive platform that is environmentally friendly, by reducing energy and chemical costs. Recently, electrochemical pathways have been explored for the efficient removal and remediation of emerging contaminants in water by leveraging molecularly-tailored interfaces for selective electrosorption and destruction.^34–38 In particular, our previous study has leveraged redox-copolymers for the selective binding and integrated defluorination of long-chain PFAS.³⁶ It revealed that three main interactions – hydrophobicity, amine interactions, and electrostatic interactions – could be tuned to synergistically capture/release traditional PFAS such as PFOA and PFOS without the use of a chemical regenerant.

However, redox electrosorbents have not yet been evaluated for shorter chain PFAS such as GenX – which is a critical gap for the performance of these redox systems due to the increased occurrence of these new classes of PFAS. Here, we selected a copolymer that combines 4-methacryloyloxy-2,2,6,6-tetramethylpiperidin-1-oxyl (TMA) and 4-methacryloyloxy-2,2,6,6-tetramethylpiperidine (TMPMA) repeating units, explicitly PTMA-co-PTMPMA (Fig. 1), proven to be effective in adsorbing long-chain PFAS in our previous study.³⁶ Amine functionalities have been regarded as a superior binding site with affinity for negatively charged PFAS,^39,40 and the secondary amine functionality (N–H) of the piperidine unit exhibits a high pK_a value (pK_a = 11.28),⁴¹ providing protonated and thus positively charged binding sites toward negatively charged GenX in a wide range of pH values. At the same time, the redox couple of a nitroxide radical/oxoammonium (N–O·/NO⁺) allows for additional enhancement in the electrostatic interactions with the anionic carboxylate group of GenX and serves as a reversible, electrochemically-mediated switch for adsorption and regeneration.

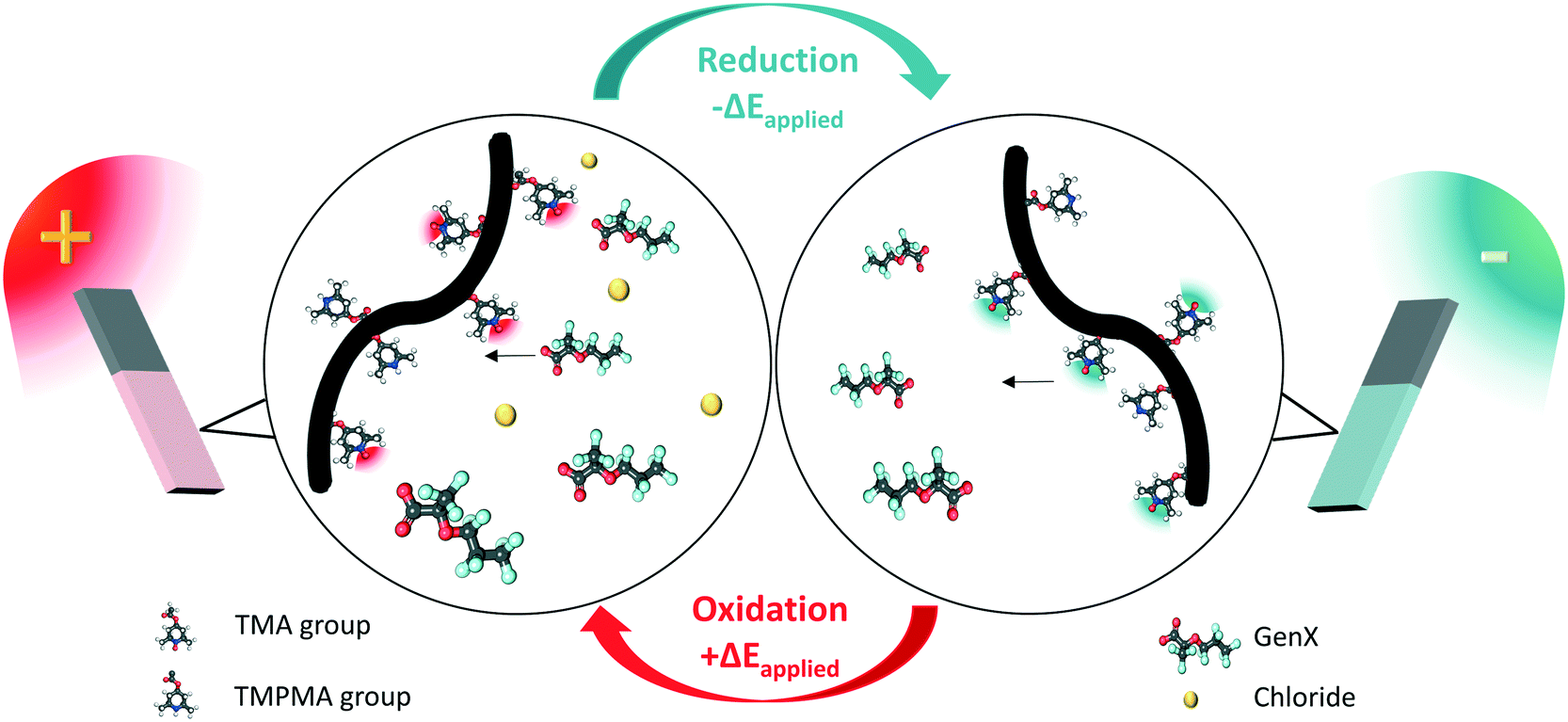

In this work, we investigated redox-electrodes functionalized with PTMA-co-PTMPMA as an electrosorbent for short-chain PFAS, specifically GenX. The redox-electrode system was proven to adsorb GenX selectively when an oxidative potential is applied, and the ability to release bound GenX at a reductive potential (Fig. 2). We investigated the balance of electrostatic vs. hydrophobic interaction at different pH values, and the application of our electrosorbent to a range of environmentally relevant water matrices. Also, the redox electrodes were translated from a batch analytical scale to a larger flow cell system, to showcase the ability of the redox-electrodes for adsorbing/desorbing GenX through electrochemical modulation for more relevant practical processes. Finally, we examined the reductive degradation of GenX using a combined asymmetric redox-copolymer//boron-doped diamond (BDD) configuration, where the BDD counter electrode was shown to be effective for the defluorination of the released GenX.

2. Materials and methods

2.1 Materials

Undecafluoro-2-methyl-3-oxahexanoic acid (GenX) (97%) was obtained from Matrix Scientific. All other chemicals were obtained from Sigma Aldrich, VWR, Fisher Scientific, or TCI, and they were used as received. Acetonitrile and ammonium acetate for LC/MS analysis were of LC grade. Water for LC/MS and ion chromatography (I.C.) analysis was obtained from an ELGA Purelab Flex 1 system >18 MΩ. The stock solution for each PFAS compound was prepared in DI water at a concentration of 10 mM without supporting electrolytes, which was diluted to prepare a range of starting solutions for electrochemical tests. These solutions were stored in the fridge (4 °C), and the storage time was no longer than six months.

2.2 Analytical methods for PFAS and fluoride detection

A Waters Synapt G2Si with Waters Acquity H-class UPLC LC/MS system was used to detect the PFAS concentration in an aqueous solution. All parameters utilized for the LC/MS analysis can be found in the ESI† of this work (Section S1.5). For detecting the fluoride content, a Thermo Fisher Dionex 2100 ion chromatography system (I.C.) was utilized. The analytical parameters used have been described elsewhere.³⁶ For each analytical run, a new set of calibration curves were assessed for both LC/MS and (I.C.).

2.3 Electrode preparation and characterization

The polymer-coated electrodes of PTMA-co-PTMPMA/multi-walled carbon nanotubes (MWCNTs) were prepared using a dip-coating technique, which is described in detail in the ESI† (Section S1.2). PTMA-co-PTMPMA has been previously synthesized, with a product composed of 51 mol% TMA and 49 mol% TMPMA.³⁶ This copolymer is known for its optimal triple interactions with long-chain PFAS and dispersion with multi-walled carbon nanotubes that serve as an excellent binder to improve the surface area and conductivity. The ink solution ratio was composed of 1:1 PTMA-co-PTMPMA:MWCNT and was applied onto the stainless-steel mesh electrode via a dip-coating technique and dried with air. The loading mass was maintained at 0.5 mg in an active surface area of 2 cm².

2.4 Electrochemical experiments

Electrochemical experiments were carried out in a potentiostat (SP-200 Potentiostat, Biologic, and Squidstat Plus, Admiral Instruments). For batch electrosorption and release experiments, a BASi VC-S voltammetry electrochemical cell in a three-electrode configuration was used. Ag/AgCl was used as the reference electrode, and Pt was used as the counter electrode for all adsorption experiments. Batch experiments were performed in 5 mL solutions unless otherwise specified. The typical electrosorption time was 30 min, with a solution containing 20 mM NaCl, unless otherwise indicated. All the adsorption calculations were performed using the total mass of the polymer and multi-walled carbon nanotubes added together. Error bars are shown for standard errors of the mean on replicate experiments. Based on the results obtained in Fig. S12,† the MWCNT itself was shown to have some limited adsorption towards GenX.

2.5 Electrochemical flow cell

For flow cell experimentation, a custom in-house flow-by cell was utilized in a two-electrode configuration, with 16 cm² area (4 cm × 4 cm) electrodes. The working electrodes were coated with the PTMA-co-PTMPMA/MWCNT solution using a drop-casting technique. Either a bare titanium or a platinum (Pt) sputter-coated (Pt thickness of 251.0 nm) titanium plate was used as a counter electrode. All the experiments were performed using chronopotentiometry by applying 2 mA for adsorption and −2 mA for desorption with a GenX flow rate of 1 mL min⁻¹ from a Longer Instruments peristaltic pump.

3. Results and discussion

3.1 PTMA-co-PTMPMA electrode fabrication and characterization

PTMA-co-PTMPMA was synthesized by oxidation of PTMPMA with meta-chloroperoxybenzoic acid (MCPBA), as described previously.³⁶ The content of nitroxide radicals was found to be 51 mol%, determined by ultraviolet-visible spectroscopy at 460 nm absorption wavelength.³⁶ The presence of nitroxide and amine functionalities on the electrode was confirmed by X-ray photoelectron spectroscopy (XPS) (Fig. S4†). The lower binding energy peak (400 eV) corresponds to the N–H functional group, while the N–O· peak can be found at 402 eV. The cyclic voltammogram in Fig. 3a indicated that oxidation of the N–O· to NO⁺ occurred at 0.83 V vs. Ag/AgCl, while reduction occurred at 0.53 V vs. Ag/AgCl. In addition, contact angle measurements show the hydrophobic properties of PTMA-co-PTMPMA, which can be expected to be beneficial for GenX uptake (Fig. S5†).

3.2 Electrosorption of GenX

Before each electrochemical measurement, we carried out a pre-treatment step to ensure all electrodes possessed the same state of charge (fully discharged, with no counter ion bound). For pre-treatment, cyclic voltammetry was carried out from 0.0 to 1.2 V vs. Ag/AgCl in 0.1 M NaClO₄ solution (Fig. 3a). Then, the electrode was reduced in the same solution by chronoamperometry with 0.0 V vs. Ag/AgCl for 3 minutes. Without pre-activation, redox-electrodes showed lower uptake capacities, as observed in Fig. S1.† Based on these results (Fig. S1†), we hypothesized that by fully reducing the electrode, the adsorption sites that promote higher hydrophobic interactions and electrostatic attractions can be activated simultaneously when applying an anodic potential and consequently increase the kinetics for the adsorption reaction. Electrochemical separation of GenX at different potentials was carried out in 0.1 mM + 20 mM NaCl solution. We used 0.1 mM GenX as a way to understand the competitive behaviour of the target PFAS ions towards various electrode chemistries and potentials at higher concentrations. Later, lower concentrations in the ppb range are used for simulated water matrices. The highest uptake capacity for the redox-copolymer functionalized electrodes was observed at 0.8 V vs. Ag/AgCl (Fig. 3b). At potentials higher than 0.83 V vs. Ag/AgCl, e.g. above the oxidation peak of PTMA-co-PTMPMA (Fig. 3a), the uptake capacity decreased possibly due to competing adsorption of chloride caused by enhanced capacitive effects.

Based on an energy consumption calculation at different potentials (Fig. S13a†), 0.8 V vs. Ag/AgCl was selected as an optimal operating condition due to lower energetic costs. When comparing adsorption at an electric potential at 0.8 V with open circuit adsorption, it was found that applying charge to the system enhanced the adsorption uptake capacity by more than 50 mg g⁻¹ (Fig. 3b). These findings prove the importance of additional electrostatic attractions of the oxoammonium cations in oxidized PTMA-co-PTMPMA towards the short-chain GenX PFAS. An equilibrium isotherm study revealed that at different concentrations, our system exhibited an uptake capacity of up to 497 mg g⁻¹ adsorbent when applying 0.8 V vs. Ag/AgCl for 30 minutes (Fig. 3c). The isotherm result was fitted using the Langmuir and Freundlich models. The Langmuir model portrays a better fit based on the correlation coefficient (R² = 0.997 for Langmuir, vs. R² = 0.934 for Freundlich) (Fig. S7 and Table S3†).

Time-dependent measurements were carried out to study the adsorption kinetics, at both open circuit (O.C.) and 0.8 V vs. Ag/AgCl, using 2.5 mL of 0.1 mM GenX and 20 mM NaCl (Fig. 3d). Interestingly, electrostatic enhancement promoted >95% of GenX removal in just 9 minutes, while for O.C., the reaction reached >95% removal only after 30 minutes. Linear fitting using the pseudo-first-order and pseudo-second-order kinetics model were used to estimate kinetic parameters. The best-fitting model for 0.8 V vs. Ag/AgCl was a pseudo-second-order kinetics model, with a rate constant of 0.00894 g mg⁻¹ min⁻¹ (Fig. S8 and Table S4†). In contrast, kinetics results for open circuit experiments showed a better fit with the pseudo-first-order kinetic model, based on the correlation coefficient. The rate constant for the open circuit experiment (based on the pseudo-first-order models) was 0.00268 min⁻¹ (Fig. S9 and Table S5†). Our results showed comparable kinetics to other state-of-art materials such as ion exchange resins.³²

XPS analysis performed on an adsorbed PTMA-co-PTMPMA/MWCNT electrode after applying a 0.8 V potential in 0.1 mM GenX and 20 mM NaCl indicated a ratio of 9.85 between F⁻ and Cl⁻, which was equal to a 0.89 GenX/Cl⁻ ratio, accounting for the number of fluorines in a Gen-X molecule (11). The separation factor was calculated using eqn (1), with the results showing a separation factor of 178 for GenX, indicating the high selectivity of our redox polymer toward GenX over competing chloride.

	(1)

C_GenX⁻eq and C_Cl⁻eq are the initial concentrations of their respective species in solution, 0.1 mM for GenX and 20 mM for NaCl, while the ratio of the solid phase uptake of q_F⁻ and q_Cl⁻ was estimated from the XPS analysis, 90.78% for F⁻ and 9.22% for Cl⁻. Fig. 3e further confirms the successful electrosorption of GenX based on the intense fluoride peak found after adsorption. Also, Fig. 3f shows a high-resolution scanning electron microscopy (SEM) image of the surface of a new electrode as well as an EDS mapping of PTMA-co-PTMPMA/MWCNT electrode ran for 30 min at 0.8 V vs. Ag/AgCl in 0.1 mM GenX and 20 mM NaCl, where fluoride could be detected after 30 minutes of electrosorption.

3.3 Electroseparation in various water matrices and pH effect

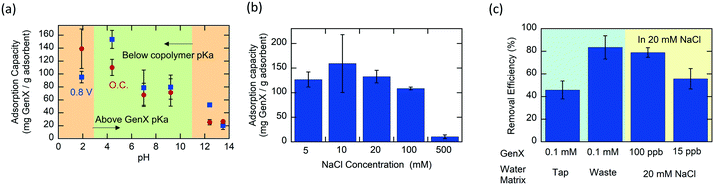

We studied the effect of solution pH on the adsorption of GenX with PTMA-co-PTMPMA. GenX's pK_a is 2.84, indicating that it would exist in the anionic form at a higher pH level.²⁹ At pH 1.9, GenX is mostly found in its neutral/protonated form, and hydrophobic interaction is hypothesized to be the dominant interaction for adsorption – note that there was no electrochemically-driven enhancement observed (Fig. 4a). At pH > 4, the adsorption would be mainly ascribed to electrostatic interactions since now GenX exists in the anionic form. Therefore, in the pH range of 4 to 9, applying a positive potential exhibited better adsorption compared to open circuit. At the higher pH region >9, competition between GenX and hydroxide counter ions seems to hinder the adsorption of GenX. Also, considering that the pK_a of the piperidine group is 11.28,⁴¹ the polymer becomes deprotonated at a very high pH, and therefore, the hydrophobic interaction becomes the dominant binding interaction. We observe that GenX adsorption was decreased when applying 0.8 V vs. Ag/AgCl at pH 13.5, Fig. 4a.

The impact of the sodium chloride concentration was studied for 0.1 mM GenX (Fig. 4b). Our findings show almost no change in adsorption capacities from 5 to 100 mM NaCl, while the adsorption under highly saline conditions⁴² (500 mM NaCl) was poor. The high concentration of competing ions screens the positive charges on the polymer, thus weakening electrostatic interactions with the GenX species. In addition, different water matrices and low concentrations of GenX were studied to test our system under near environmental conditions (Fig. 4c). The water matrices studied were tap water and municipal secondary wastewater effluent (SWE, from the Urbana-Champaign Sanitary District). The water specifications of the secondary wastewater effluent can be found in ESI† Section S1.6. The selected concentrations were 100 ppb and 15 ppb of GenX in 20 mM NaCl based on the high levels of PFAS that had been found in surface and groundwater.^17,18,43 Tap water and SWE were spiked with 0.1 mM of GenX, and both achieved >40% removal efficiency after 3 hours of electrosorption. Meanwhile, ultra-diluted samples showed >55% removal efficiency under the same experimental conditions.

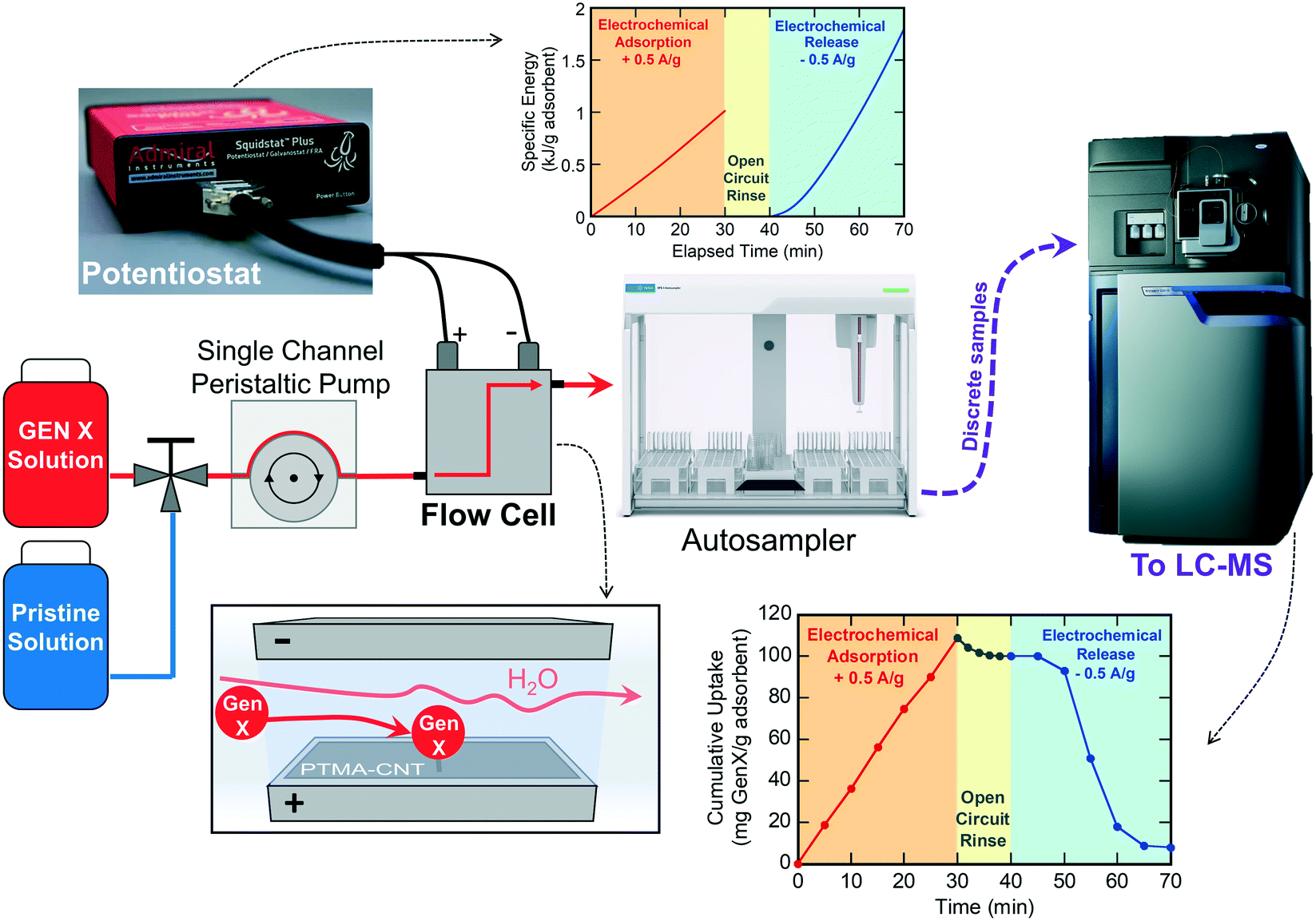

We also translated the batch scale system into an electrochemical flow-by cell device containing a 16 cm² (4 cm × 4 cm) working electrode with 8 mg of PTMA-co-PTMPMA coating, and an equal dimension titanium counter electrode for the adsorption and release of GenX. Fig. 5 shows the schematics of our flow cell system, and the assembly method is described in the ESI† (Section S1.3). Prior to electrochemical GenX adsorption, a 0.1 mM GenX solution was cycled through the flow cell apparatus (1 mL min⁻¹) at open circuit for 24 hours to allow the system to equilibrate. Electrochemical GenX adsorption was then carried out via application of a constant +2 mA current for 30 minutes, at which 109 mg g⁻¹ adsorbent was achieved with an energy consumption of 1 kJ g⁻¹ adsorbent (2 kJ g⁻¹ copolymer). The linear uptake profile in Fig. 5 indicates that complete saturation of the electrode did not occur within 30 minutes and the adsorption equilibrium of GenX is likely to be higher given more time. Following adsorption, the flow cell inlet was changed to a pristine solution containing no GenX and allowed to flush for 10 minutes at open circuit. During the solution change-over, very little GenX was observed to release into the pristine solution, and the uptake was equilibrated to 100 mg g⁻¹, indicating little to no concentration equilibrium-based release mechanism.

After adsorption, a constant current of −2 mA was applied, releasing bound GenX into a pristine flowing solution. The system showed a regeneration efficiency of 93% after 30 minutes, with 1.80 kJ g⁻¹ adsorbent (3.5 kJ g⁻¹ copolymer) energy consumed. The flow cell results showcase the potential of the PTMA-co-PTMPMA electrochemical adsorption platform for continuous adsorption applications in GenX remediation, and highlight the importance of potential in the GenX removal process, where the bound GenX was only released once a reducing current was applied.

3.4 Electrode regeneration and an asymmetric release-destruction system

Once a negative potential is applied, the NO⁺ sites were reduced to its original radical (N–O·) state, promoting the release of the GenX molecule by electrostatic repulsion. Different release/regeneration potentials were tested, ranging from −1.5 V to 0.0 V vs. Ag/AgCl for 1 hour (Fig. S11†). The results indicated that decreasing potentials led to higher release of GenX. We selected −1 V vs. Ag/AgCl for our tests as a representative potential, with a comparison between GenX release at −1 V vs. Ag/AgCl and open circuit shown in Fig. 6a. Applying a reductive potential was shown to enhance desorption compared to open circuit, with a release of GenX > 80%, after one hour of electrochemical operation (Fig. 6a).

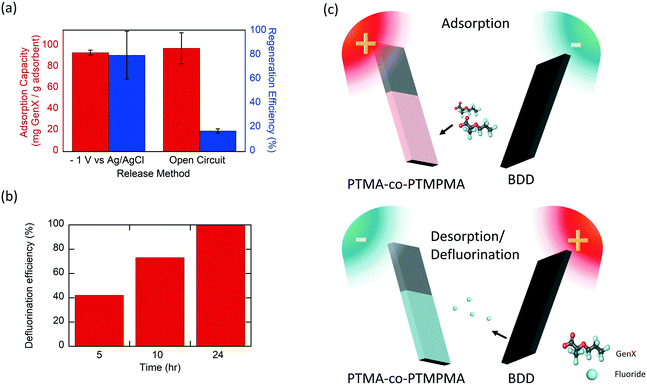

Next, cyclability tests of our system were performed for 5 cycles of electrosorption and electrochemical release. During electrosorption, a potential of 0.8 V vs. Ag/AgCl was applied for 30 min, with a solution of 5 mL of 0.1 mM GenX and 20 mM NaCl for adsorption. For desorption, a −1.0 V vs. Ag/AgCl potential was applied, and the system was reduced for 1 hour into 20 mM NaCl. This process was repeated for five full cycles, and the results shown in Fig. S16† indicate that the adsorption capacity of our system was maintained. Interestingly, the regeneration efficiency of our system (the amount of GenX recovered during release relative to that adsorbed) decreased considerably, and after four cycles, it was maintained for up to 20% regeneration efficiency (e.g., GenX released).

As such, we hypothesized that partial degradation of GenX could have occurred during reductive regeneration (Fig. S20†). High-resolution mass spectroscopy analysis was performed on a solution that mimics a typical release concentration after an adsorption cycle. This concentration was 0.024 mM GenX + 20 mM NaCl, and the mass spectra were analysed after applying −1.0 V vs. Ag/AgCl (Fig. S23†) for one hour to evaluate whether there was any electrochemically-mediated degradation (see the chromatogram comparison in Fig. S22 and HR-MS spectra in Fig. S23 and S24†). The HR-MS peak analysis seemed to indicate that GenX degradation could potentially occur at the carboxylate group and through breakage of the ether bond. Our results support our hypothesis that GenX could be degraded at reductive potentials and longer treatment times for regeneration, leading to seemingly low regeneration efficiency for separation, yet preserved the adsorption capacity. A more detailed analysis will be carried out in future studies to develop a full mechanistic model for GenX breakdown at redox-electrodes, and under varying electrochemical conditions.

The consequences from the formation of these new by-products have not been fully studied, but based on their similar chemical structures as their former PFAS versions, these C–F by-products could still be recalcitrant.⁴⁴ As such, full defluorination to fluoride should be ideally achieved as a pathway for complete remediation of these short-chain PFAS. Therefore, we decided to incorporate boron doped diamond (BDD) electrodes into the electrochemical system to increase the defluorination efficiency and further break down into fluoride during the release step. We combined our system with BDD counter electrodes, into an integrated PTMA-co-PTMPMA//BDD configuration for the purpose of reactive separation and defluorination of GenX within a single device. BDD served as an efficient candidate for defluorination since it can generate hydroxyl radicals at high overpotentials that are able to cleave the C–F bond of the PFAS,^45–47 while displaying significant chemical and electrochemical stability.⁴⁸ Therefore, we evaluated an integrated electrochemical system for first electrosorbing GenX and later simultaneously defluorinating the PFAS during the release step at the counter electrode, as shown in Fig. 6c. We first adsorbed on PTMA-co-PTMPMA for 30 minutes by applying 0.8 V vs. Ag/AgCl, and then reversed the polarity and desorbed from the PTMA-co-PTMPMA electrode, simultaneously defluorinating with the help of BDD, by applying 10 mA cm⁻² under continuous stirring (500 rpm). Our results indicate gradual defluorination behaviour with time (Fig. 6b), and after 24 h operation at 10 mA cm⁻², our system was able to release adsorbed GenX completely, and achieve 100% defluorination efficiency.

Conclusions

Here, we demonstrated the effectiveness of an electrochemically-mediated system for the electrosorption of GenX, using a PTMA-co-PTMPMA redox-copolymer containing nitroxide and amine moieties. The electrochemical removal performance of the redox-copolymers was evaluated across a range of GenX concentrations, in different water matrices, pH values, and ionic strengths, proving the effectiveness of these tailored functional electrodes for the adsorption of GenX. In particular, our work highlights the enhancement of adsorption kinetics under electrochemical conditions, which showed >95% of GenX removal in 9 minutes versus 30 minutes for >95% removal at O.C. At different pH values, the adsorption mechanism could be ascribed to varying degrees of hydrophobic affinity or electrostatic attraction, depending on the protonation characteristics of both the electrode and the PFAS. The redox-electrodes were shown to release GenX and re-adsorb for sequential cycles without significant drops in uptake capacity. We also demonstrated the potential integration of the redox-electrodes with defluorination systems such as BDD for tandem removal and remediation of GenX for up to 100% defluorination after 24 hours. Finally, the redox-electrodes were translated to a flow cell system, confirming that the electrosorption and release of GenX could be modulated under continuous electrosorption conditions. We envision future studies to improve on electrochemical reactor engineering, such as optimization of the electrode architecture and flow-cell configuration to maximize mass transfer and enhance the electrosorption kinetics. Further mechanistic studies are also needed for studying the full pathways for short-chain degradation with different redox-electrode materials.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the University of Illinois, Urbana-Champaign (UIUC), the National Science Foundation under Grant #1931941, and the Illinois Innovation Network (IIN) seed grant. SEM and XPS analysis were carried out in the Frederick Seitz Materials Research Laboratory Central Research Facilities, University of Illinois. LC–MS was carried out in the School of Chemical Science (SCS) Mass Spectrometry Lab. The authors thank Angelique Klimek for assistance in electrode fabrication, Riccardo Candeago for assistance in preparing coated electrodes for flow cell experimentation, and Prof. Roland Cusick (CEE, UIUC) for the access to the UIUC CEE shared facilities. The authors would like to thank the NSF GRFP for fellowship funding to P. B. M, and the National Research Foundation of Korea (NRF) Ministry of Education for fellowship funding to K. K. (2020R1A6A3A03039138).
